Japan Power Cord 15 Amp 2 Wire Angle Plug, JIS 8303 Standard,AC Power Supply Cords, Custom Length,PSE JET Approved

  • Samples date: 7 Days,Free with freight collect
  • MOQ:5000 Pcs
  • Production order shipping date:20-25 days
  • Shipping Terms: By Air, Sea
  • Payment Terms: Wire Transfer, Paypal
  • Packing:Export cartons,pallets
Tags:
Share

Japan Power Cord  2 Wire Angle Plug Power Cord

  • Plug type: Type A,Japan Angle Plug
  • Standard:JIS 8303
  • Approvals:PSE, JET
  • Electricity:Max 15A,125V
  • Number of Poles and Wires:2 pole 2 wires
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • Termination Options:ROJ,IEC,terminations
  • Quality System:ISO9001:2008
  • Color:Custom color,white and black are normal
  • Outer Mold Material:PVC,Rubber
  • Plug Insert Material:PBT,ABS
  • Blade Material:Nickel coated Brass
  • Cable Specifications:Standard and custom made
  • Wire Outject Material:PVC,Rubber,TPE,Textile
  • Environmental Certifications:RoHS, REACH, PAHS
  • Model Number:FLD-105A

Plug standard JIS 8303, PSE, JET, 15 Amp Max 125 Volt AC, 2 Pole 2 Wire Non-Grounding, Type A Right Angle Plug; Connector Standards IEC 60320 (320) C-7,C-17,C17 right angle, Unterminated.  Connected with a two-wire ungrounded plug rated at max 15 Amp , 125 V defined by JIS 8303.

Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard are black and white as standard color. gray and custome color are  available. Custom length and shielded Japan AC power cord ,Japan AC power cables available. Terminated, custom stripping.

Available Opposite End

Normal Stripped, Splitter and ROJ

We manufacturers and supplies Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard,custom color,the other end can be stipped ,ROJ with custom length.

end-strippedCable-ROJ

Common Termination

Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.

Power Cord Terminals

IEC 60320 Connectors

Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard to IEC 320 C7, IEC C17 power supply cords are normal versions of Japan power Cord, AC power cords with IEC 320 conntors

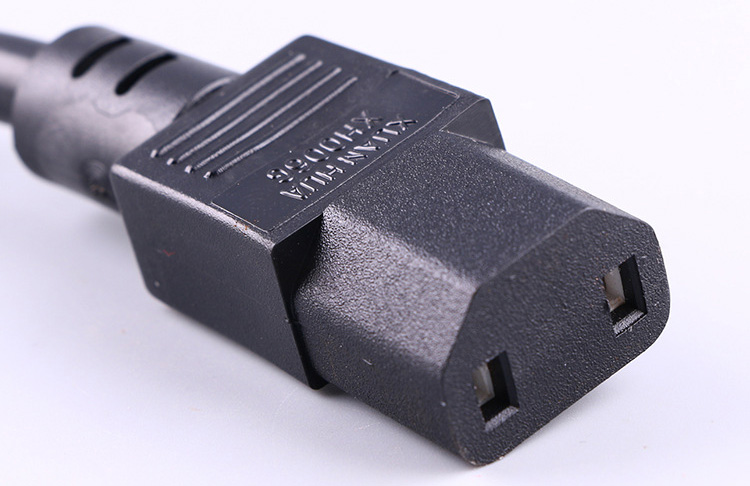

IEC 60320 C7 Connector

IEC 60320 C7 Connector

IEC 60320 C17 Connector

IEC 60320 C17 Connector

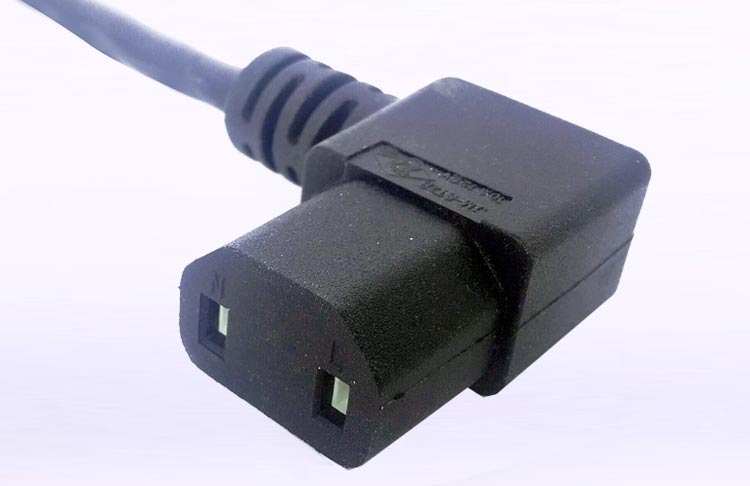

IEC 60320 C17 Connector Right Angle

IEC 60320 C17 Connector Right Angle

Power Cord Available Swtiches

Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard are used to molded with online switches for salt lamp power supply cords.

303 Switch

303 Switch

304 Switch

304 Switch

Gear Switch

Gear Switch

Dimmer Switch

Dimmer Switch

The color of online swtiches mostly white, black and transparent

power cord with swtichPower Cord with Switch

Package

Japan power cord 15 Amp 2 wire angle plug, JIS 8303 standard bulk packed with export cartons, pallets.

power supply cord packing

HKTC manufacturers and supplies electrical AC power supply cords for use in Japan and all Countries in the world. Our extensive and complete Japan power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Japan AC power cords as China leading Japan power cord manufacturer and supplier.all of our Japan power supply cords are are made of high quality approved by PSE JET with Rohs and Reach compliant.
