European Power Cord CEE7/17 EU Germany International VDE Certified CE Power Supply 16 Amp 2 Wire Plug

  • Samples date: 7 Days,Free with freight collect
  • MOQ:5000 Pcs
  • Production order shipping date:20-25 days
  • Shipping Terms: By Air, Sea
  • Payment Terms: Wire Transfer, Paypal
  • Packing:Export cartons,pallets
Tags:
Share

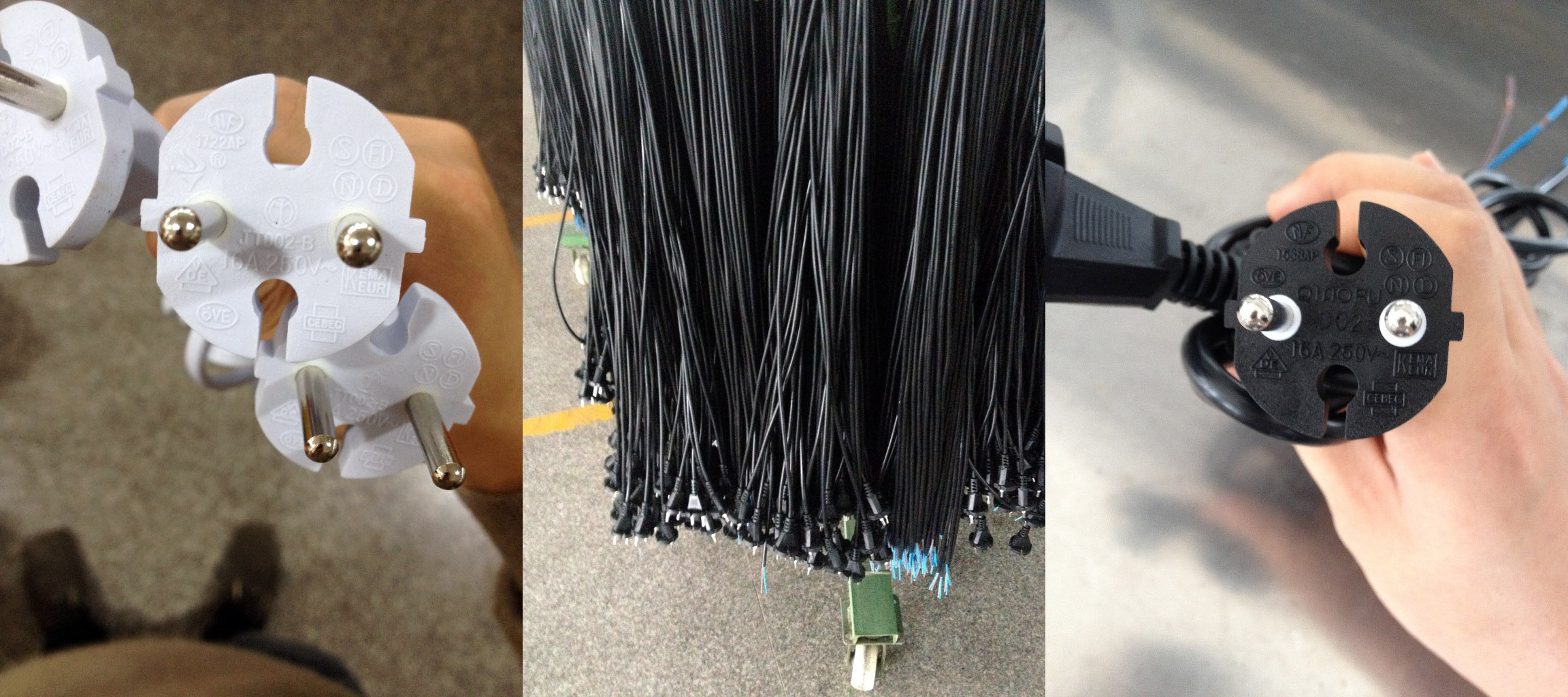

European Power Cord  CEE7/17

  • Plug type: Euro plug 2 wire
  • Standard: CEE7 standard sheet 7-17
  • Approvals:VDE,CEBEC,DEMKO,
    F1,IMQVDE,KEMA,NF,OVE,SEMKO
  • Electricity:16A,250V
  • Number of Poles and Wires:2 poles 2 wires
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options: ROJ, Termination, IEC 320 C7, C17
  • Quality System:ISO9001:2008
  • Color: White and black are normal, Custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Cable Specifications: Standard and custom made
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Environmental Certifications: RoHS, REACH, PAHS
  • Model Number:D02, JT002B,YB002

The EU German type Europlug with electrical rates 16 A, voltage 220V, according to the CEE7/17 (European plug) and IEC884-1 standard production made most molded with white, black color flat cables, Connector Standards IEC 60320 (320) C17, Unterminated, European CE VDE (European 16 A/ 250 V) and compatible types (Type C), connected with a two-wire ungrounded plug rated at 16 Amp, 250 V defined by CEE 7/17. The Europe AC plugs and Sockets are used in most European countries are the most popular power plugs types.

Euro plug CEE7/17 power cords are black and white as a standard color. gray and custom color are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.

Europe power cord 16 Amp ungrounded plugEuropean Power Cord CEE7-17EU Power Cable 16A 2 Wire VDE CE ROHS REACH China Manufacturer

The European German standard VDE certified the maximum current 16A, voltage 220V, according to the German SCHUKO CEE7/17  and IEC884-1 standard production, suitable for most the small electrical appliances using the two phases European power line, the European type plug connecting the European plug connection with the household appliances.

Cables Specifications Available

H03VVH2-F 2x 0,5 mm² H03VVH2-F 2x 0,75 mm²
H05VVH2-F 2x 0,75 mm² H05VVH2-F 2x 1,0 mm²
H03VV-F 2x 0,5 mm² H03VV-F 2x 0,75 mm² H05VV-F 2x 0,75 mm² H05VV-F 2x 1,0 mm² H05VV-F 2x 1,5 mm²
H05RR-F 2x 0,75 mm² H05RR-F 2x 1,0 mm² H05RR-F 2x 1,5 mm² H05RN-F 2x 0,75 mm² H05RN-F 2x 1,0 mm²
H07RN-F 2x 1,0 mm² H07RN-F 2x 1,5 mm²
H03RT-H 2x 0,75 mm² H03RT-H 2x 1,0 mm²
H05V2V2-F 2x 0,75 mm² H05V2V2-F 2x 1,0 mm² H05V2V2-F 2x 1,5 mm²
H05V2V2H2-F 2×0,75 mm²

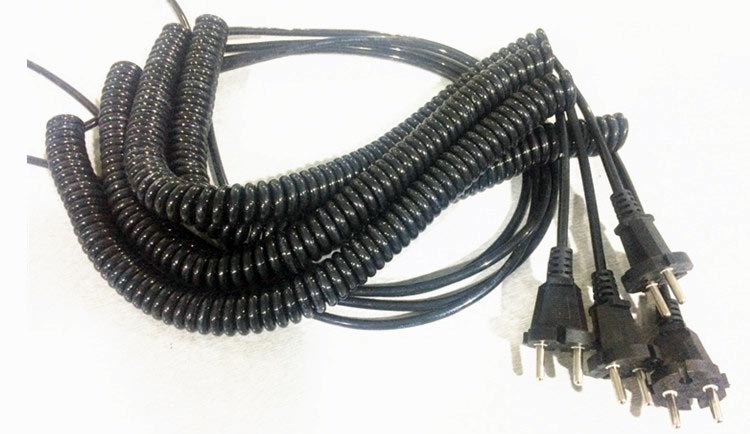

Spiral Powe Cords

Spiral cable PU / PUR / TPU / TPE / PE / PVC coiled cord jacket variety of colors as red, orange, black, white for Vehicle Equipment, generator, Hospital medical machine and other electric spiral cable applications, we have many years experienced in manufacturing spiral cables providing high quality and competitive price of retractable cable, spiral coiled cable, spiral cord, spring cable, spring wire and other custom flexible cable volume, coiled flexible cable, Long term supply coiled power cables,new listing high flexible PU / TPUR / PUR spiral power cords extension cable products.

EU Extension Cord European Germany 2-Wire Ungrounding Spiral Cable

Approvals:

European Power Cord (Schuko Power Cord) CEE7/16 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.

Available Opposite End

Normal Stripped, Splitter and ROJ

We manufacturers and supplies Europe power cord 2 wire 16A plug AC 2 Pole 2 Wire Non-Grounding Plug, custom color, the other end can be stripped, ROJ with custom length.

end-strippedCable-ROJ

Common Termination

Europe power cord 2 wire 16A plug one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or  nylone insulated.

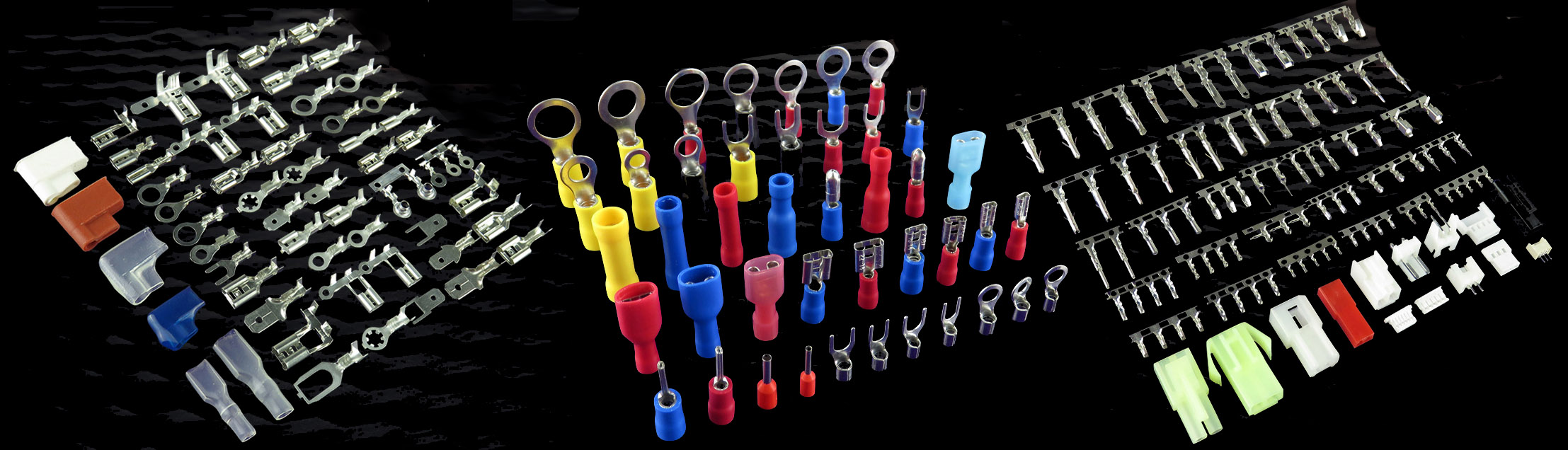

Power Cord Terminals

IEC 60320 Connectors

Europe power cord 2 wire 16A plug to IEC C17 power supply cords are normal versions of European power Cord, EU AC power cords with IEC 320 connectors.

European power cords IEC 60320 C17Europe power supply cord IEC 320 C17 right angle receptacle 15M orangeIEC C17 Right Angle Power Cords Orange

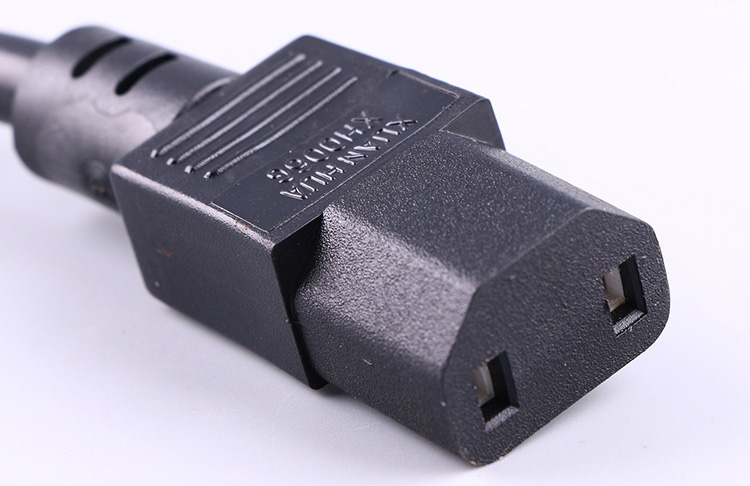

IEC 60320 C17 Connector

IEC 60320 C17 Connector

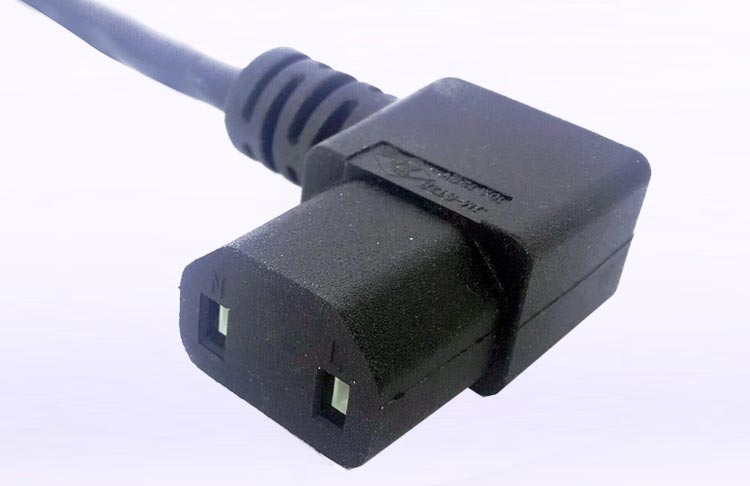

IEC 60320 C17 Connector Right Angle

IEC 60320 C17 Connector Right Angle

Vorwerk Kobold Vaccum Cleaner Connector

Europe power cord 2 wire 16A plug to Vorwerk Kobold VK130/131, 135/136, VK140/141 connector

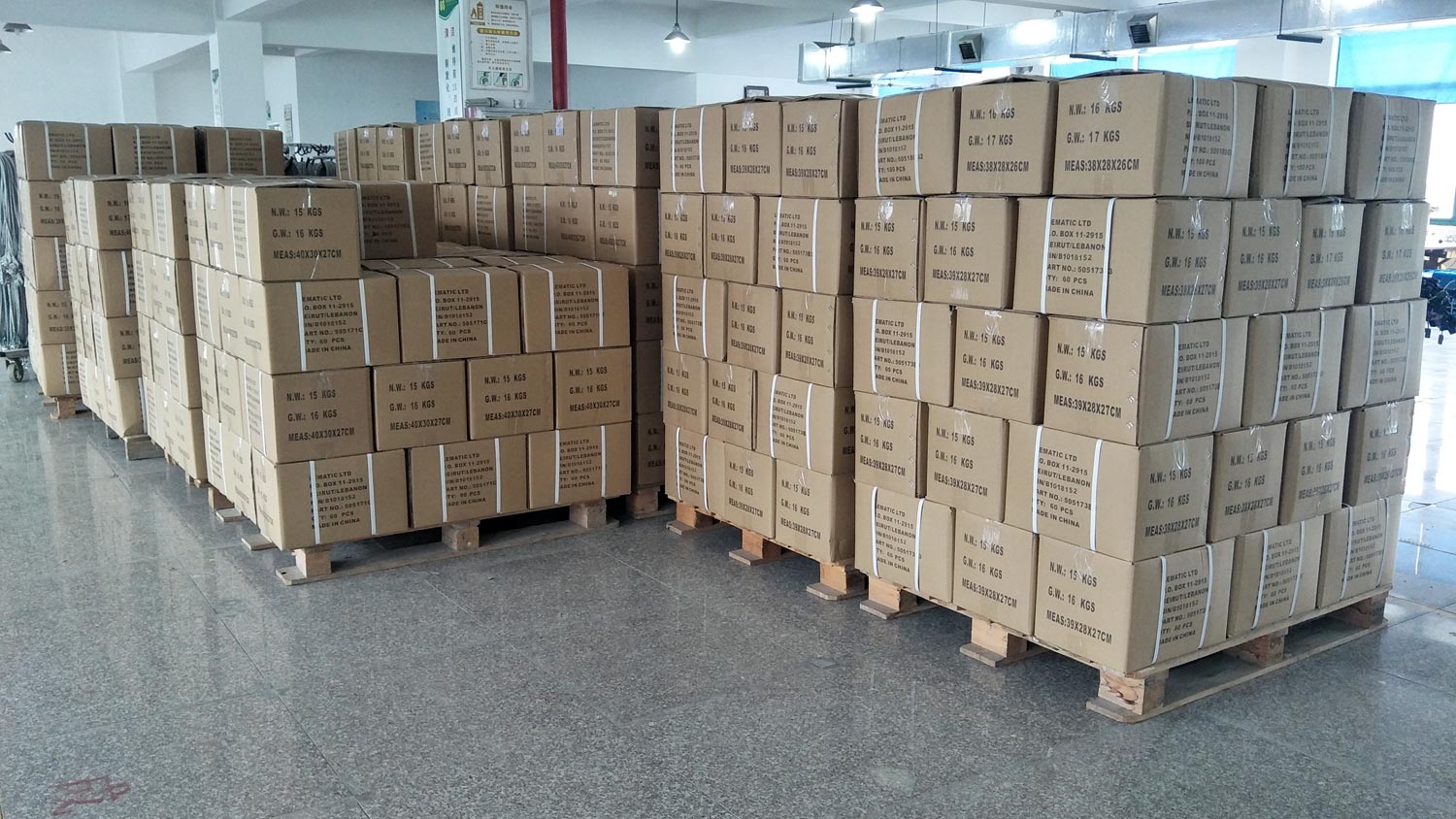

Package

Europe power cord 2 wire 16A plug bulk packed with export cartons, pallets.

power supply cord packing

HKTC manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are are made of high quality approved by VDE, CE with Rohs and Reach compliant.
