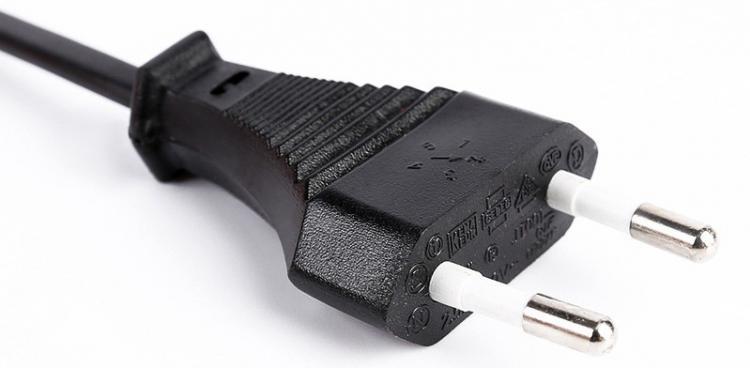

European Power Cord (Schuko Power Cord) CEE7/16
- Plug type: Euro plug 2 wire
- Standard: CEE7 standard sheet 7-16
- Approvals:VDE,CEBEC,DEMKO,
F1,IMQVDE,KEMA,NF,OVE,SEMKO - Electricity:2.5A,250V
- Number of Poles and Wires:2 poles 2 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination, IEC 320 C7, C17
- Quality System:ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: D01, JT001, YB001
The EU German type Europlug with electrical rates 2.5A, voltage 220V, according to the CEE7/16 (European plug) and IEC884-1 standard production made most molded with white,black color flat cables, Connector Standards IEC 60320 (320) C7 figure 8 connector,C17,Unterminated,European CE VDE (European 2.5 A/ 250 V) and compatible types (Type C), connected with a two-wire ungrounded plug rated at 2.5 Amp , 250 V defined by CEE 7/16. The Europe AC plugs and Sockets are used in most European countries are the most popular power plugs types.
Euro plug CEE7/16 power cords are black and white as a standard color. gray and custom color are available. Custom length and shielded Europe AC power cord, Europe AC power cables available. Terminated, custom stripping.
The European German standard VDE certified the maximum current 2.5A, voltage 220V, according to the German SCHUKO CEE7/16 (European plug) and IEC884-1 standard production, suitable for most the small electrical appliances using the two phases European power line, the European type plug connecting the European plug connection with the household appliances.
Cables Specifications Available
H03VVH2-F 2x 0,5 mm²(max. 2 m) , H03VVH2-F 2x 0,75 mm²
H05VVH2-F 2x 0,75 mm² , H05VVH2-F 2x 1,0 mm²
H03VV-F 2x 0,5 mm²(max. 2 m) , H03VV-F 2x 0,75 mm²
H05VV-F 2x 0,75 mm² ,H05VV-F 2x 1,0 mm² ,H05VV-F 2x 1,5 mm²
H05RR-F 2x 0,75 mm² , H05RR-F 2x 1,0 mm² , H05RR-F 2x 1,5 mm²
H05RN-F 2x 0,75 mm² , H05RN-F 2x 1,0 mm²
H07RN-F 2x 1,0 mm² , H07RN-F 2x 1,5 mm²
H03RT-H 2x 0,75 mm² , H03RT-H 2x 1,0 mm²
H05V2V2H2-F 2x 0,75 mm² , H05V2V2H2-F 2x 1,0 mm²
Approvals:
European Power Cord (Schuko Power Cord) CEE7/16 EU Germany International VDE Certified CE Power Supply Plug accords with Belgium CEBEC, Denmark DEMKO, Finland F1, Italy IMQ, Germany VDE, Holland KEMA, France NF, Austria OVE, Switzerland SEMKO approvals. RoHS and REACH environmental certifications.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Euro plug CEE7/16 power cord AC 2 Pole 2 Wire Non-Grounding Plug, custom color, the other end can be stripped, ROJ with custom length.
Common Termination
Euro plug CEE7/16 power cords one end is molded with CEE7 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.
IEC 60320 Connectors

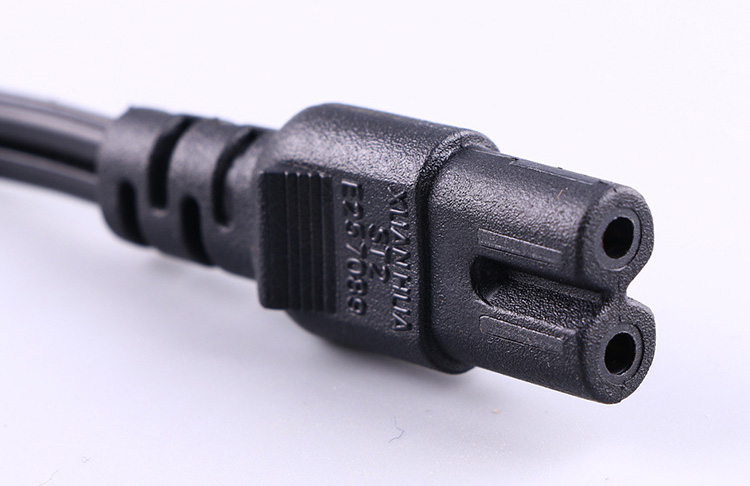

Euro plug CEE7/16 power cords to IEC 320 C7, IEC C17 power supply cords are normal versions of Europe power Cord, AC power cords with IEC 320 conntors

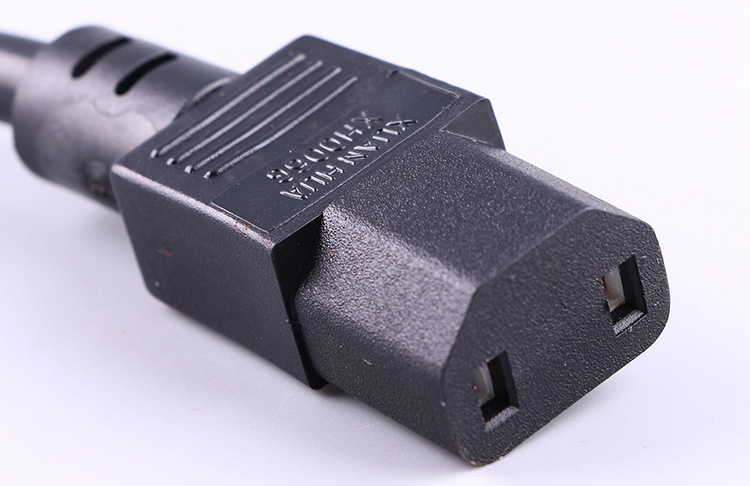

IEC 60320 C17 Connector

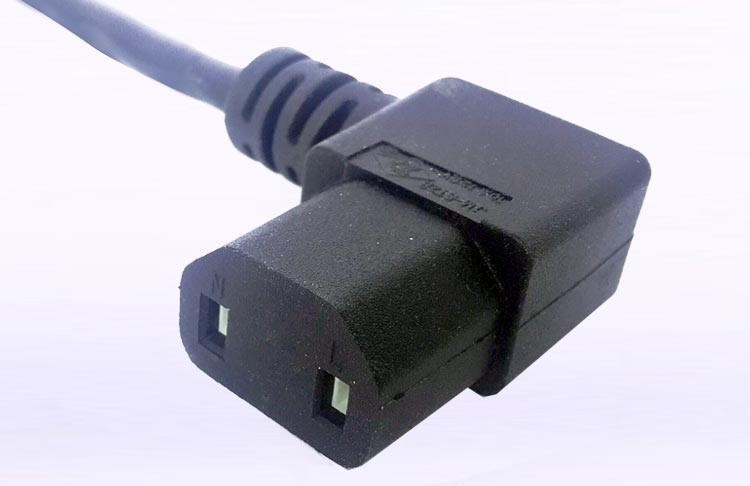

IEC 60320 C17 Connector Right Angle
Power Cord Available Switches
Euro plug CEE7/16 power cord are used to molded with online switches for salt lamp power supply cords.
303 Switch
304 Switch
Gear Switch
Dimmer Switch
The color of online swtiches mostly white, black and transparent

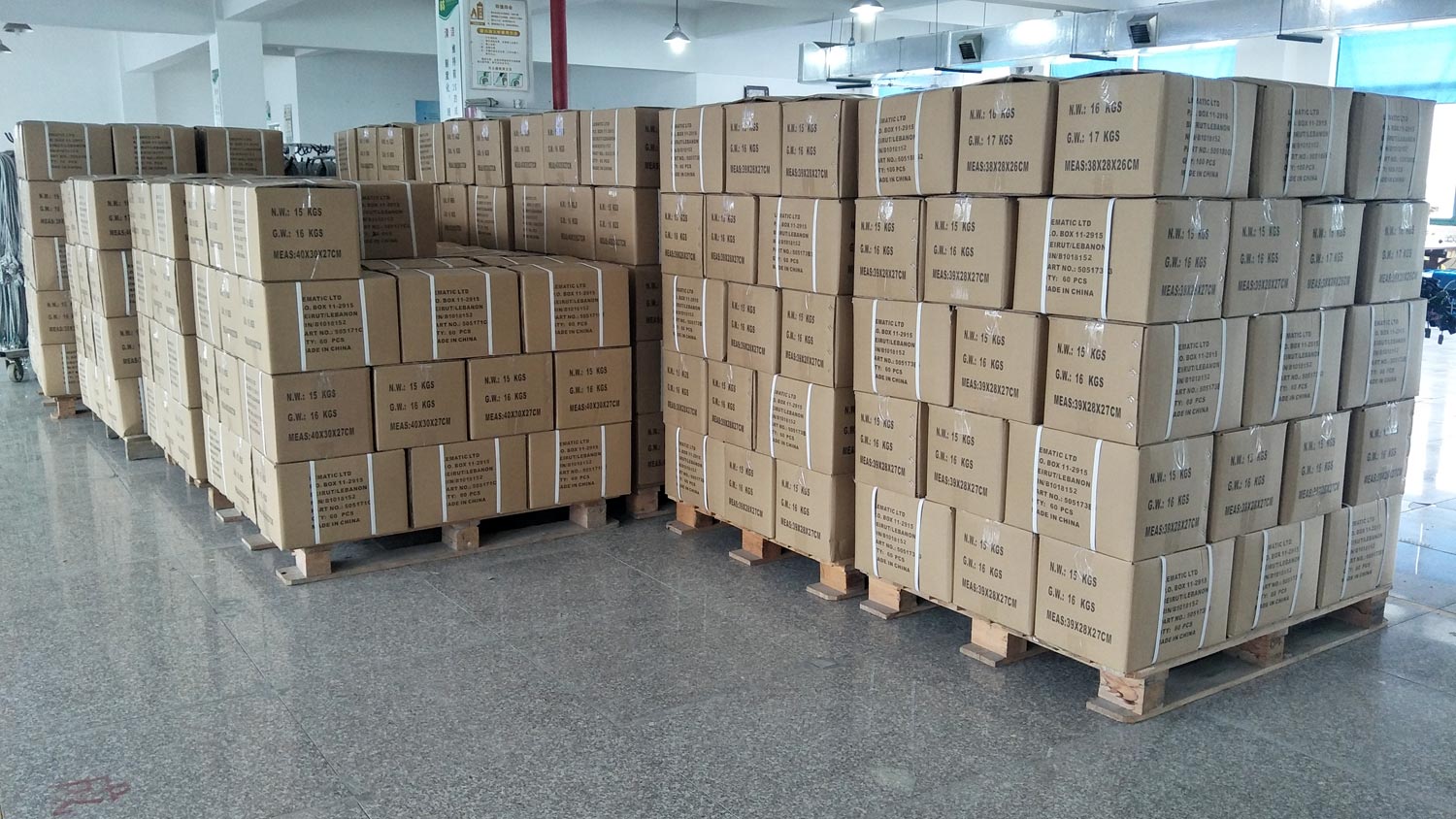

Package
Euro plug CEE7/16 power cord Bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in European and all Countries in the world. Our extensive and complete Europe power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Europe AC power cords as China leading Europe power cord manufacturer and supplier.all of our Europe power supply cords are made of high quality approved by VDE, CE with Rohs and Reach compliant.
