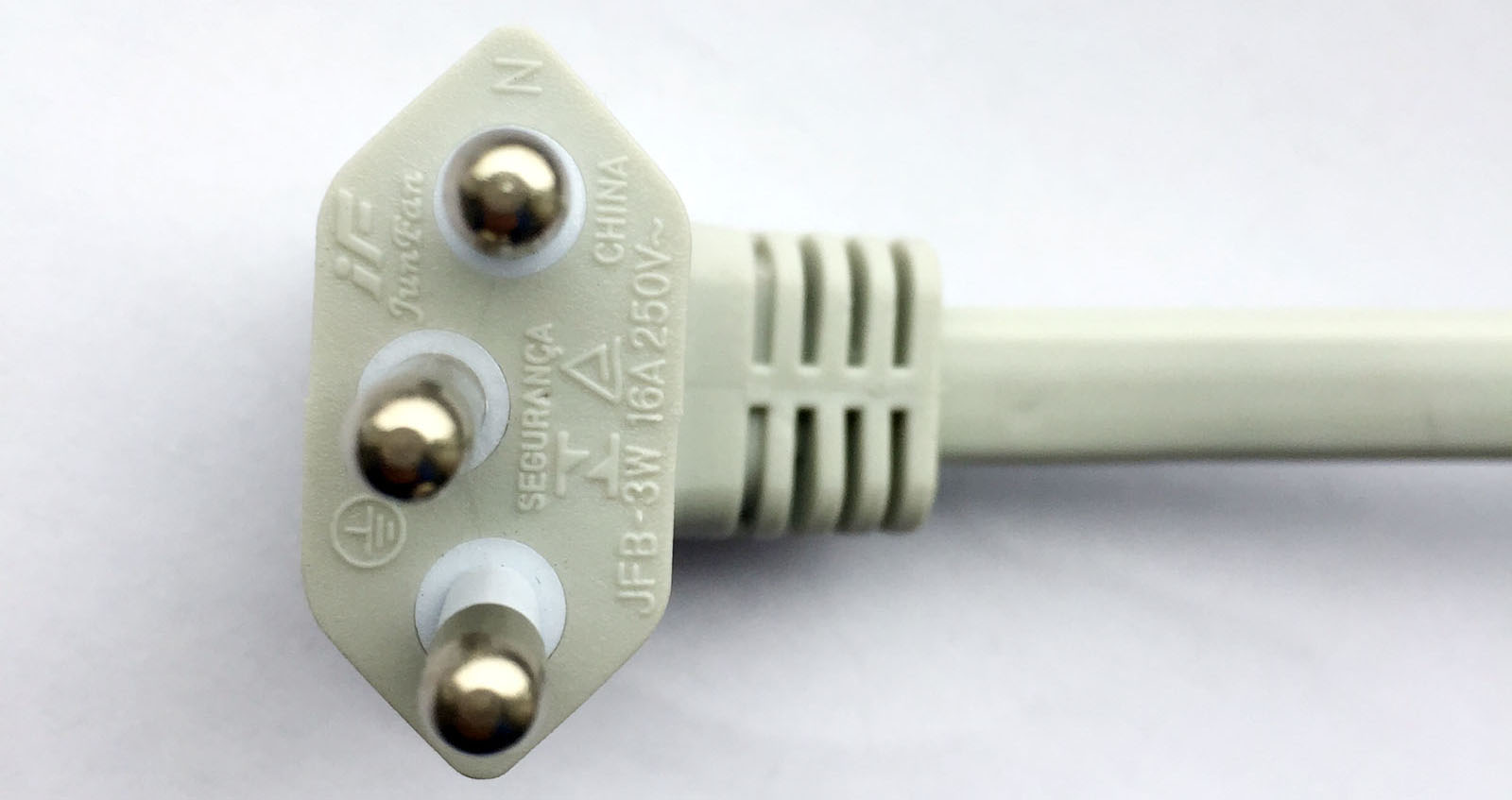

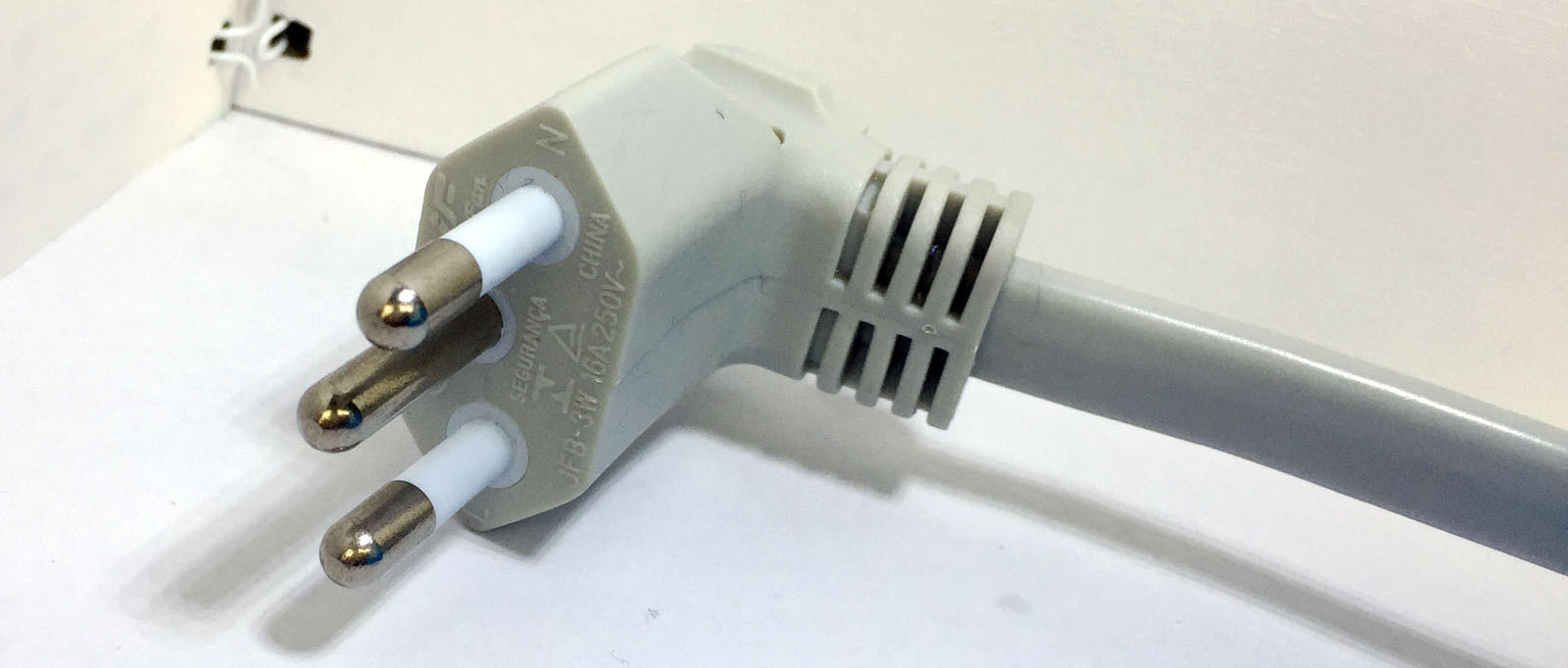

Brazil Power Cord Right Angle Plug Max 20 Amp in Custom Long,Color
- Plug type: Brazil 3 wire angle plug
- Standard:NBR 14136
- Approvals:Inmetro,TUV
- Electricity:2.5A,10A,12A,16A,20A,250V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options:ROJ, Termination, IEC connectors
- Quality System:ISO9001:2008
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:JFB-3W
NBR 14136 Brazil Power Cord Plug,2.5 Amp ,10Amp,12Amp,16Amp an Max 20 Amp, 250 Volt AC, 2 Pole 3 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5, C-15, Unterminated. Brazil NBR 14136 (Brazilian 10A,12A,16A,20A / 250 V) and compatible types (Type N), connected with a three-wire grounding plug max rated at 20 A , 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are moslty used in Brazil only.
Brazil Type N power cords are black, white as standard color. Brazil power cords in gray or custom colors are special order. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-15 connectors with high temperature available on some Brazil AC power cords.
Cable Standards Brown, Blue (2 wire) inner leads with below available standard flexible cables
| Electrical Rating (Amps) | Wire Styles | Conductor Normal Area |
| 2.5 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 | 3×0.5mm2 |
| 10 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 53 | 3×0.75mm2 |
| Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 3×0.75mm2 or 3×1.0mm2 | |
| Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57 | ||
| Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57 | ||
| 12 | Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 3×1.0mm2 |
| Cabo Flexivel Circular 500V H05VVH2-F 60227 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57 | ||
| Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66 | ||
| Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57 | ||
| 16 | Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 3×1.5mm2 |
| Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57 | ||
| Cabo Flexivel Circular 750V H07RN-F 60245 IEC 66 | ||
| Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57 | ||
| 20 | Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 3×2.5mm2 |
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding,the other end can be stipped ,ROJ with custom length.
Common Termination

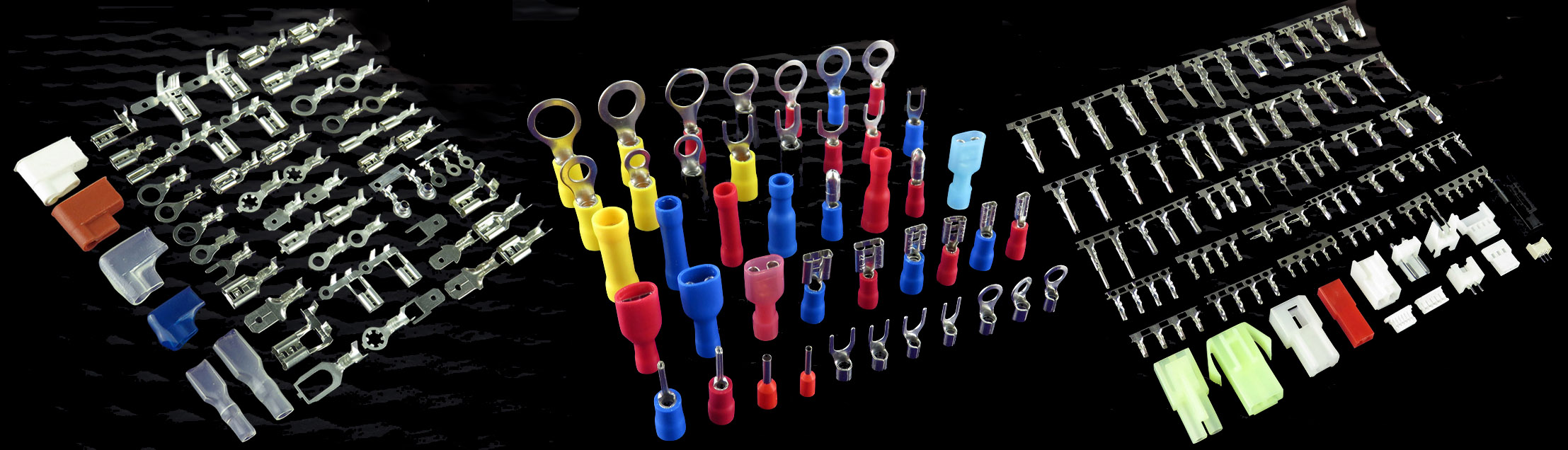

Brazil power cord right angle plug, one end is molded with NBR 14136 standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
IEC 60320 Connectors
Brazil power cord right angle plug to IEC 320 C5 laptop, Brazil plug to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of Brazil ac power cords with IEC connectors.

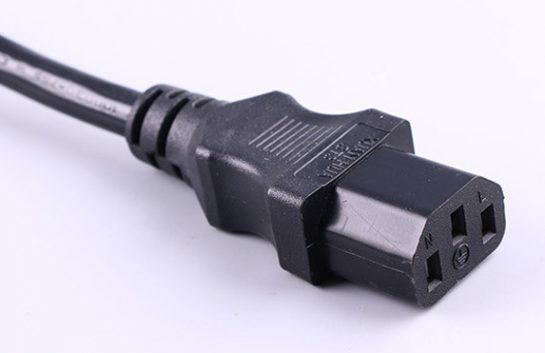

IEC 60320 C13 Power Cord Straight

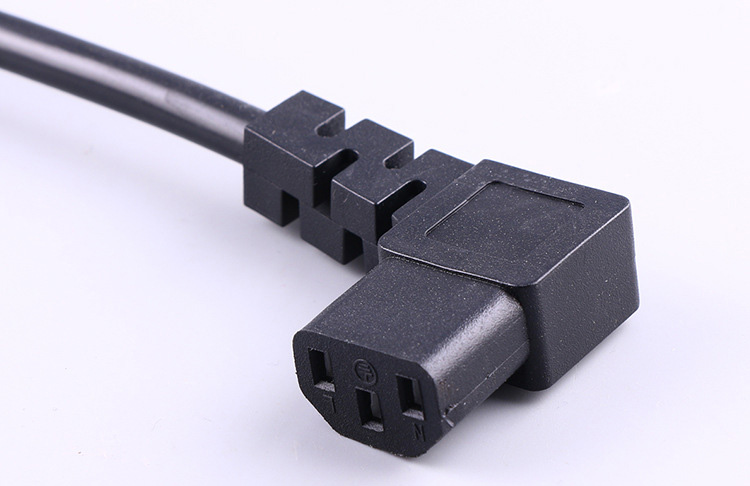

IEC 60320 C13 Power Cord Right Angle

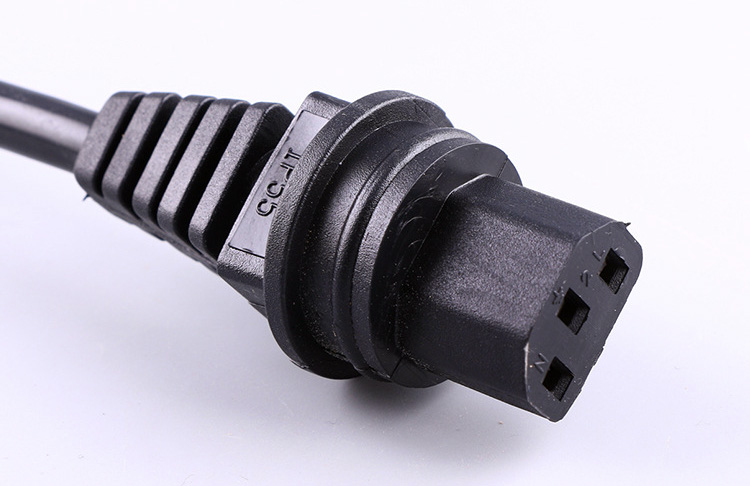

IEC 60320 C13 Power Cord Waterproof

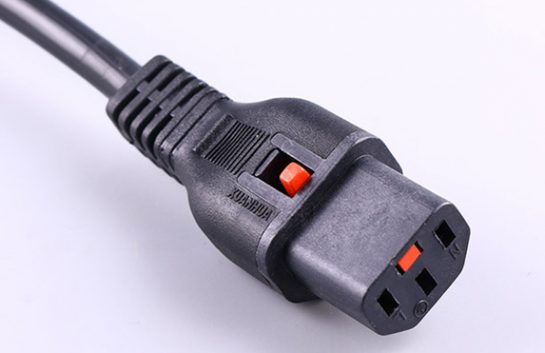

IEC 60320 C13 Power Cord Locking

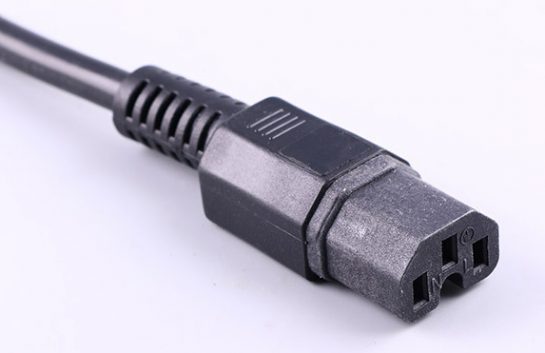

IEC 60320 C15 Power Cord

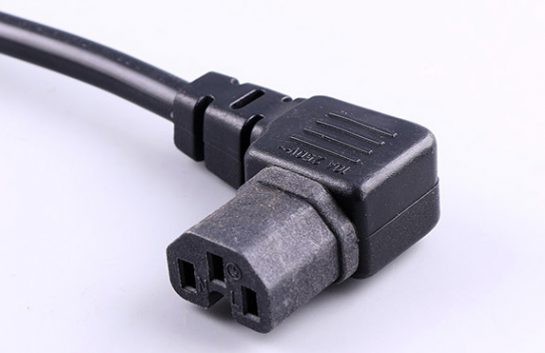

IEC 60320 C15 Power Cord Right Angle

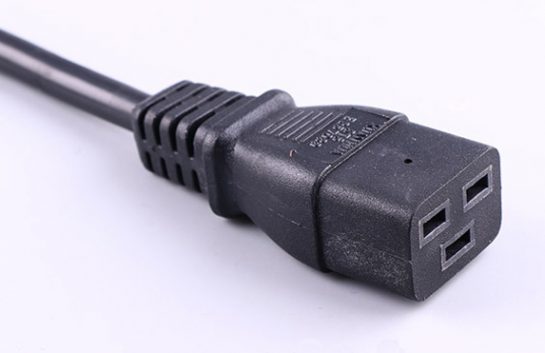

IEC 60320 C19 Power Cord

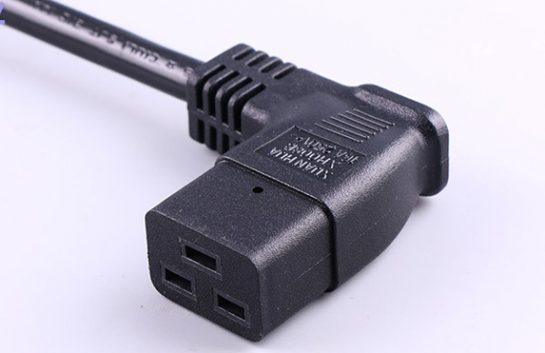

IEC 60320 C19 Power Cord Right Angle
Package

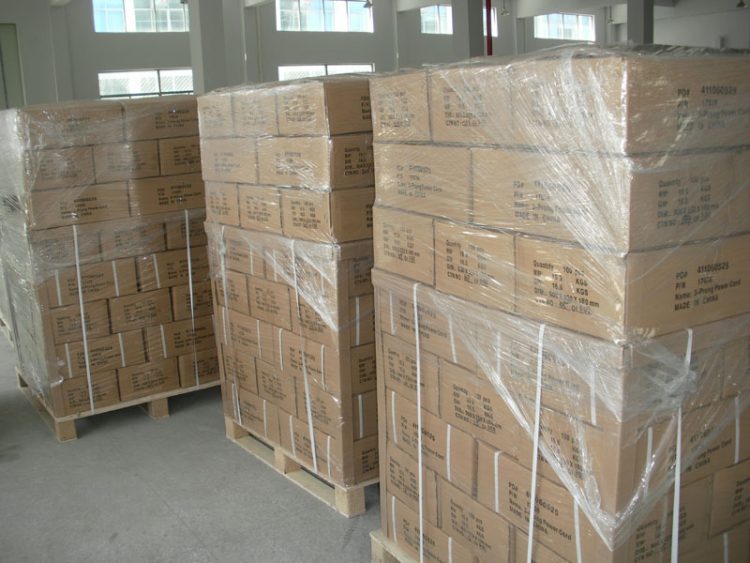

Brazil power cord right angle plug Bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for Brazil AC power cords as China leading Brazil power cord manufacturer and supplier.all of Brazil AC power cables are approved by Inmetro or TUV and Rohs / Reach compliant.
