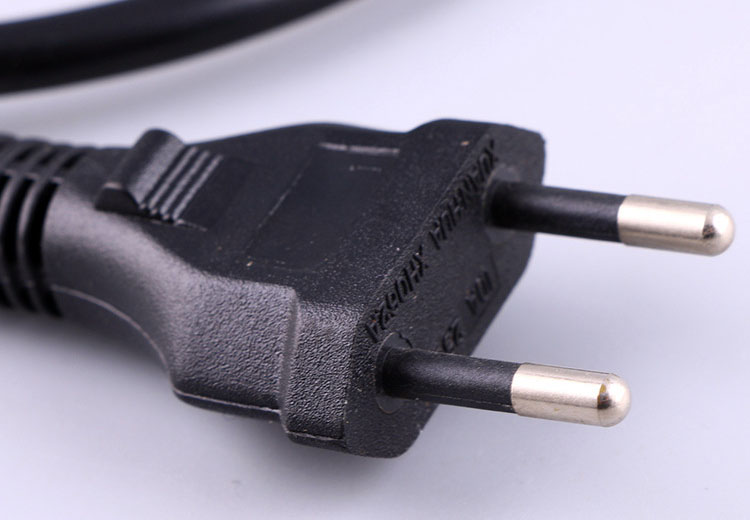

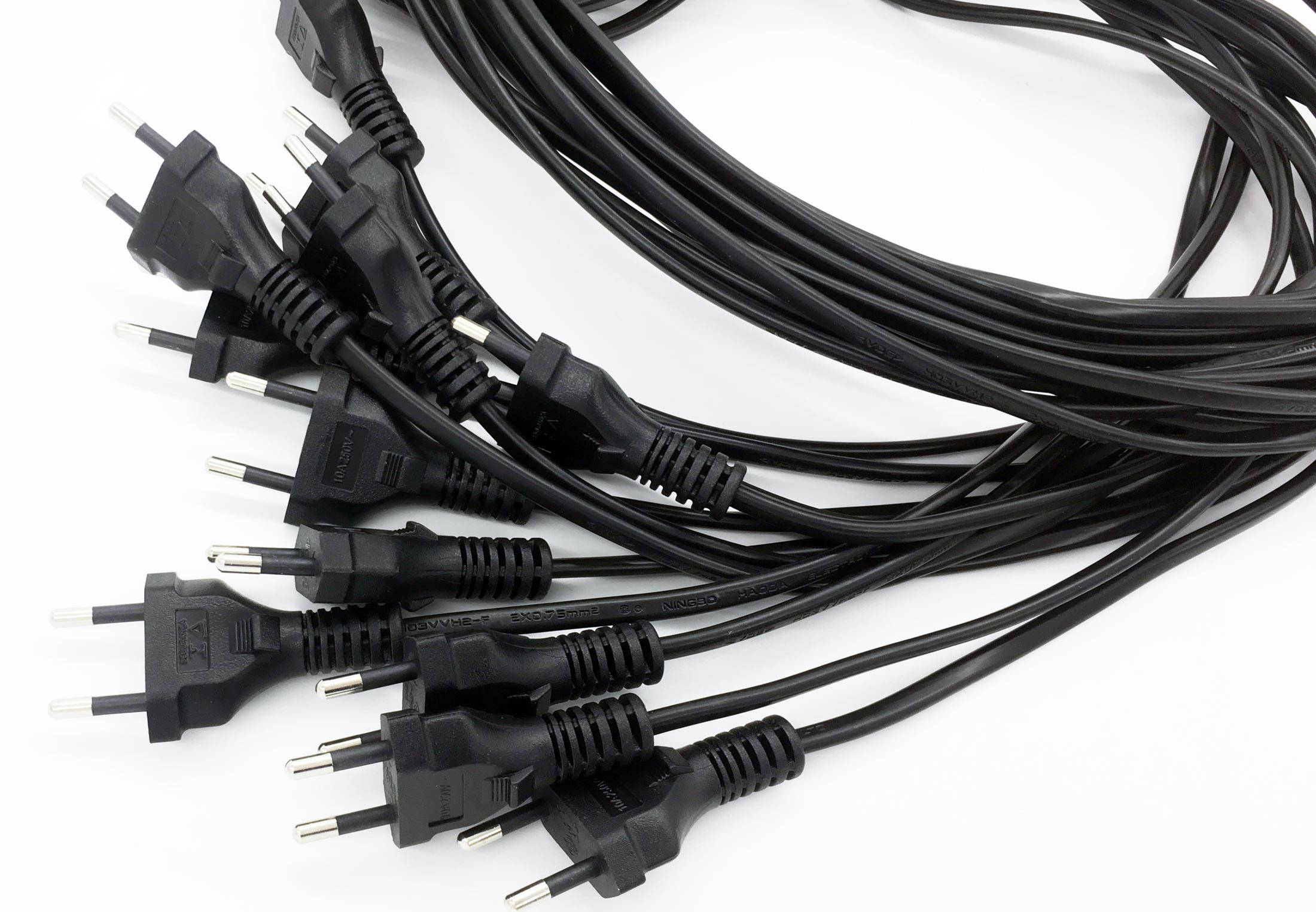

Brazil power cord NBR 6147 Plug, 2 Pole 2 Wire Non-Grounding Custom Length Cable
- Plug type: Brazil 2 wire plug
- Standard: NBR 6147
- Approvals: TUV
- Electricity:2.5 Amp , 10A,250V
- Number of Poles and Wires:2 poles 2 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination, IEC connectors
- Quality System: ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: D14

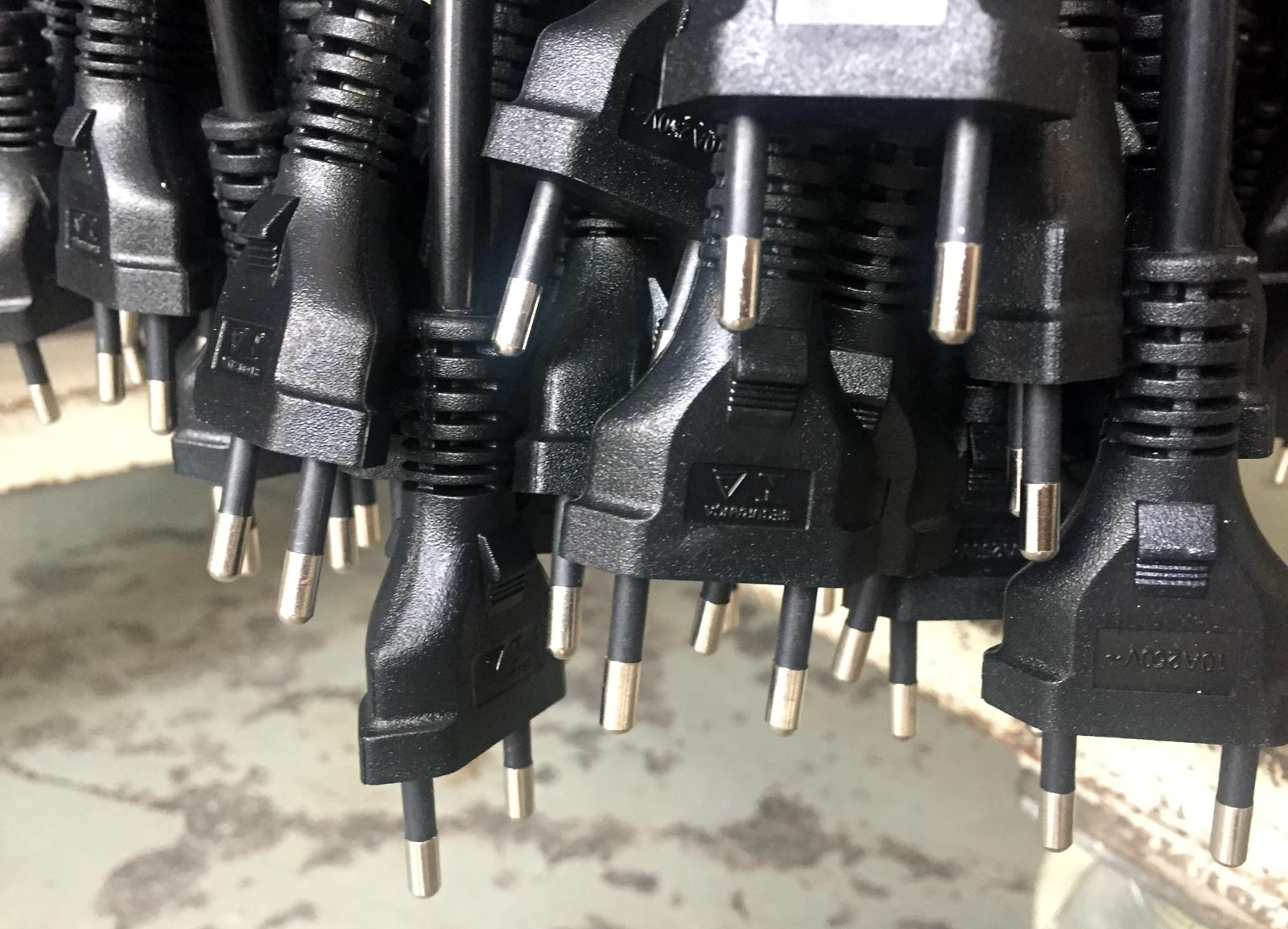

NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding Brazil Power Cords, Power Supply Cord Sets to Connector Standards IEC 60320 (320) C-7, C17, Unterminated. Brazil NBR 6147 (Brazilian 2.5A, 10A / 250 V) and compatible types (Type N), connected with a two-wire ungrounded plug rated at 10 A, 250 V defined by Inmetro, TUV. The Brazil AC plugs and Sockets are mostly only used in Brazil

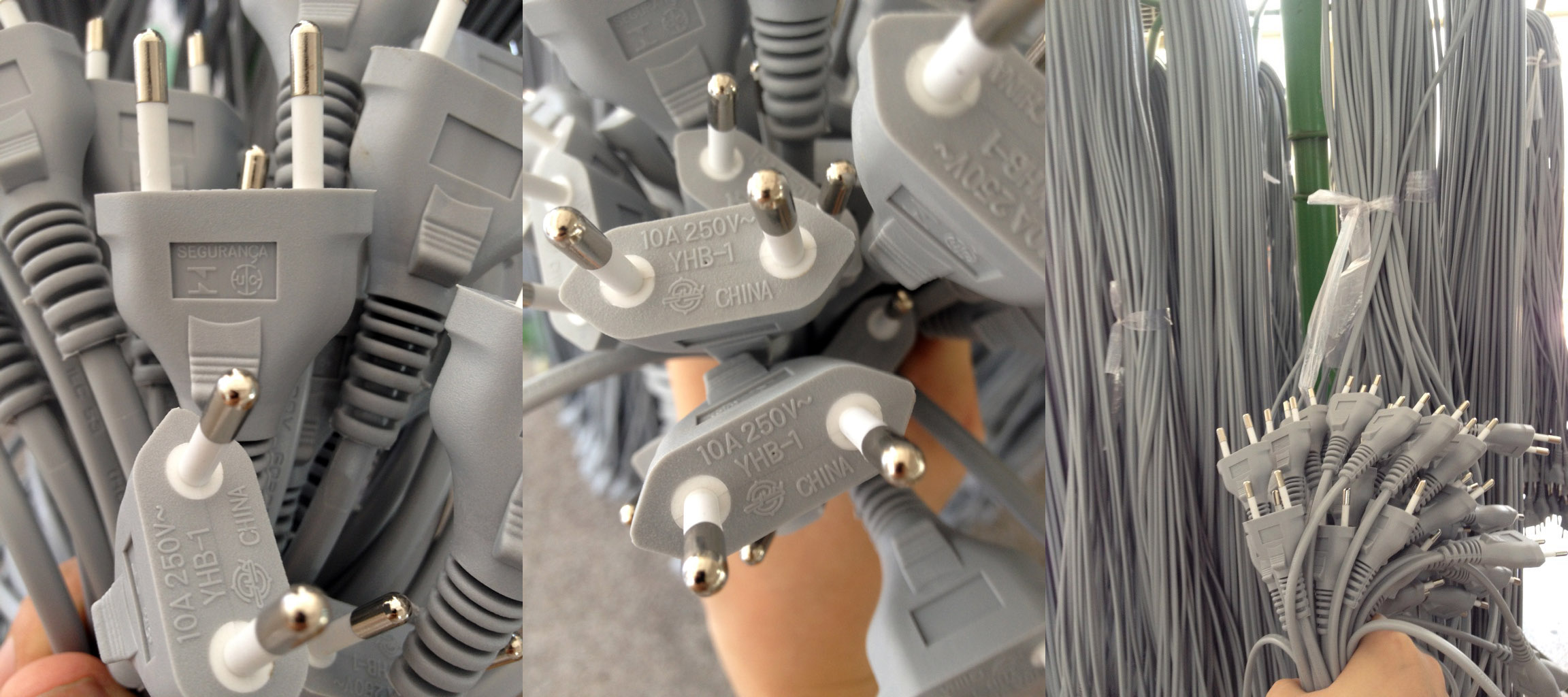

Brazil Type N power cords are black, white as a standard color. Brazil power cords in gray or custom colors are special orders. Custom length and shielded Brazil AC power cables available. Terminated, custom stripping, hanked Brazil cords available. IEC 60320 C-7, C17 connectors available on some Brazil AC power cords.
Cable Standards Brown, Blue (2 wire) inner leads with below available standard flexible cables
| Electrical Rating Amps |
Cable Type | Conductor Normal Area |
| 2.5 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 | 2×0.5mm2 |
| Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52 | ||
| 10 | Cabo Flexivel Circular 300V H03VV-F 60227 IEC 52 | 2×0.75mm2 |
| Cabo Flexivel Circular 300V H03H2VV-F 60227 IEC 52 | ||
| Cabo Flexivel Circular 500V H05VV-F 60227 IEC 53 | 2×0.75mm2 or 2×1.0mm2 | |
| Cabo Flexivel Circular 500V H05H2VV-F 60227 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RR-F 60245 IEC 53 | ||
| Cabo Flexivel Circular 500V H05RN-F 60245 IEC 57 | ||
| Cabo Flexivel Circular 500V H05V2V2-F 60245 IEC 57 |
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacture and supply NBR 6147 (Non-Polarized) Brazil Power Cord Plug, 2.5 Amp, 10 Amp 250 Volt AC, 2 Pole 2 Wire Non-Grounding, the other end can be stripped, ROJ with custom length.

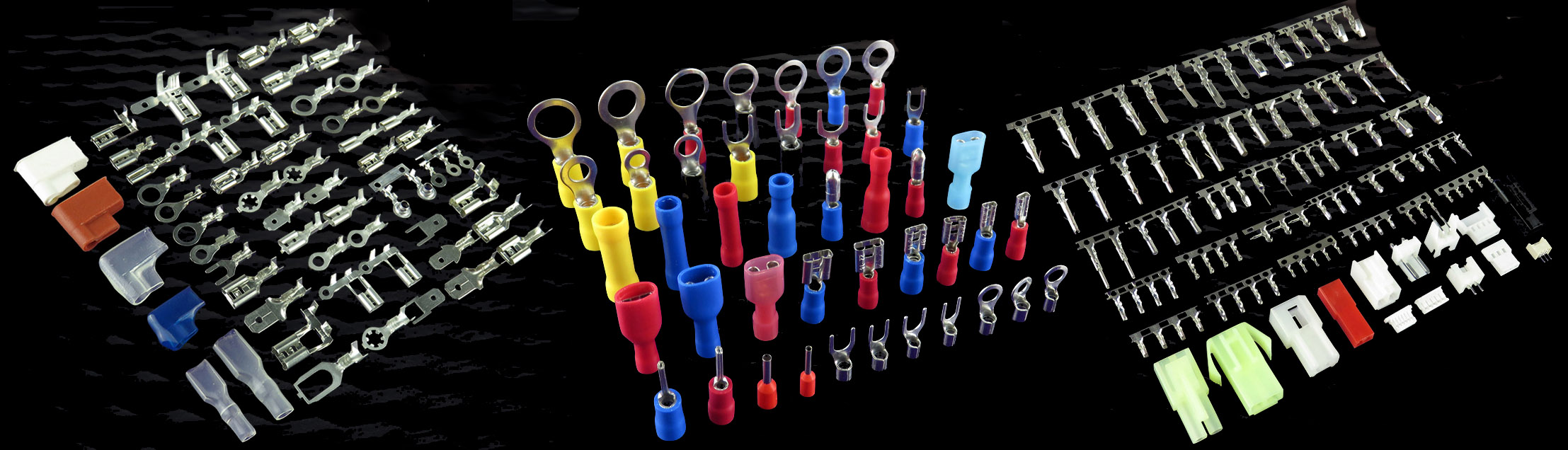

Common Termination
Brazil Power Cord NBR 6147, one end is molded with AS standard plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink, or nylon insulated.
IEC 60320 Connectors
Brazil Power Cord NBR 6147 to IEC 320 C7, Brazil plug to IEC C17 power supply cords are normal versions of Brazil AC power cables, AC power cords with IEC 320 connectors
Brazil power cord IEC 320 C7

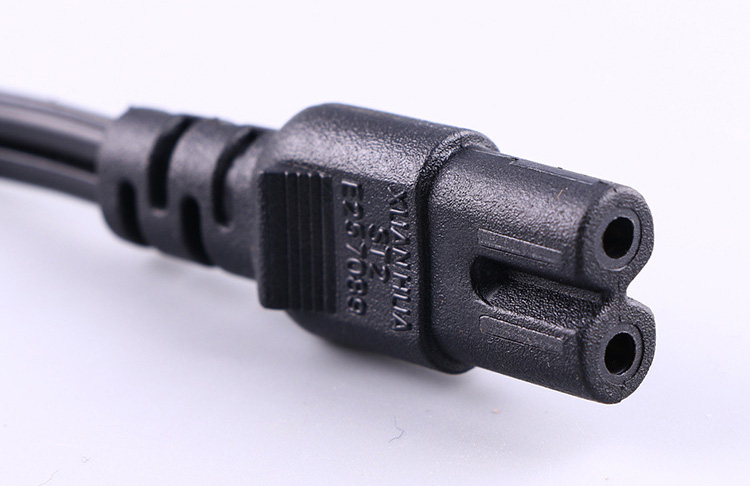

IEC 60320 C7 Connector

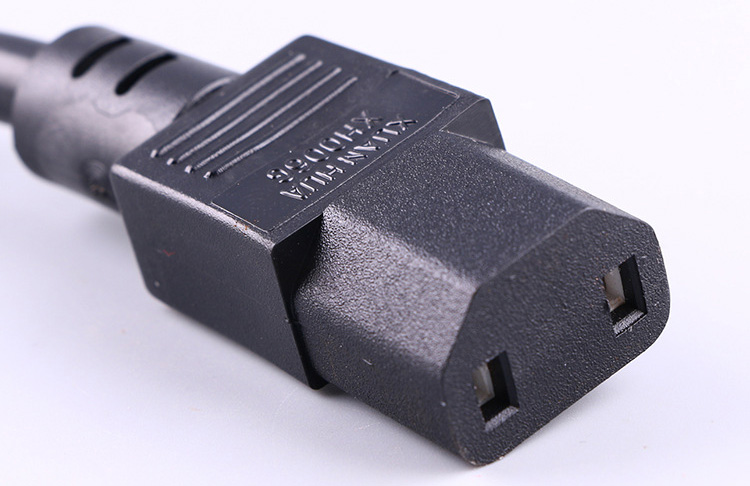

IEC 60320 C17 Connector

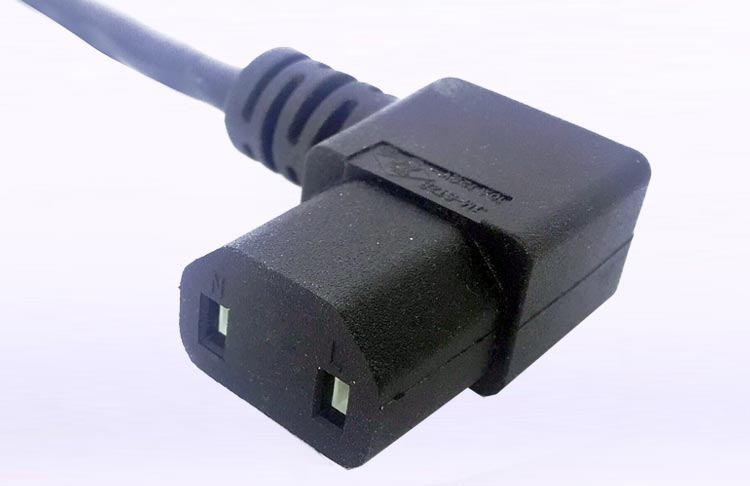

IEC 60320 C17 Connector Right Angle

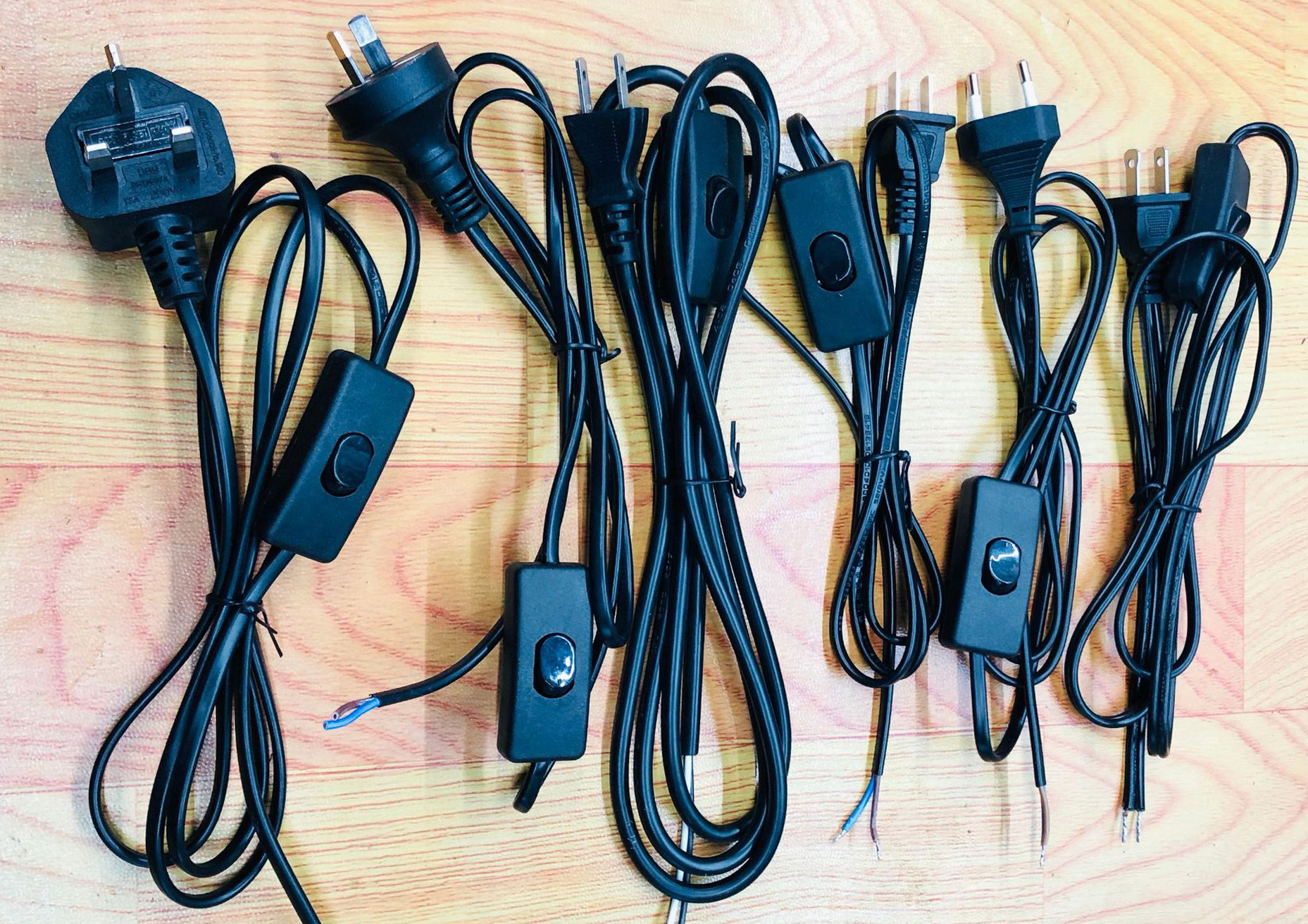

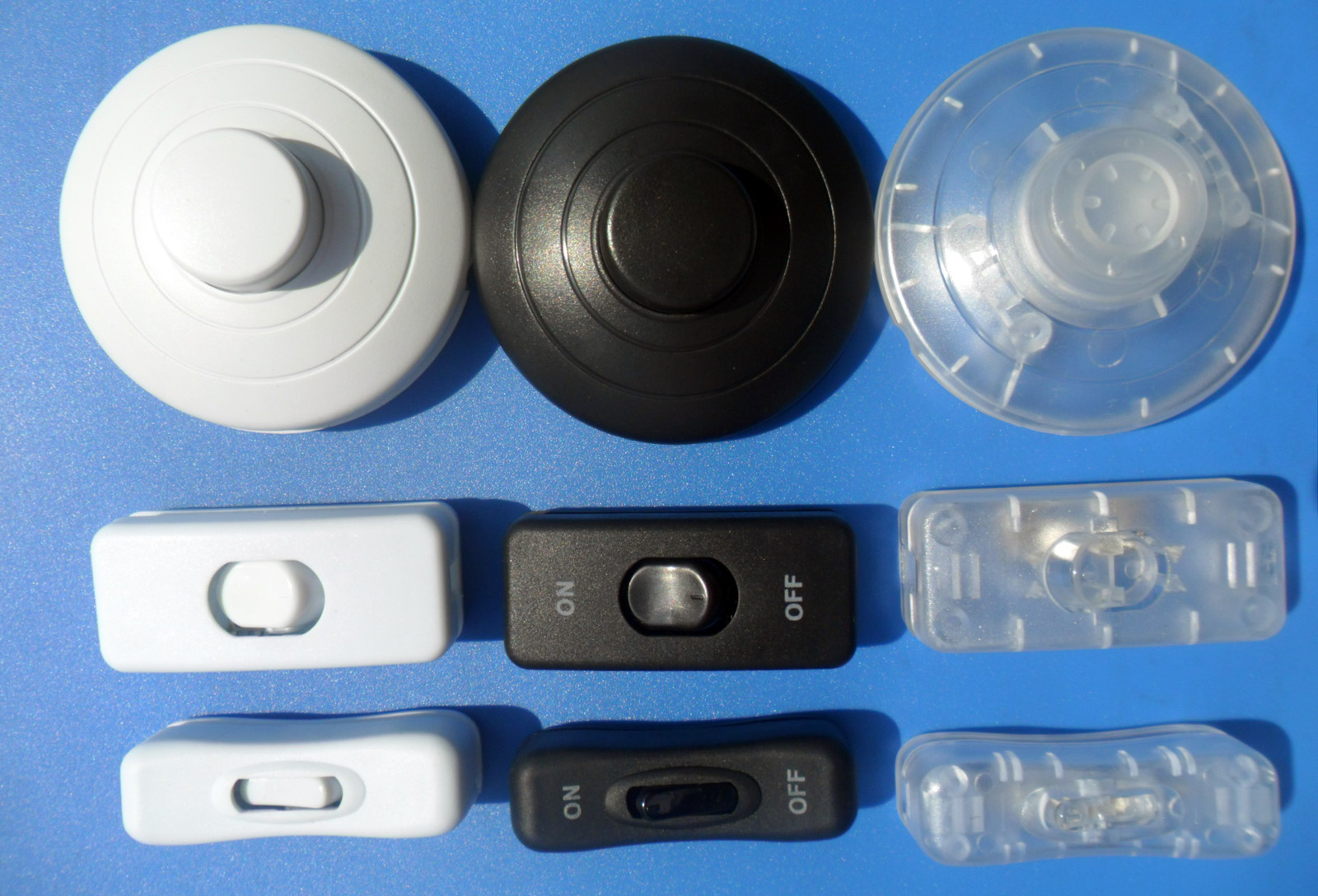

Power Cord Available Switches
Brazil Power Cord NBR 6147 is used to molded with online switches for salt lamp power supply cords.

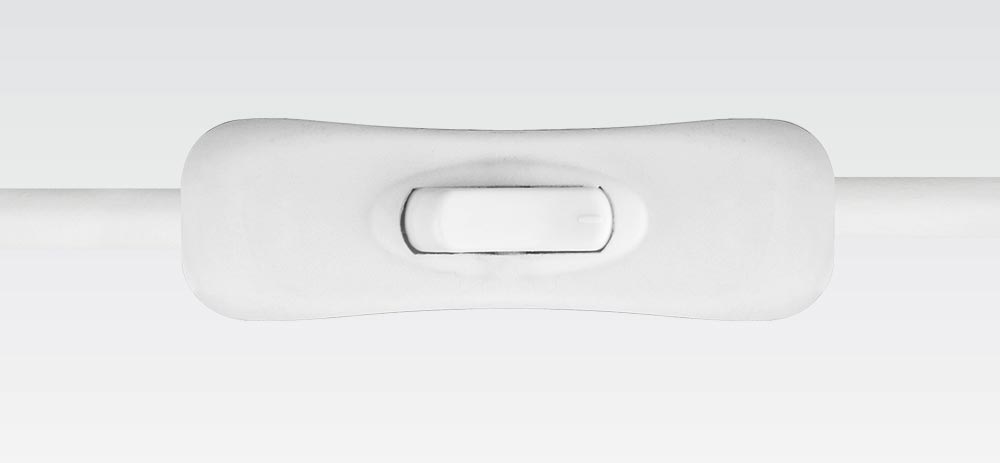

303 Switch

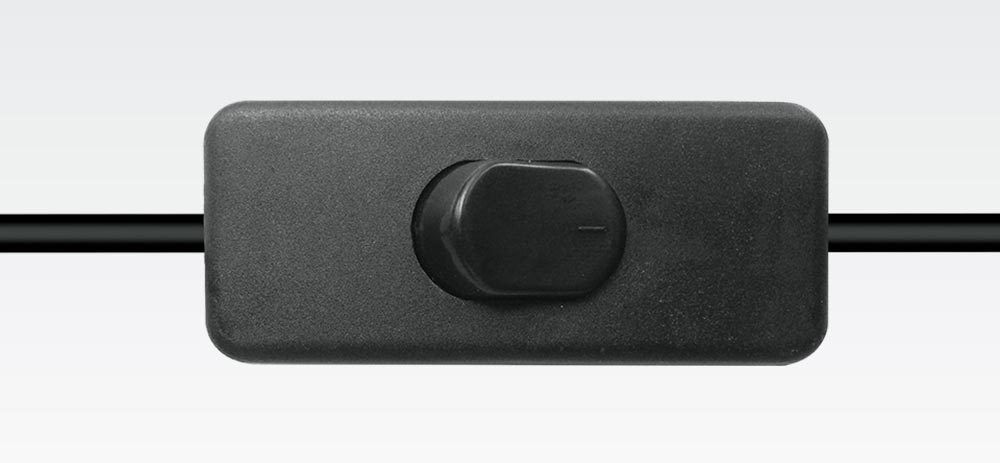

304 Switch
Gear Switch

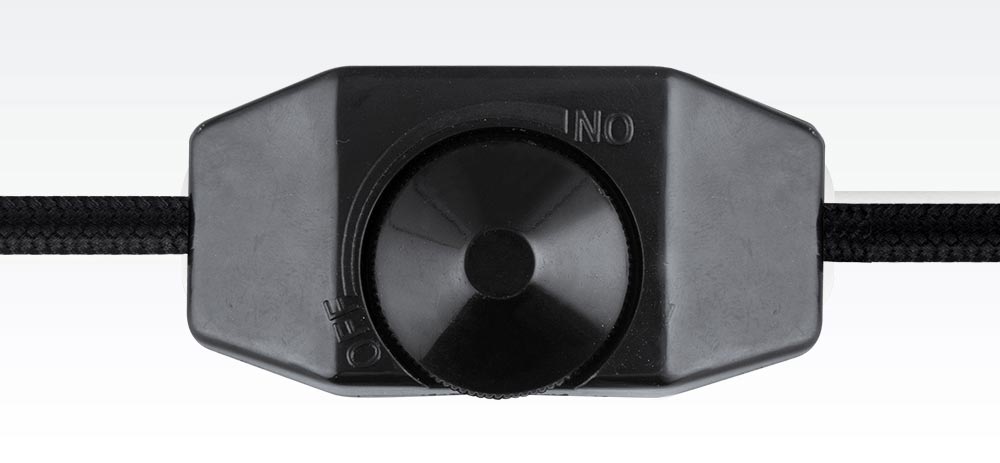

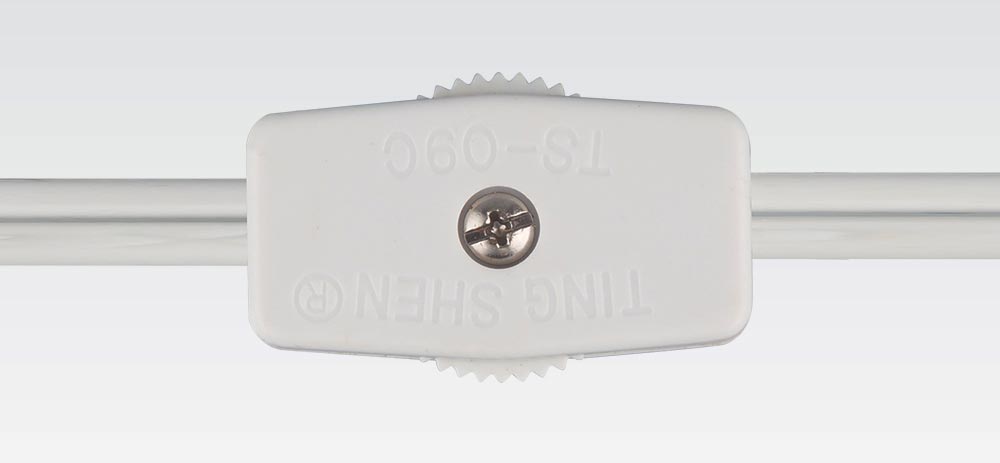

Dimmer Switch
The color of online swtiches mostly white, black and transparent

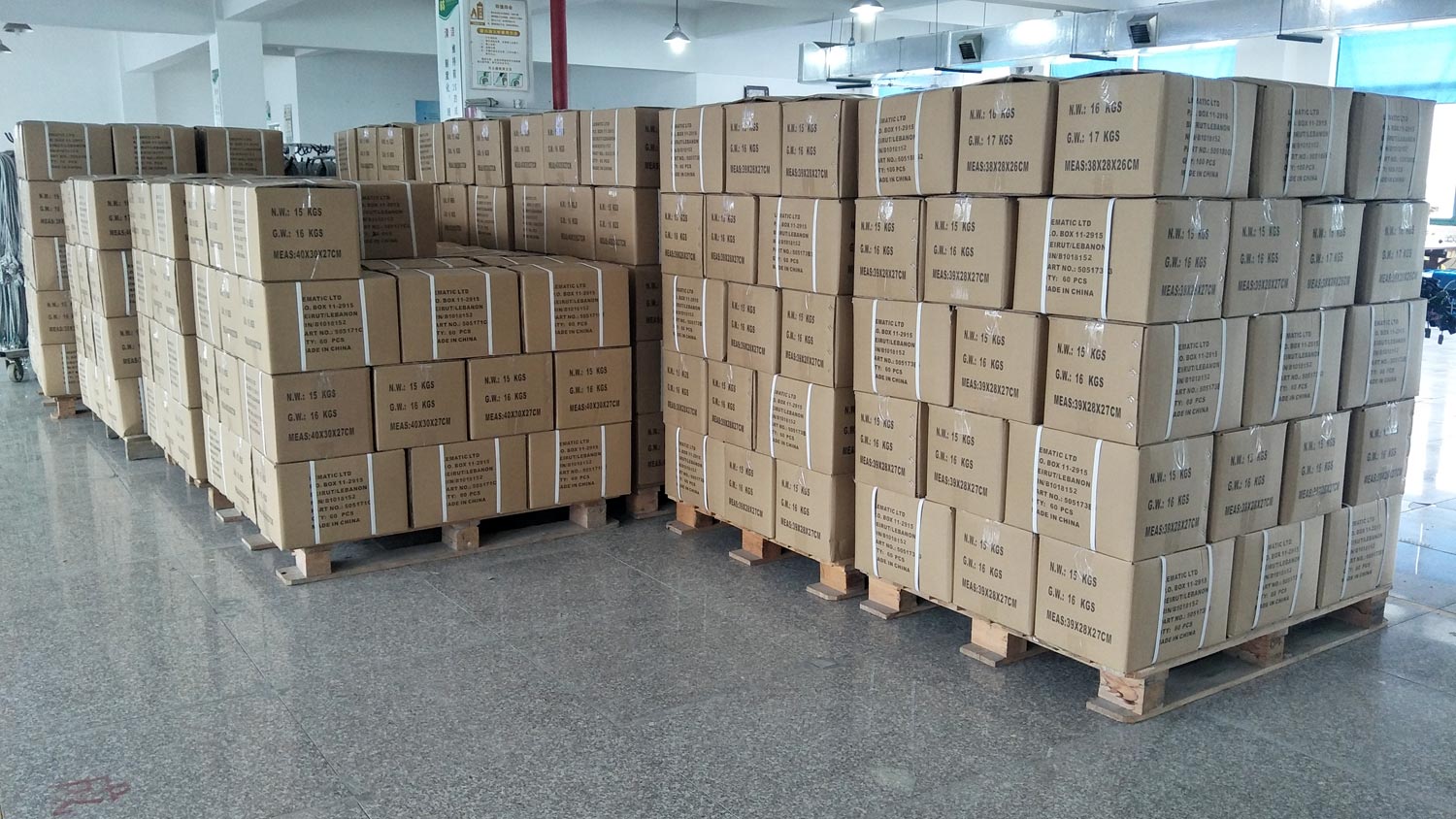

Package
Brazil Power Cord AS NZS 3112 AC 2 Pole 2 Wire Bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in Brazil and all Countries in the world. Our extensive and complete Brazil power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire, and plug adapters. Contact us for Brazil AC power cords as China leading Brazil power cord manufacturer and supplier. all of Brazil’s AC power cables are approved by Inmetro or TUV and Rohs / Reach compliant.
