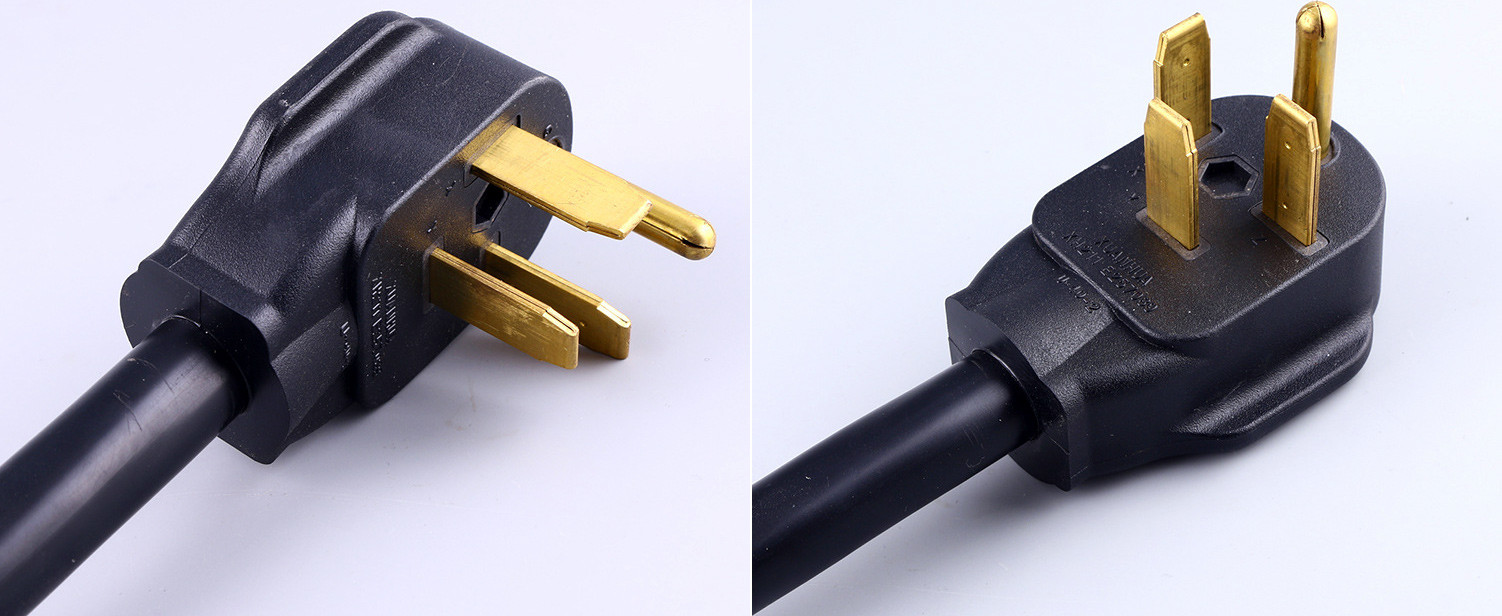

Power Suppply Cord 50 Amp NEMA 15-50P 250 Volt Custom Length Cord
Power Suppply Cord 50 Amp NEMA 15-50P 250V, 4-prong plug molded with custom length cable.
- Plug type: US 50A Straight blade plug
- Standard:NEMA 15-50P
- Approvals:UL, cUL
- Electricity:50A, 250V
- Number of Poles and Wires:3 pole 4 wires
- Cable length:Custom length
- End Options:Strain relief clamp, terminals
- Quality System:ISO9001:2008
- Color:Black is normal,Custom color available
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:LA009D,XH211
Plug Standard America NEMA 15-50 plug Maximum Electric current rating 50A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Straight blade Type Plug, available cables：
| LA009D | 15-50P | 6/3 + 8/1 | STW, SOW | 45/250 |
| XH211 | 15-50P | 6/3+8/1 | ST, STW, STO, STOW, STOO, STOOW | 50/250 |
