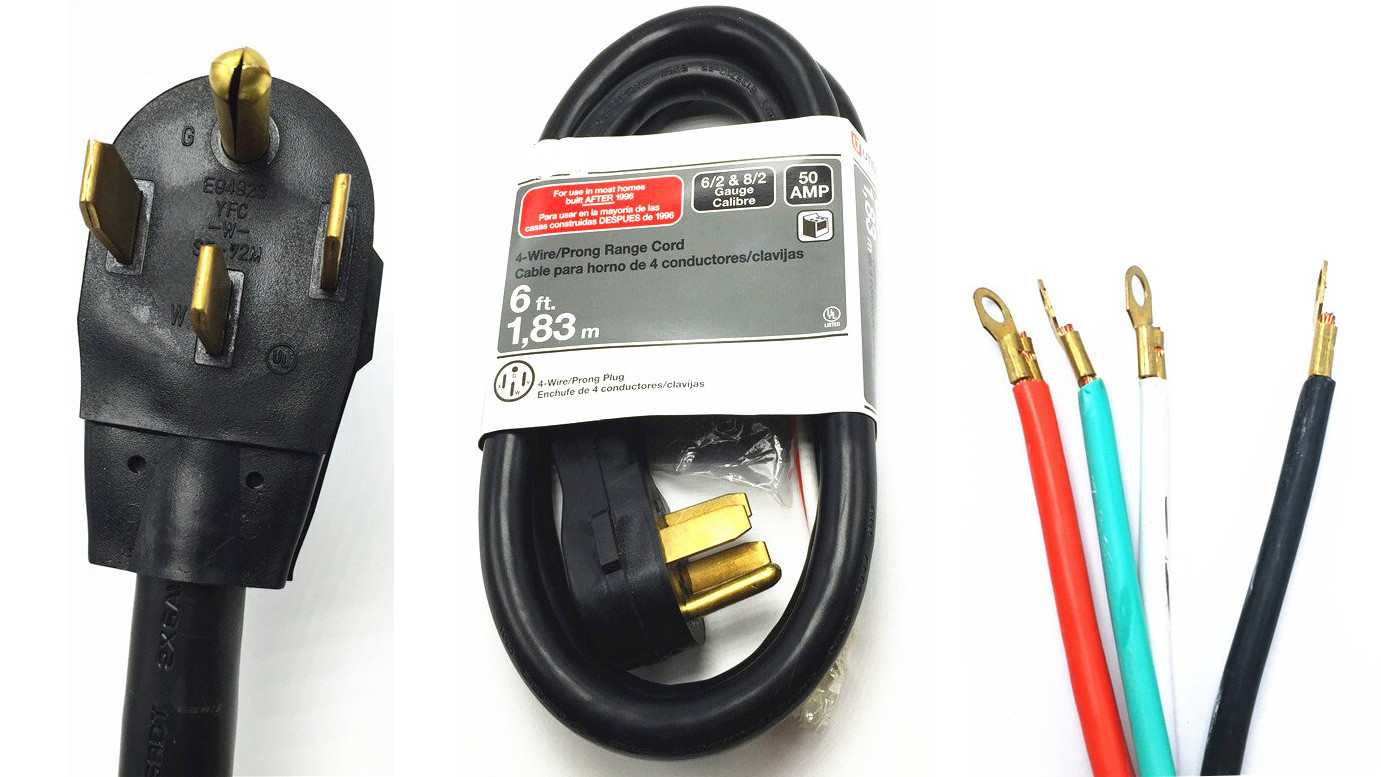

Range Cord 50 Amp 14-50P Range Cords
Range Cord 50 Amp NEMA 14-50P, 125V, 250V, 4-prong plug molded with round RDT or SRDT cables.
- Plug type: US 50A Straight blade dryer plug
- Standard:NEMA 14-50P
- Approvals:UL, cUL
- Electricity:50A, 125V, 250V
- Number of Poles and Wires:3 pole 4 wires
- Cable length:Custom length available
- End Options:Strain relief clamp, terminals
- Quality System:ISO9001:2008
- Color:Black is normal,Custom color available
- Outer Mold Material:PVC
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:RDT, SRDT
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:LA009B

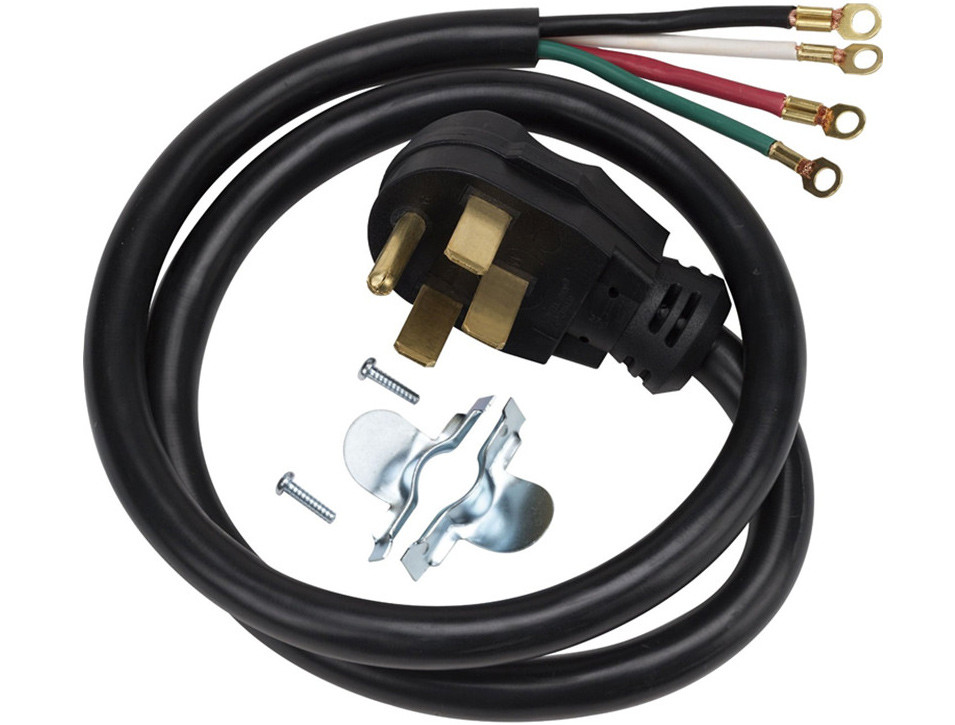

Plug Standard America NEMA 14-50 plug Maximum Electric current rating 50A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Straight blade Type Plug, 50-Amp range appliance power supply cord with 1/4-inch ring terminals
Strain relief clamp helps prevent cord damage, hardware included
Reinforced blades help prevent accidental bending or breaking
125/250-Volt SRDT Cord with (2) 6-Gauge and (2) 8-Gauge copper conductors
UL Listed replacement dryer power supply cord with flanged ring terminals for quick connectionsavailable cables：
| LA009B | 14/50 | 8/4 | SRDT, DRT | 35/125/250 |
| 6/4 | SRDT, DRT | 45/125/250 | ||
| 8/2 + 10/2 | SRDT, DRT | 40/125/250 | ||
| 6/2 + 8/2 | SRDT, DRT | 50/125/250 |
HEAVY DUTY 50-Amp range appliance power supply cord with ¼-inch flanged terminals, Compatible with most standard free standing electrical ranges with a 4 conductor wall outlet, ERGONOMIC, 4 pronged, flat plug lays flat against the wall so that range can be pushed back against the wall,125/250-Volt SRDT Cord with (2) 6-Gauge and (2) 8-Gauge copper conductors, Strain relief clamp helps prevent cord damage, hardware included,Reinforced blades help prevent accidental bending or breaking UL LISTED.
