Range Cord 50 Amp 10-50P Length 4Ft minimum 6Ft Maximum
Range Cord 50 Amp NEMA 10-50P, 125V, 250V, 3-prong plug molded with 4Ft minimum 6Ft Maximum length cable.
Plug type: US 50A Straight blade range plug
Standard: NEMA 10-50P
Approvals: UL, cUL
Electricity:50A, 125V, 250V
Number of Poles and Wires:2 poles 3 wires
Cable length:4Ft minimum 6Ft Maximum, custom length
End Options: Strain relief clamp, terminals
Quality System:ISO9001:2008
Color: grey is normal, Custom color available
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications: Standard and custom made
Wire jacket Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number: LA008B
Power Supply Cord 50 Amp NEMA 10-50P
Plug Standard America NEMA 10-50 plug Maximum Electric current rating 50A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Straight blade Plug available cables：
| LA008B | 10-50 | 8/2 + 10/1 | SRDT, DRT | 40/125/250 |
| 8/3 | SRDT, DRT | 40/125/250 | ||
| 6/3 | SRDT, DRT | 50/125/250 | ||
| 6/2 + 8/1 | SRDT, DRT | 50/125/25 |

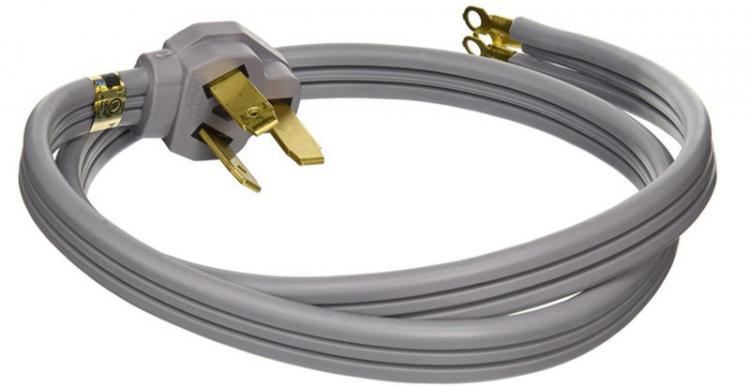

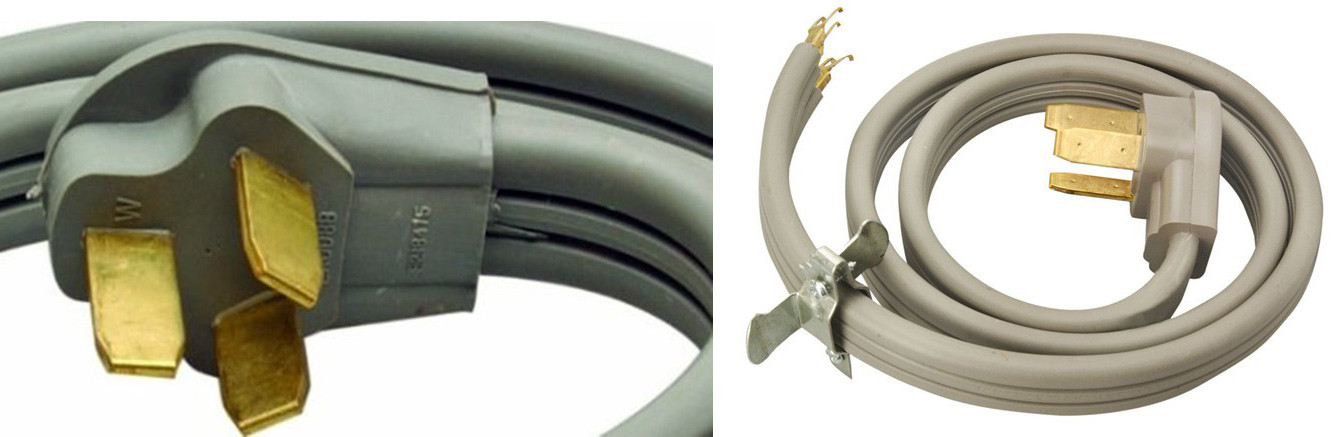

4-ft 40-amp cord works with most electric ranges with a 3-prong outlet box. Molded-on, right angle plug keeps cord close to the wall. Ring terminals allow for easy hook-up. Includes cord clamp to relieve strain on terminals. 50-Amp range appliance power supply cord with 1/4-inch flanged terminals, Has a 3 prong plug 50-amp wire 125/250-Volt SRDT Cord with (2) 6-Gauge and (1) 8-Gauge copper conductors, UL Listed replacement dryer power supply cord with flanged spade terminals for quick connections.
