Dryer Cord 30 Amp 14-30P Length 4Ft minimum 6Ft Maximum
Dryer Cord 30 Amp NEMA 14-30P, 125V, 250V, 4-prong plug molded with round RDT or SRDT cables.
Plug type: US 30A Straight blade dryer plug
Standard:NEMA 14-30P
Approvals:UL, cUL
Electricity:30A, 125V, 250V
Number of Poles and Wires:3 pole 4 wires
Cable length:Custom length available
End Options:Strain relief clamp, terminals
Quality System:ISO9001:2008
Color:Black is normal,Custom color available
Outer Mold Material:PVC
Plug Insert Material:PBT,ABS
Blade Material:Nickel coated Brass
Cable Specifications:Standard and custom made
Wire Outject Material:RDT, SRDT
Environmental Certifications:RoHS, REACH, PAHS

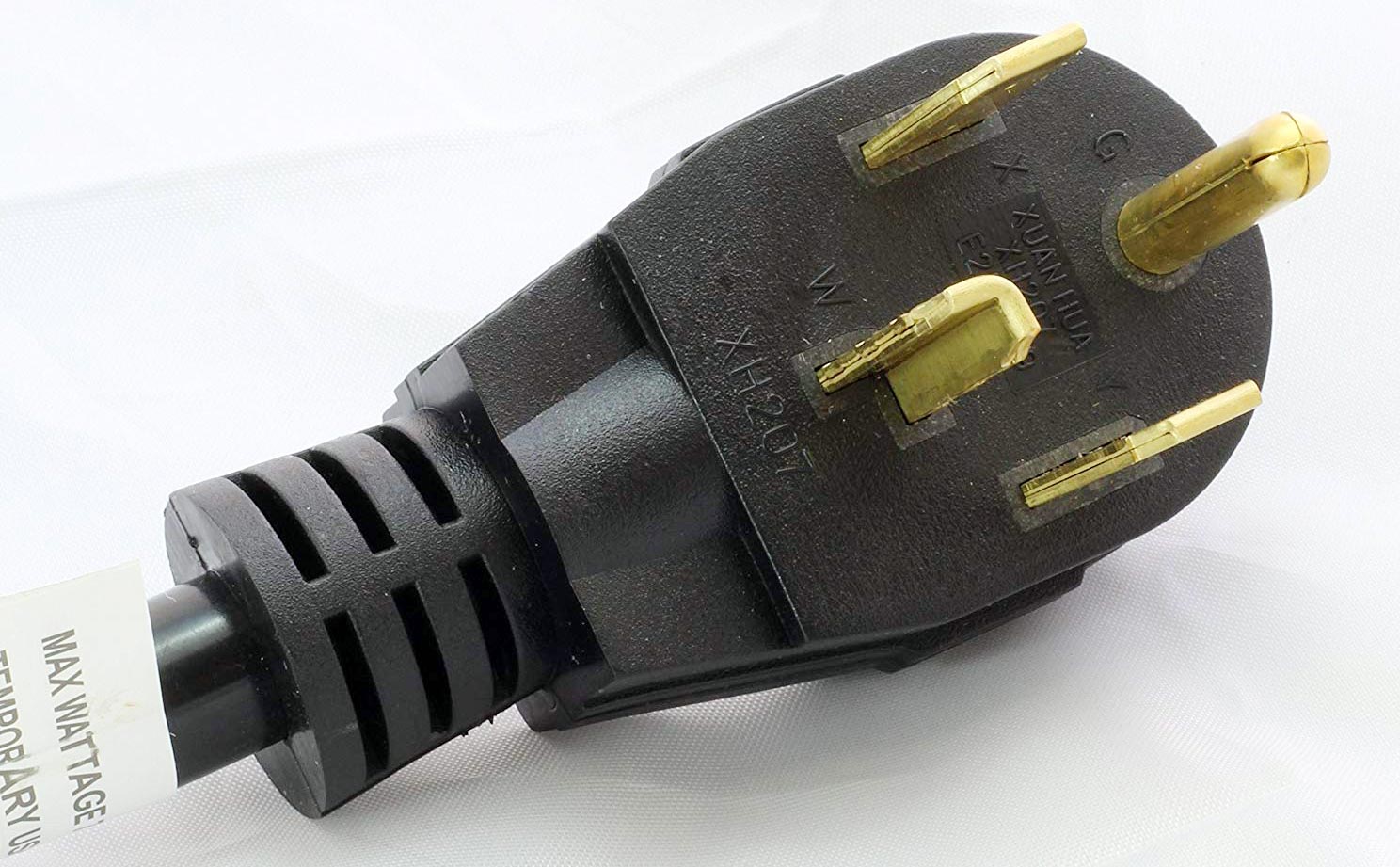

Model Number:LA009A, XH207

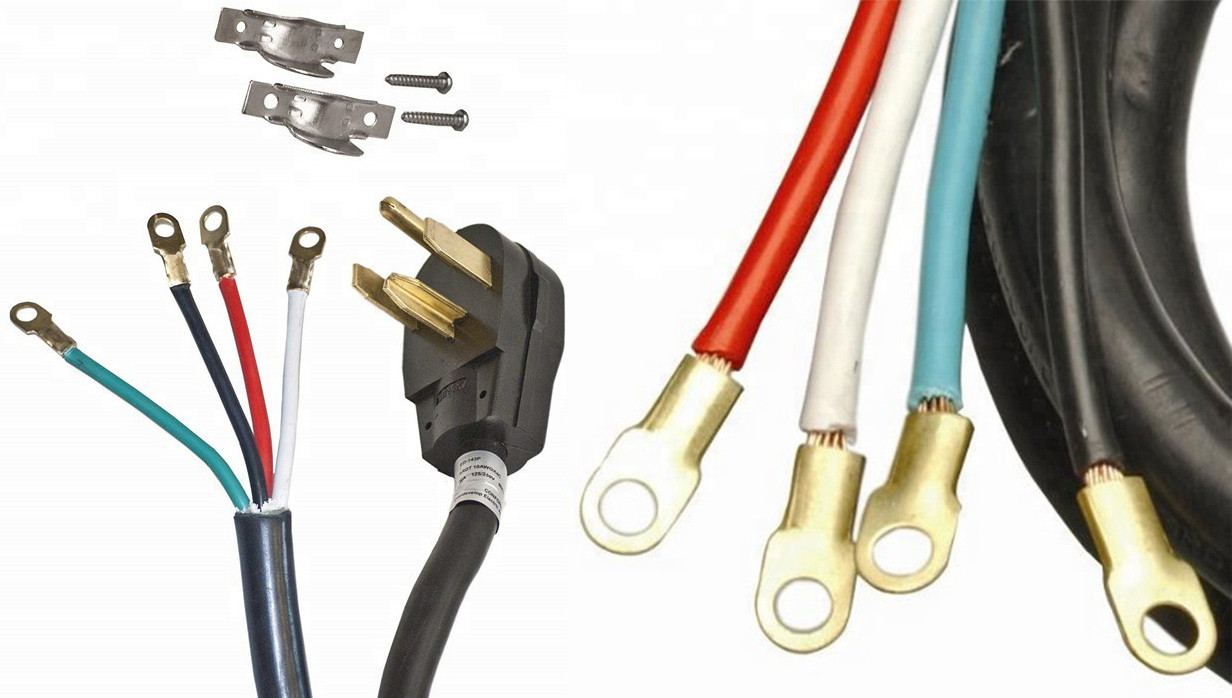

Plug Standard America NEMA 14-30 plug Maximum Electric current rating 30A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Straight blade Type Plug, 30-Amp dryer appliance power supply cord with 1/4-inch flanged terminals,4-prong plug,30-amp wire,125/250-Volt SRDT Cord with (4) 10-Gauge copper conductors,UL Listed replacement dryer power supply cord with flanged spade terminals for quick connections available cables：
| LA009A | 14-30 | 10/4, 10/3+12/1 | SRDT, DRT | 30/125/250 |
| 8/4 | SRDT, DRT | 30/125/250 | ||
| 6/4 | SRDT, DRT | 30/125/250 | ||
| 8/2 + 10/2 | SRDT, DRT | 30/125/250 | ||
| 6/2 + 8/2 | SRDT, DRT | 30/125/250 |
