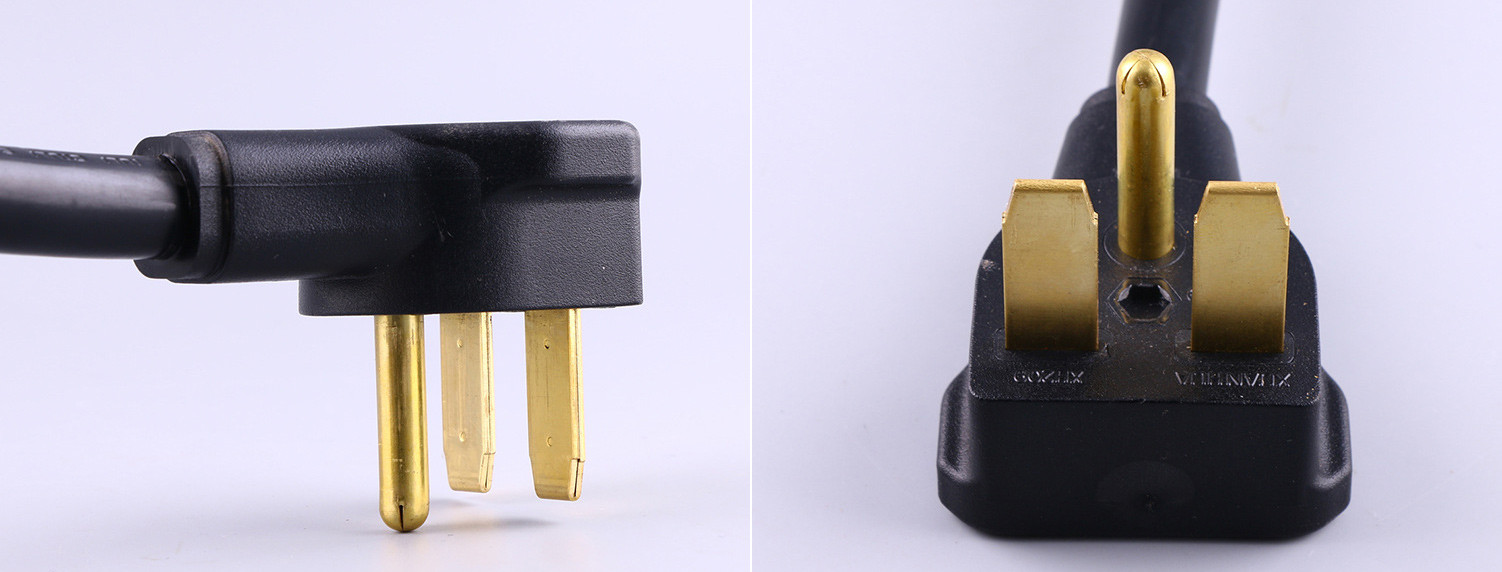

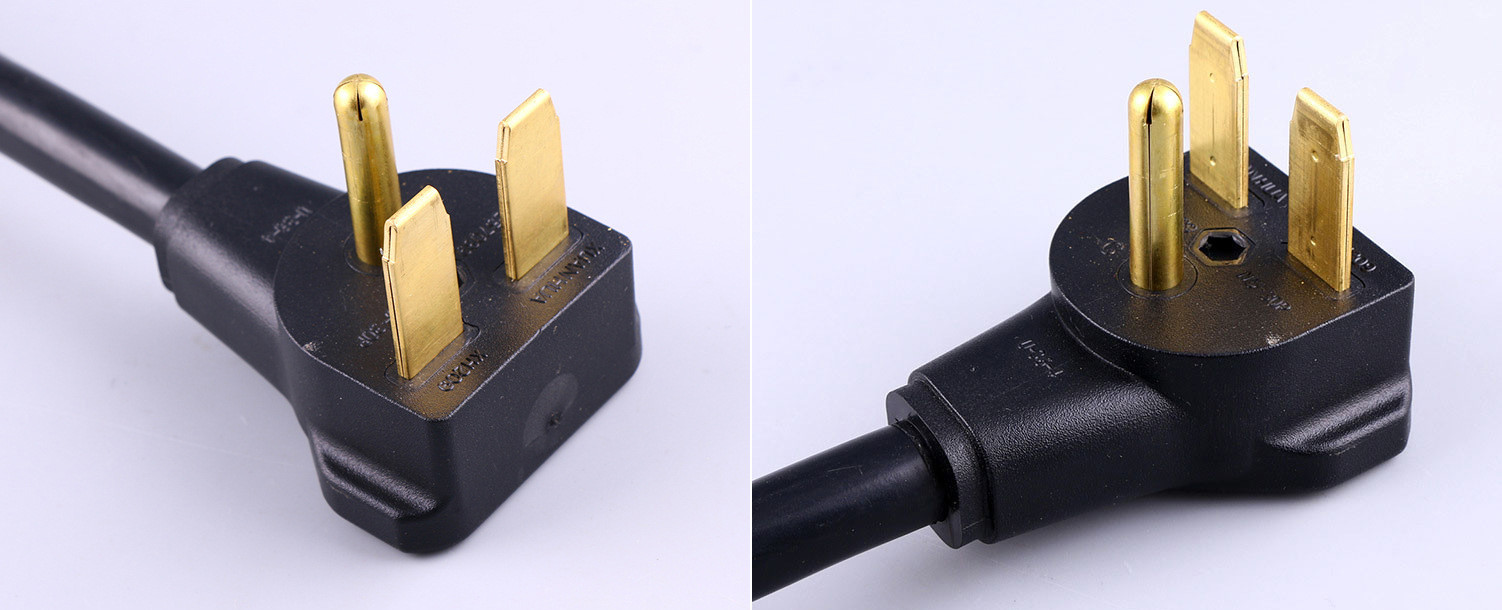

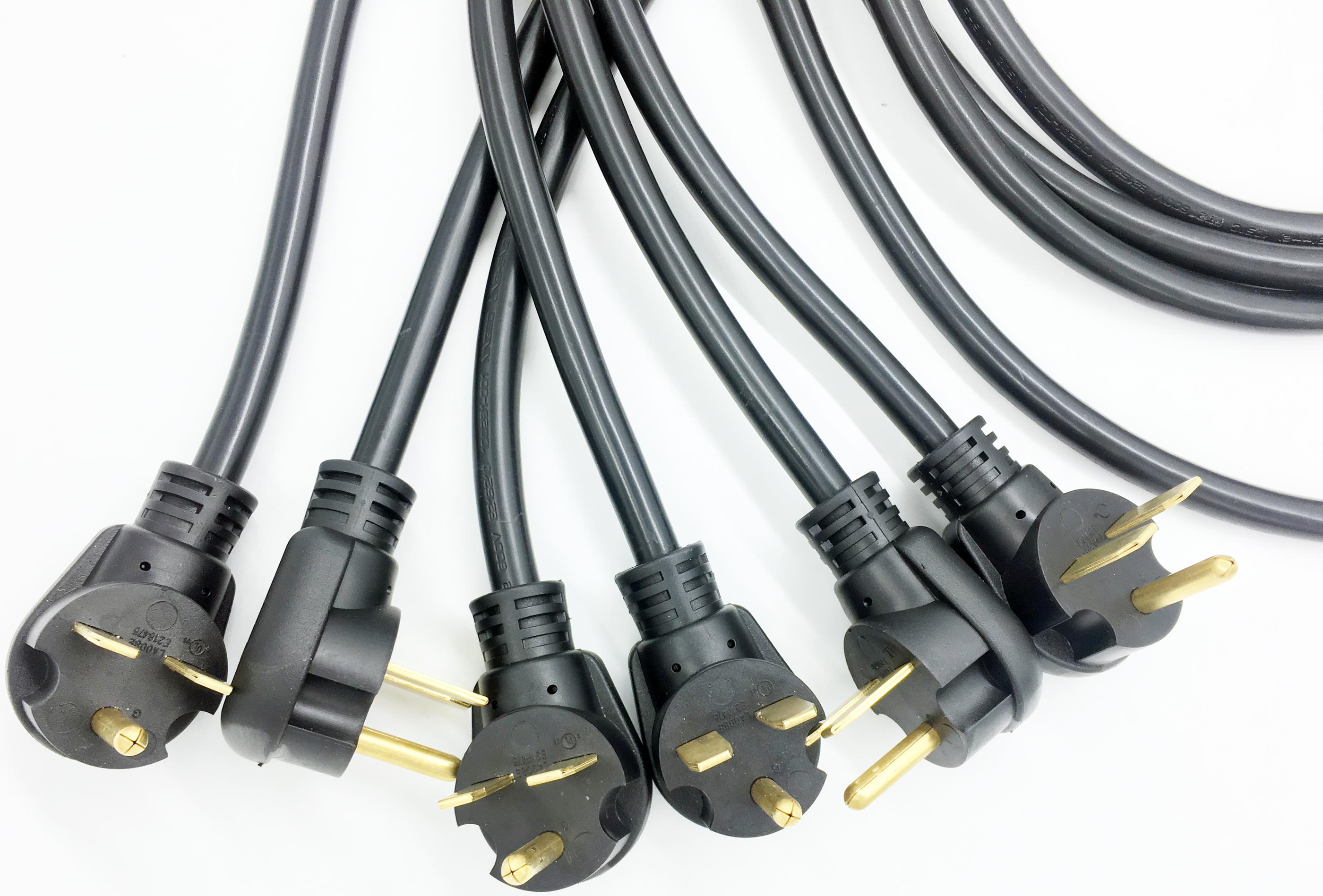

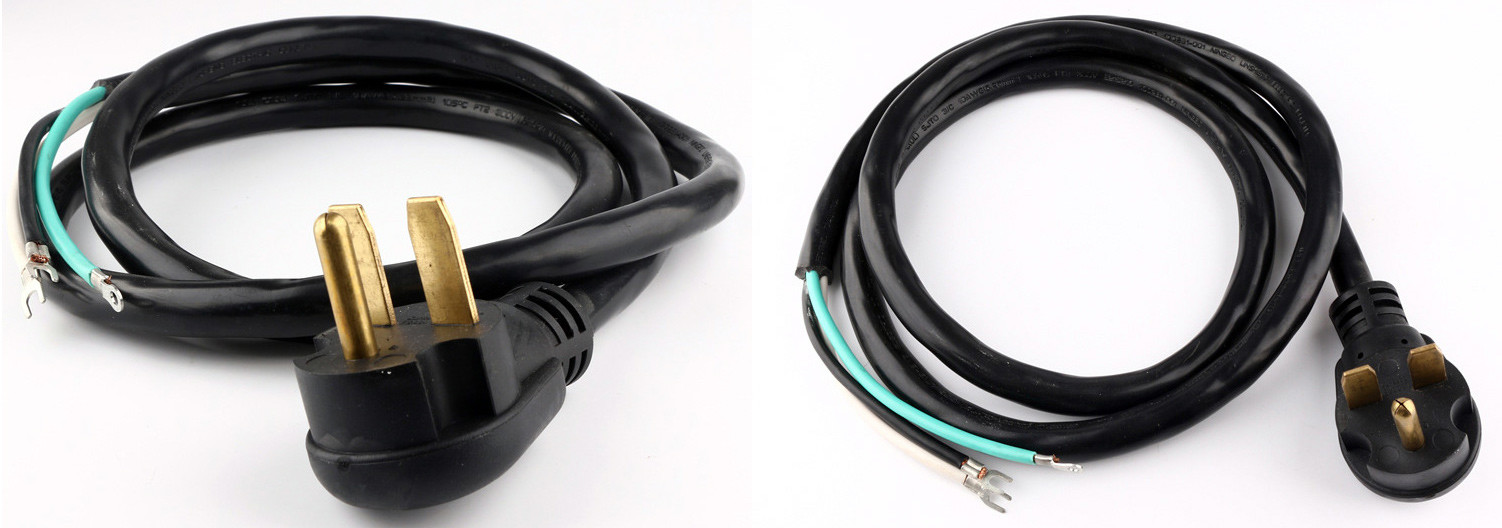

Power Suppply Cord 30 Amp NEMA 6-30P
Power Suppply Cord 30 Amp NEMA 6-30P, 250V, 3-prong plug molded with custom length cable.
- Plug type: US 30A Straight blade plug
- Standard:NEMA 6-30P
- Approvals:UL, cUL
- Electricity:30A, 250V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:Custom length
- End Options:Strain relief clamp, terminals
- Quality System:ISO9001:2008
- Color:Black is normal,Custom color available
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:LA008E, XH209
Plug Standard America NEMA 6-30 plug Maximum Electric current rating 30A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Straight blade Type Plug, available cables：
| LA008E | 6-30P | 10/3 | SJTW, SJOOW, STW, ST, STO, STOW, STOO, STOOW | 30A/250V |
| 12/3 | SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW | 25A/250V | ||
| 14/3 | SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW | 18A/250V | ||
| 16/3 | SJE, SJEW, SJEO, SJEOW, SJEOO, SJEOOW S,SO,SOO,SOW,SOOW ST, STW, STO, STOW, STOO, STOOW | 13A/250V | ||
| 8/2+10/1 | STW, ST, STO, STOW, STOO, STOOW | 30A/250V |
