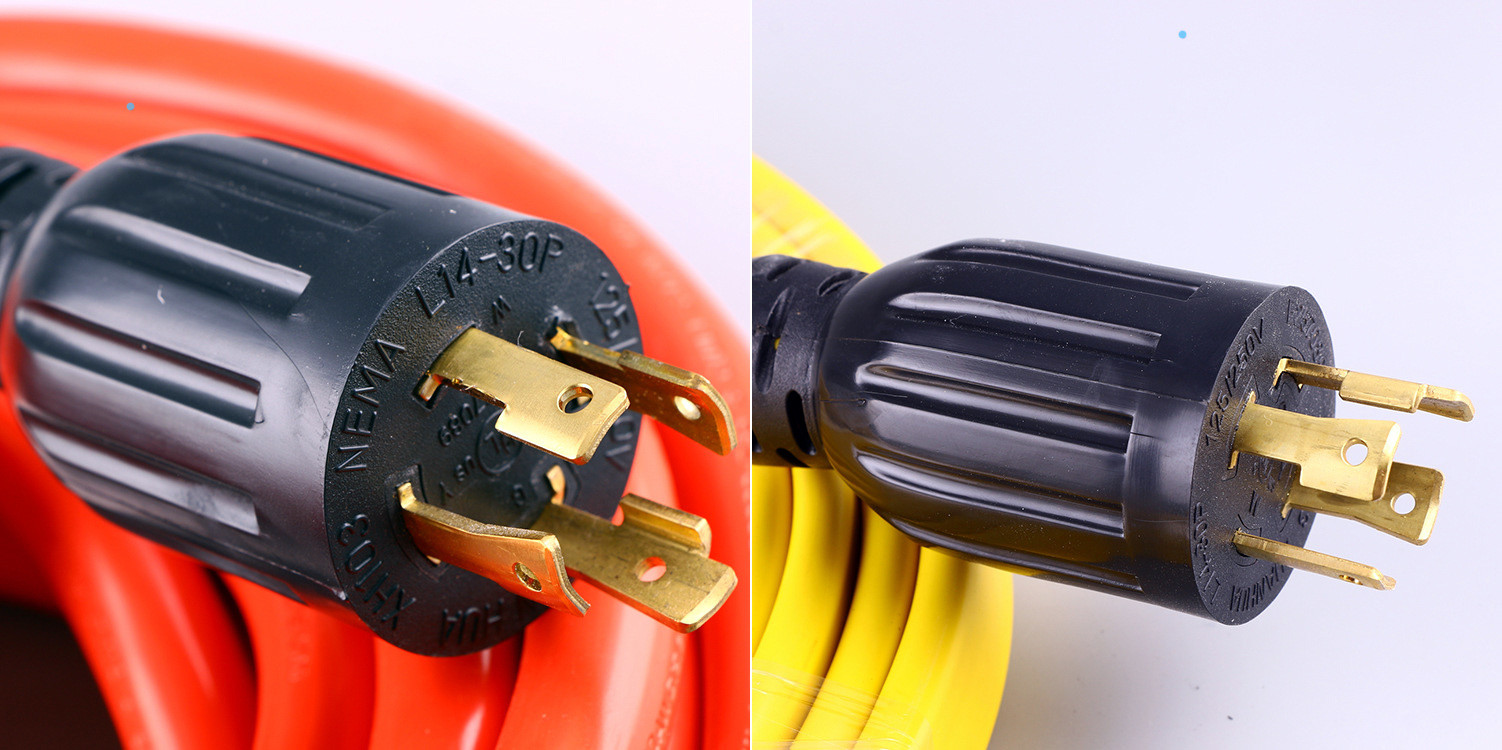

Manufacturer Base Twist Lock Power Cord NEMA L14-30P 4-Prong 30-Amp Generator Locking Type AC Power Cable
L4-30P Twist-Lock Power Cable 30A, 250V, 4-prong plug molded with a custom length, color PVC, rubber or TPE cable.
Plug type: L14-30P twist lock plug
Standard: NEMA L14-30P
Approvals: UL, cUL
Electricity:30A, 250V
Number of Poles and Wires:3 pole 4 wires
Cable length:1.0 meter, 1.5m, 1.8m,custom length
End Options: Locking Socket, ROJ, Termination
Quality System: ISO9001:2008
Color: White and black are normal, Custom color
Outer Mold Material: PVC, Rubber
Plug Insert Material: PBT, ABS
Blade Material: Nickel coated brass
Cable Specifications: Standard and custom made
Wire Outject Material:PVC,Rubber,TPE,Textile
Environmental Certifications: RoHS, REACH, PAHS
Model Number:
Plug Standard America NEMA L14-30P plug Maximum Electric current rating 30A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Locking Type Plug, Connector Standards Twist-lock type receptacles, NEMA 5-15R, NEMA 5-20R adapter cord, IEC 60320 connectors, NEMA standard receptacles, Unterminated.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Twist Lock Power Cord NEMA L14-20P,custom color,the other end can be stipped,ROJ with custom length.
Common Termination

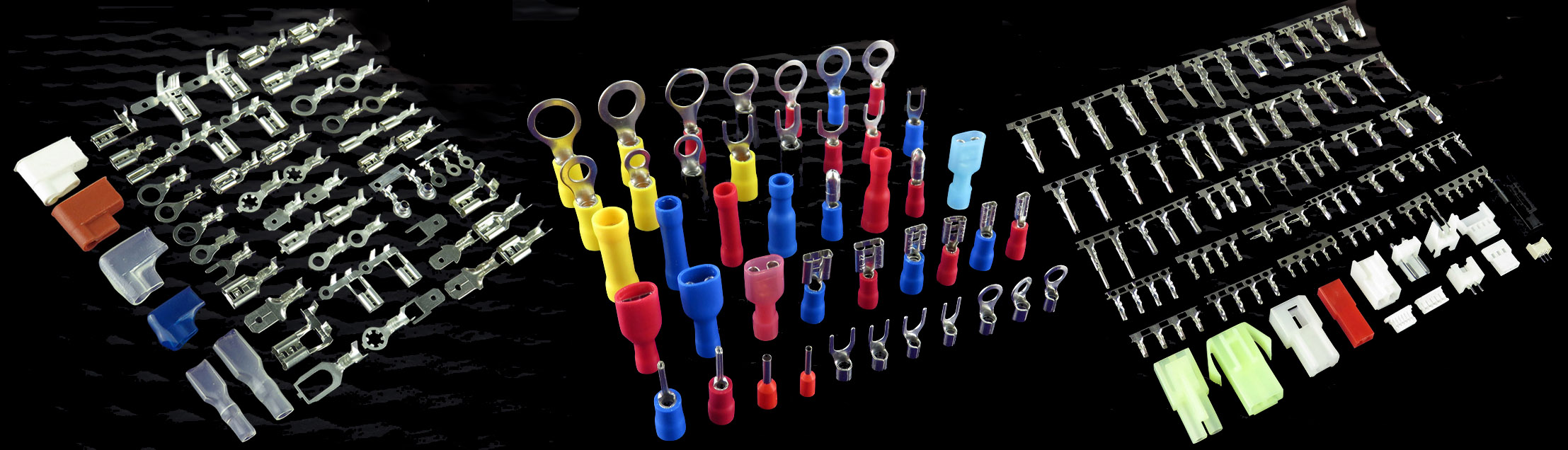

Twist Lock Power Cord NEMA L14-20P, one end is molded with NEMA Locking standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
Package
Twist Lock Power Cord NEMA 14-30P Bulk packed with export cartons, pallets.
