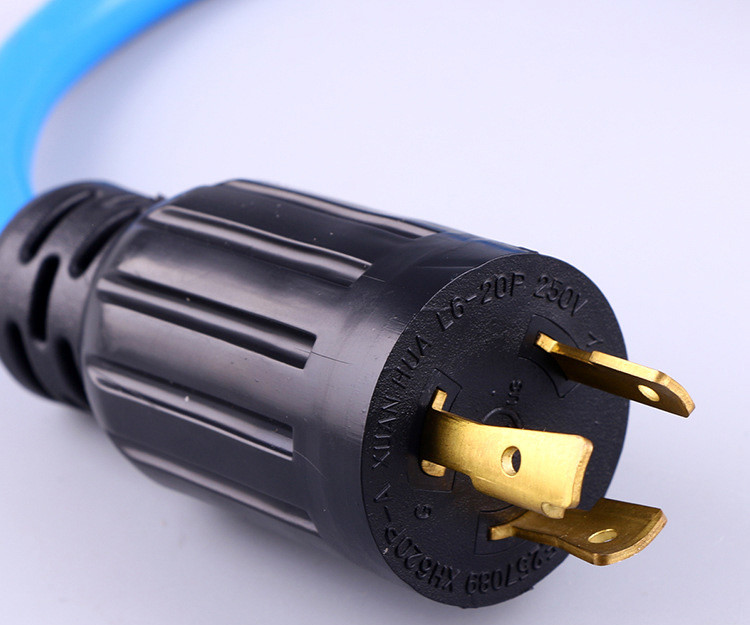

Twist Lock Power Cord NEMA L6-20P
Twist Lock Power Cord NEMA L6-20P 20A, 250V, 3 prong plug molded with custom long ,color PVC, rubber or TPE cable.
- Plug type: L6-20P twist lock plug
- Standard:NEMA L6-20P
- Approvals:UL, cUL
- Electricity:20A, 250V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options:Locking Socket,ROJ, Termination
- Quality System:ISO9001:2008
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:LA065A
Plug Standard America NEMA L6-20P plug Maximum Electric Current rating 20A Maximum Voltage 250V Number of Poles and Wires 2 poles, 3 wires Grounded Loacking Type Plug, Connector Standards Twist lock type receptacles, NEMA 5-15, 5-20 Adapter cords, IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-15, Unterminated.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Twist Lock Power Cord NEMA L6-20P,custom color,the other end can be stipped,ROJ with custom length.
Common Termination
Twist Lock Power Cord NEMA L6-20P, one end is molded with NEMA Locking standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
Package
Twist Lock Power Cord NEMA L6-20P Bulk packed with export cartons, pallets.
