Twist Lock Power Cord NEMA L7-15P
Twist Lock Power Cord NEMA L7-15P 15 A, 277V, 3 prong plug molded with custom long ,color PVC, rubber or TPE cable.
- Plug type: L7-15P twist lock plug
- Standard:NEMA L7-15P
- Approvals:UL, cUL
- Electricity:15A, 250V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options:Locking Socket,ROJ, Termination
- Quality System:ISO9001:2008
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:XH715P-A
Plug Standard America NEMA L7-15P plug Maximum Electric Current rating 15A Maximum Voltage 277V Number of Poles and Wires 2 poles, 3 wires Grounded Loacking Type Plug, Connector Standards Twist lock type receptacles, IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-15, Unterminated.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Twist Lock Power Cord NEMA L7-15P,custom color,the other end can be stipped,ROJ with custom length.

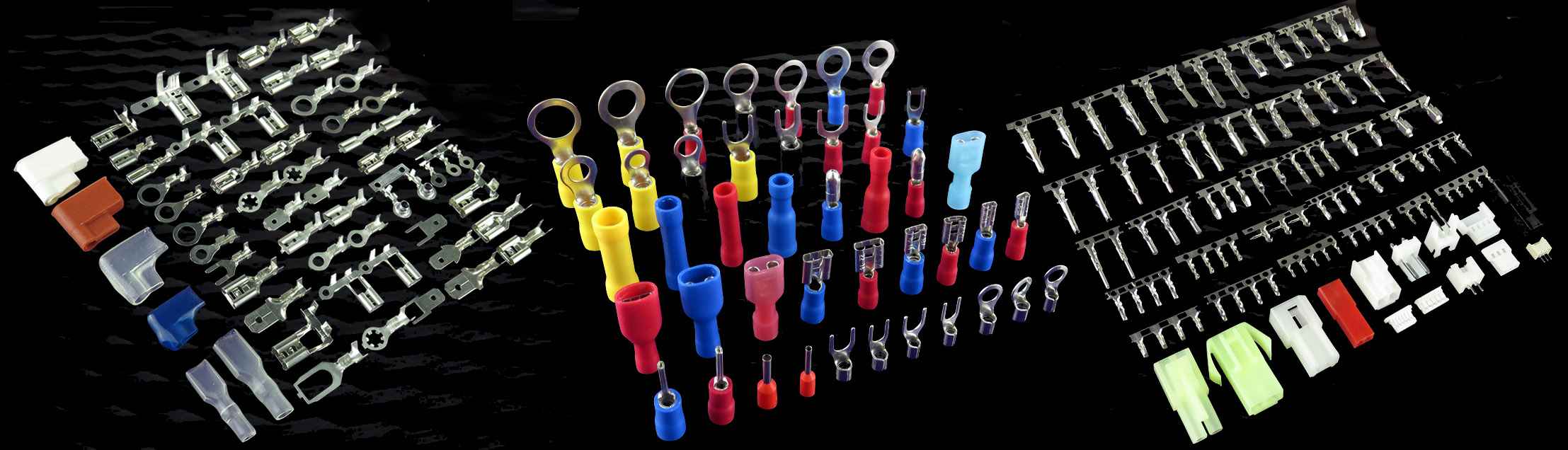

Common Termination
Twist Lock Power Cord NEMA L7-15P, one end is molded with NEMA Locking standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
IEC 60320 Connectors
Twist Lock Power Cord NEMA L7-15P to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of US, Canada generator power cords with IEC connectors.
IEC 60320 C13 Power Cord Straight
IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Waterproof
IEC 60320 C13 Power Cord Locking
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C19 Power Cord
IEC 60320 C19 Power Cord Right Angle

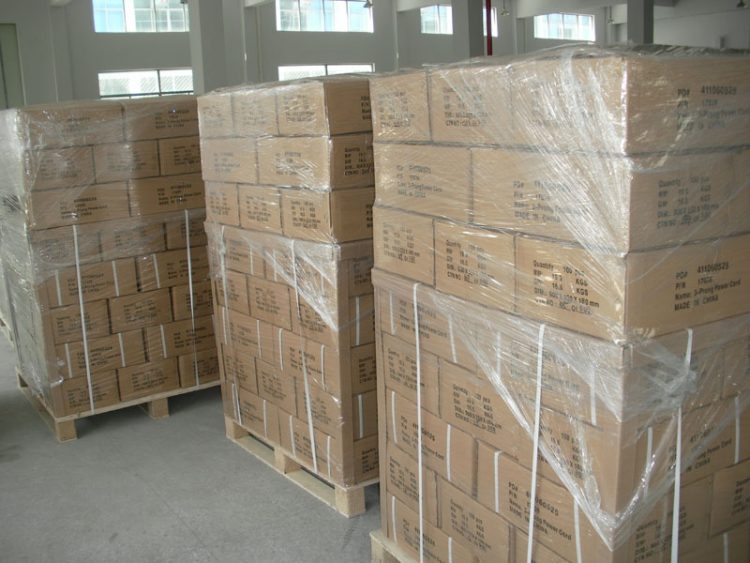

Package
Twist Lock Power Cord NEMA L7-15P Bulk packed with export cartons, pallets.
