Twist Lock Power Cord NEMA L5-15P 3-Prong 15-Amp 125-Volt Generator Locking Type, UL listed

  • Samples date: 7 Days,Free with freight collect
  • MOQ:5000 Pcs
  • Production order shipping date:20-25 days
  • Shipping Terms: By Air, Sea
  • Payment Terms: Wire Transfer, Paypal
  • Packing:Export cartons,pallets
Tags:
Share

Twist Lock Power Cord NEMA L5-15P

Twist Lock Power Cord NEMA L5-15P 15 A, 125V,  3 prong plug molded with custom long ,color PVC, rubber or TPE cable.

  • Plug type: L5-15P twist lock plug
  • Standard:NEMA L5-15P
  • Approvals:UL, cUL
  • Electricity:15A, 125V
  • Number of Poles and Wires:2 pole 3 wires
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options:Locking Socket,ROJ, Termination
  • Quality System:ISO9001:2008
  • Color:White and black are normal,Custom color
  • Outer Mold Material:PVC,Rubber
  • Plug Insert Material:PBT,ABS
  • Blade Material:Nickel coated Brass
  • Cable Specifications:Standard and custom made
  • Wire Outject Material:PVC,Rubber,TPE,Textile
  • Environmental Certifications:RoHS, REACH, PAHS
  • Model Number:XH515P-A, XH112

Plug Standard America NEMA L5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Loacking Type Plug, Connector Standards IEC 60320 (320) C-13, C-13 Locking, C-19, C-19 Locking, C-5,  C-15, Unterminated.

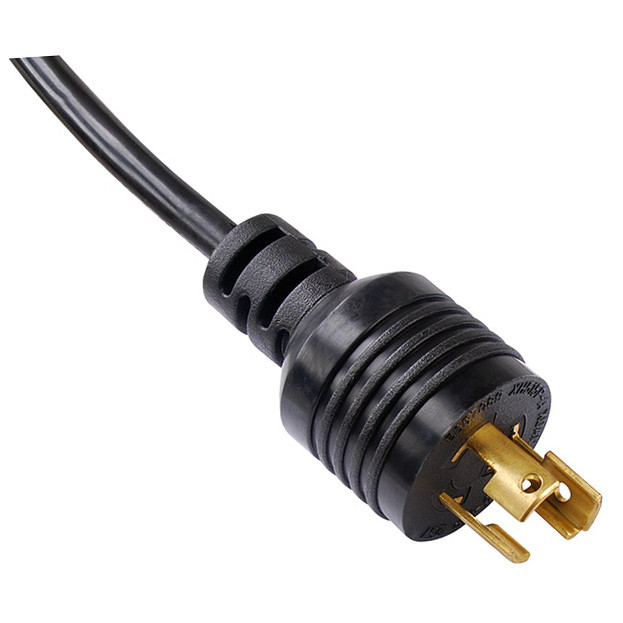

Locking Power Cord NEMA L5-15P Straight XH515P-A

Locking Power Cord NEMA L5-15P Straight XH515P-A

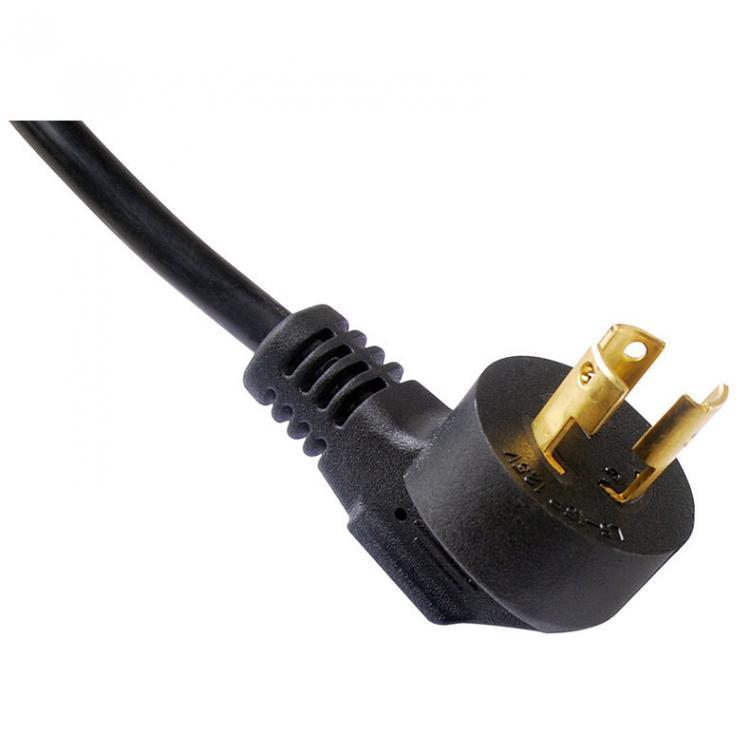

Locking Power Cord NEMA L5-15P Right Angle XH112

Locking Power Cord NEMA L5-15P Right Angle XH112

NEMA L5-15P Locking Power Cord

Available Opposite End

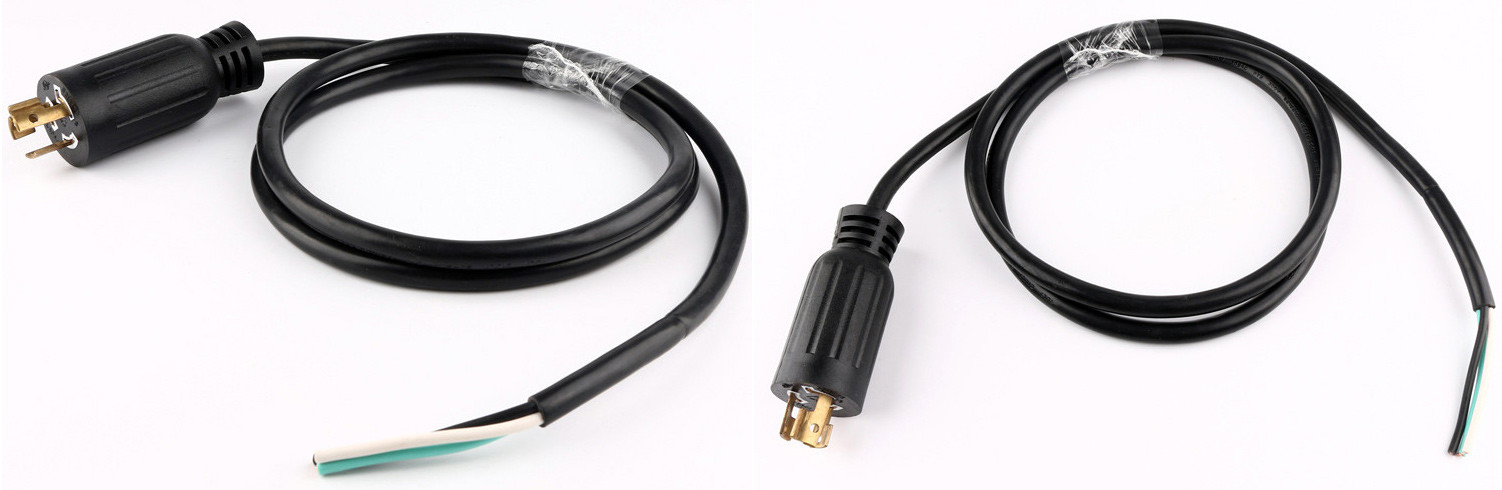

Normal Stripped, Splitter and ROJ

We manufacturers and supplies Twist Lock Power Cord NEMA L5-15P,custom color,the other end can be stipped,ROJ with custom length.

end-strippedCable-ROJ

NEMA L5-15P 15 Amps Locking Power Cable

Common Termination

Twist Lock Power Cord NEMA L5-15P, one end is molded with NEMA Locking standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.

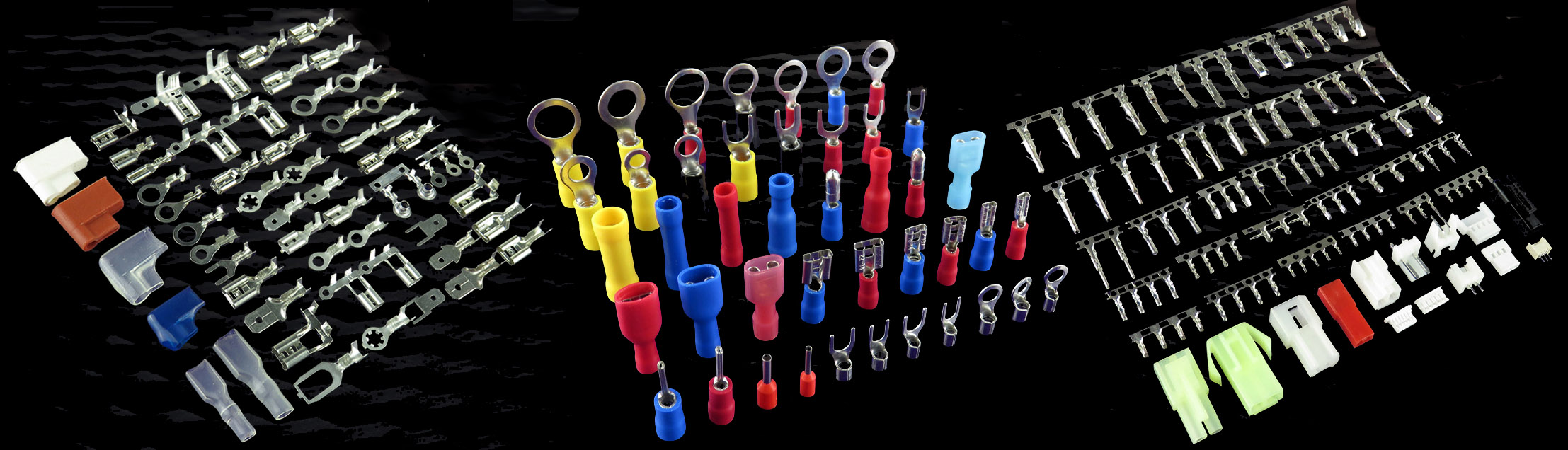

Power Cord Terminals

IEC 60320 Connectors

Twist Lock Power Cord NEMA L5-15P to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America locking power cords with IEC connectors.

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord Right Angle

IEC 60320 C15 Power Cord Right Angle

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord Right Angle

IEC 60320 C19 Power Cord Right Angle

Package

Twist Lock Power Cord NEMA L5-15P Bulk packed with export cartons, pallets.
