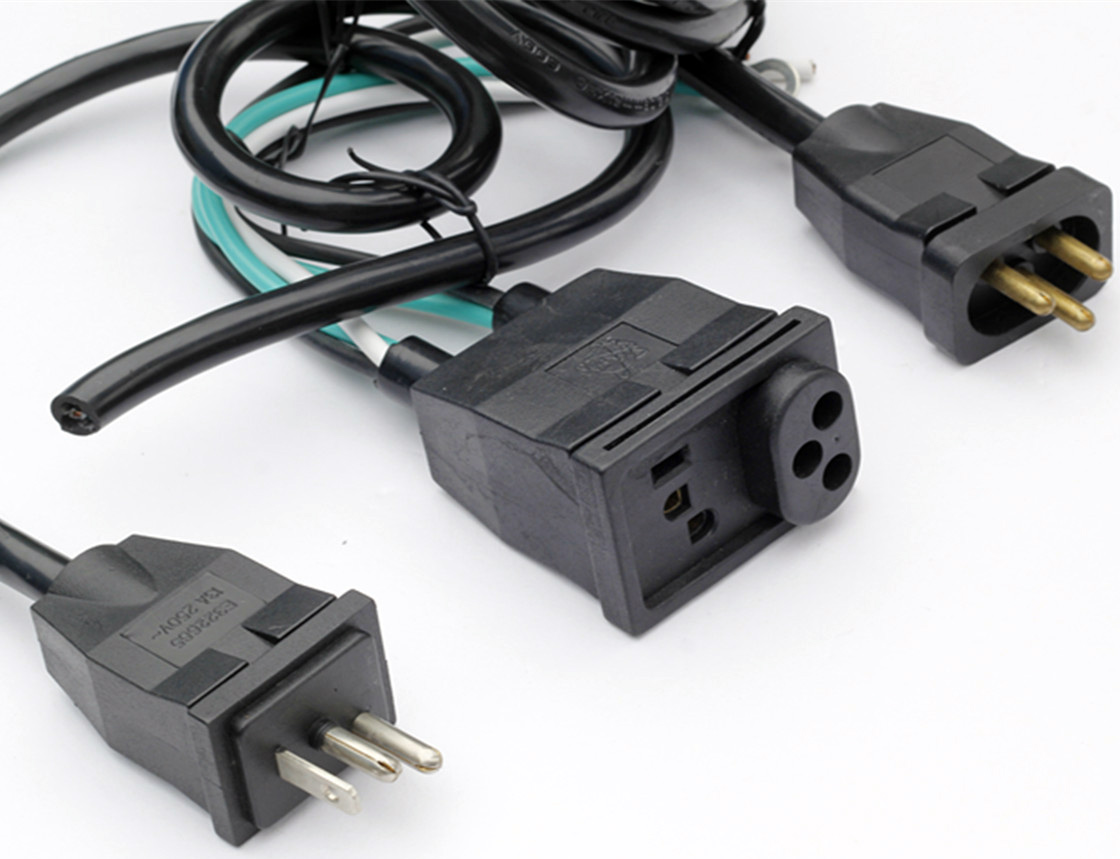

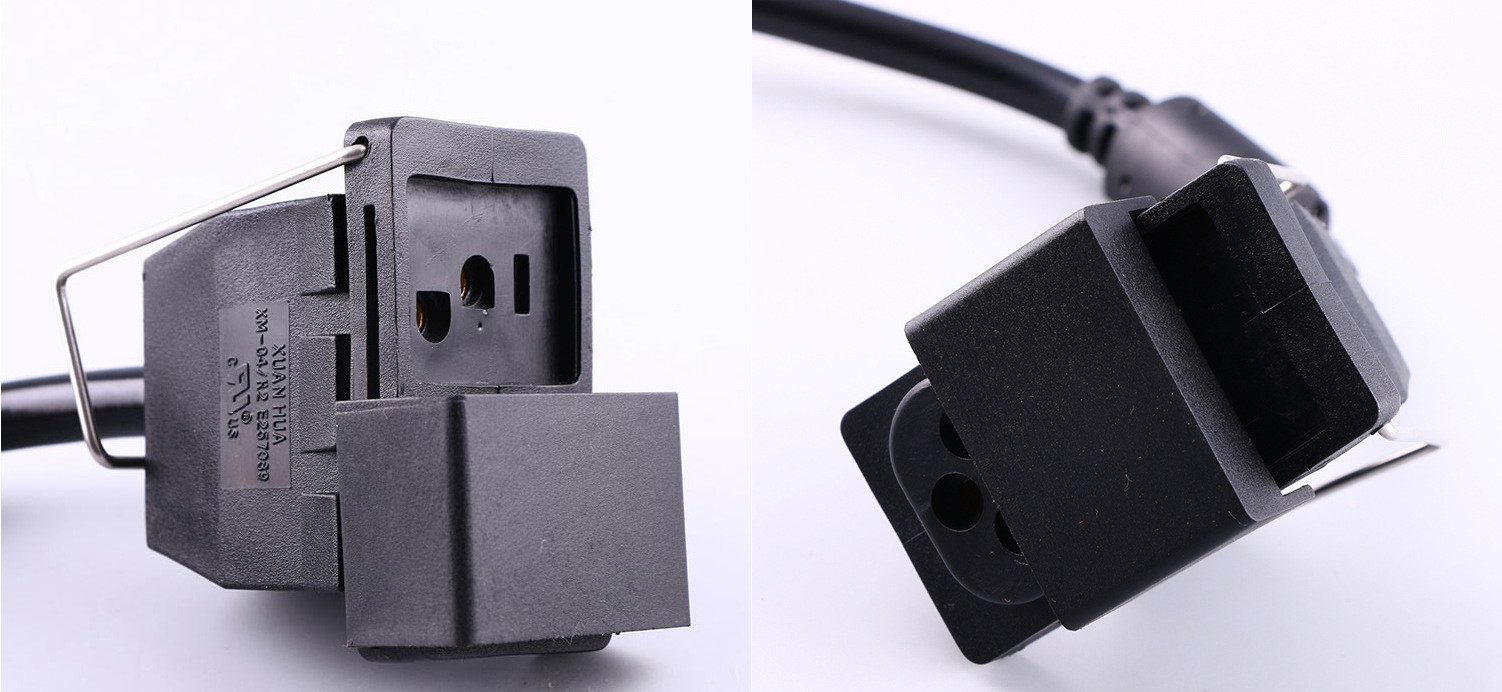

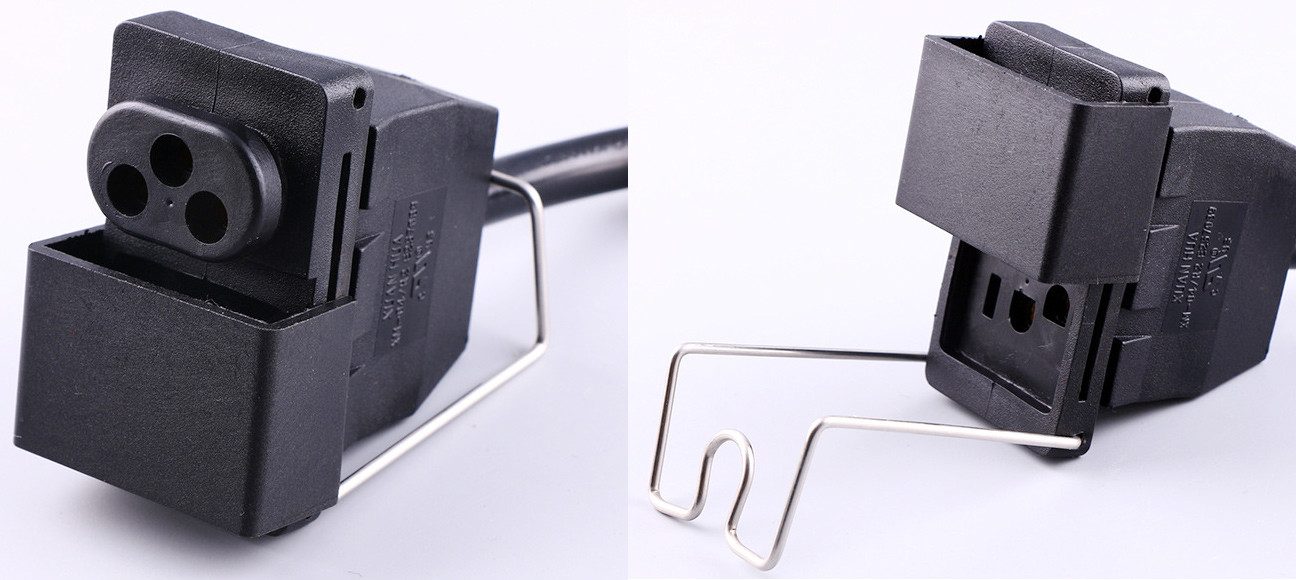

Ballast Reflector Light Lamp Power Cord Available with Cover and Metal Fitting
Ballast Reflector Light Lamp Power Cord 10A,13/15/20 max 30 Amps 125V, 250V,300, 600 Voltage 3 prong receptacle molded with custom long, color PVC or rubber.
- Plug type: 3-conductor 2 outlet Sun System Ballast socket
- Standard: Code B D Sun System
- Approvals: UL, cUL
- Electricity:10/13/15/20/30A, 125/250/300/600V
- Number of Poles and Wires:2 poles 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: Sun System Ballast Socket, ROJ, Termination
- Quality System:ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: XM-04/R2
These cords plug into the male lamp cord plug on a Sun System ballast coming from the reflector. Allows a user to power your reflectors by custom length cable. Match cord gauge to your existing lamp cord gauge.
Cord and Electrical
Power-supply Cord Cat. No. |
Cord or Wire AWG Size |
Electrical Rating (Amps/Volts) |
Code |
---|---|---|---|
XM-04/R2 | 18/3 | 10/125, 250, 300, 600 | b, d |
16/3 | 13/125, 250, 300, 600 | b, d | |
14/3 | 15/125, 250, 300, 600 | b, d | |
12/3 | 20/125, 250, 300, 600 | b, d |
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Ballast Reflector Light Lamp Power Cord, custom color, the other end can be stripped, ROJ with custom length.
Common Termination

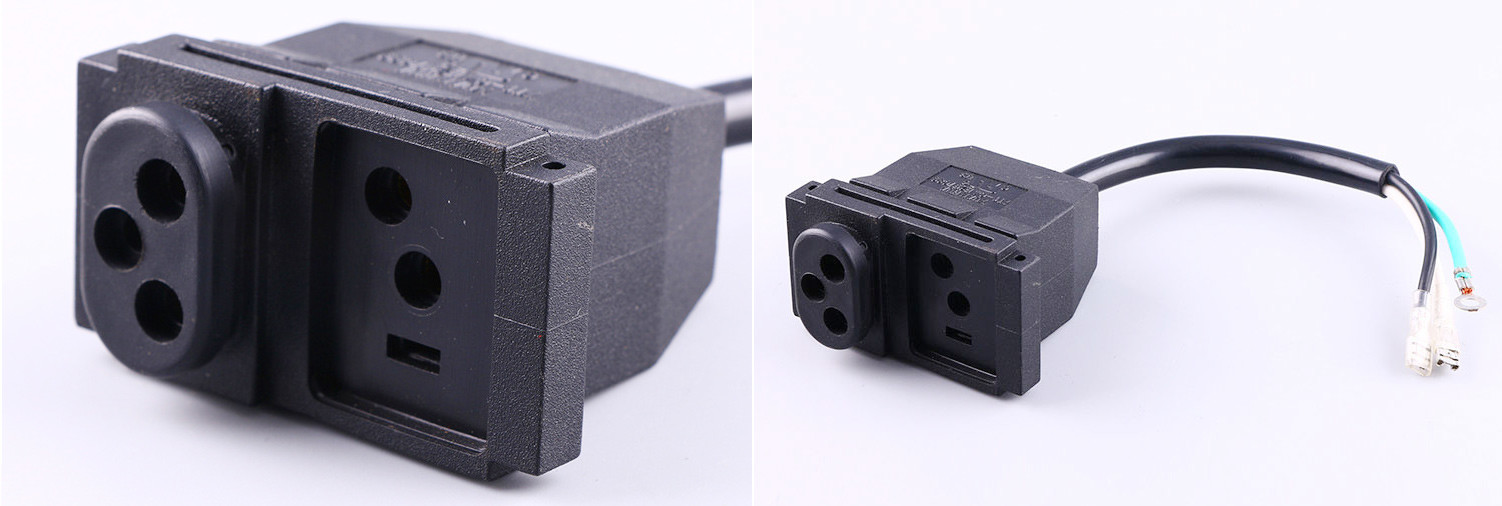

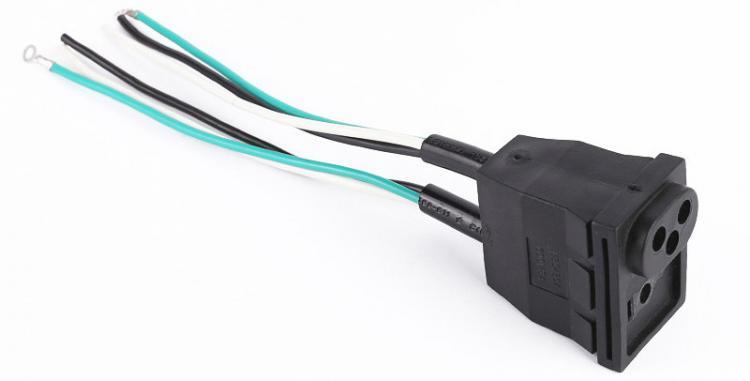

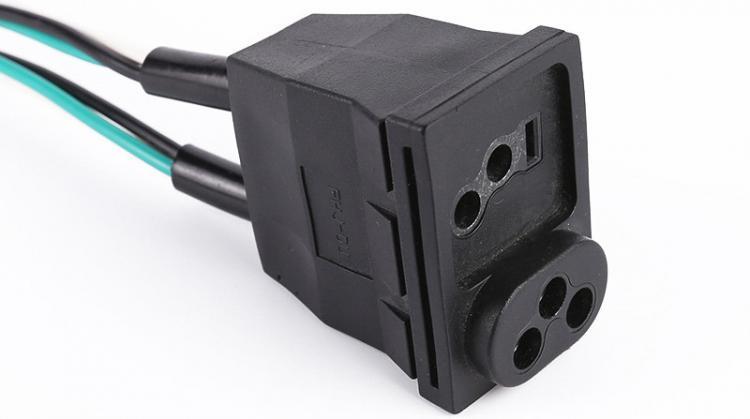

Ballast Reflector Light Lamp Power Cord one end is molded with Sun System Ballast sockets, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.
Package
Ballast Reflector Light Lamp Power Cord bulk packed with export cartons, pallets.
We offer a full range of power supply cords as well as adapters to switch from Hydro farm ballasts to other brands of reflectors, or from Hydro farm reflectors to other brands of ballasts. We also offer extension cords for your convenience, but keep in mind that some high-intensity light systems may not work at long lamp cord lengths due to ignitor range restrictions.
