Hydrofarm BASSP Socket Reflector Power Supply Cord
Hydrofarm BASSP Socket Reflector Power Supply Cord 10A,13/15/20 max 30 Amps 125V, 250V,300, 600 Voltage 3 prong receptacle molded with a custom length, color PVC or rubber.

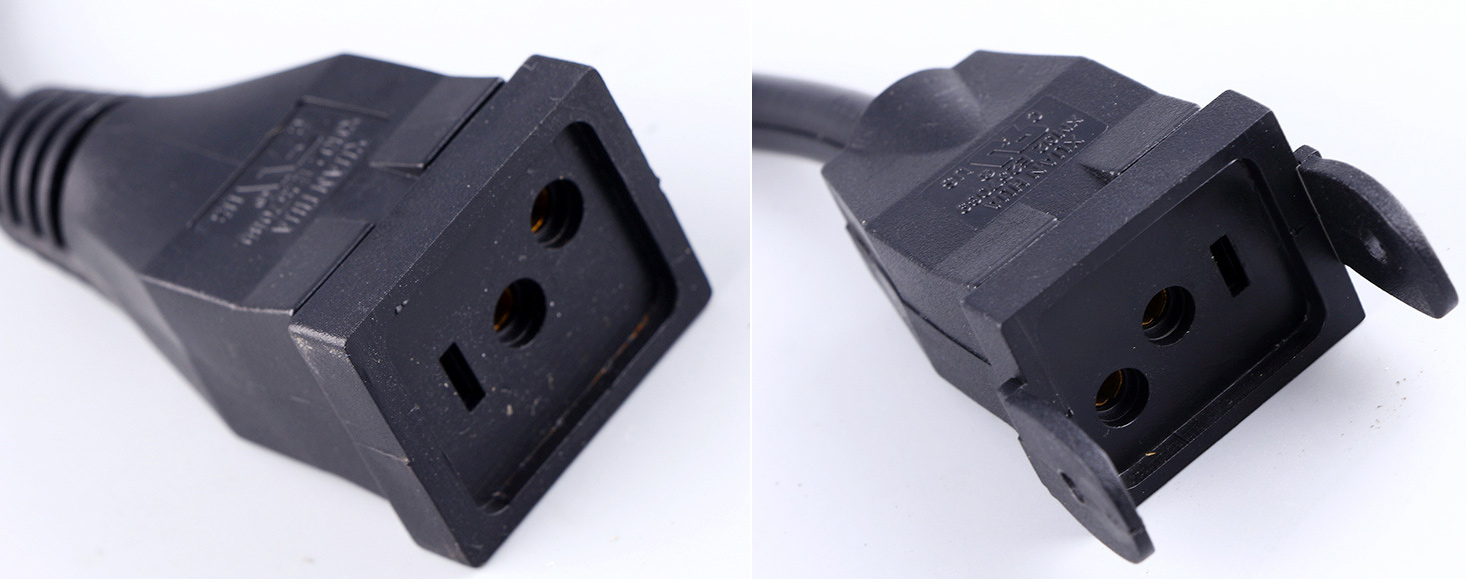

- Socket type: 3-conductor Sun System Ballast Socket
- Standard: Code D Sun System
- Approvals: UL, cUL
- Electricity:10/13/15/20/30A, 125/250/300/600V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: Sun System Ballast Plug, ROJ, Termination
- Quality System: ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel coated brass
- Cable Specifications: Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: XM02

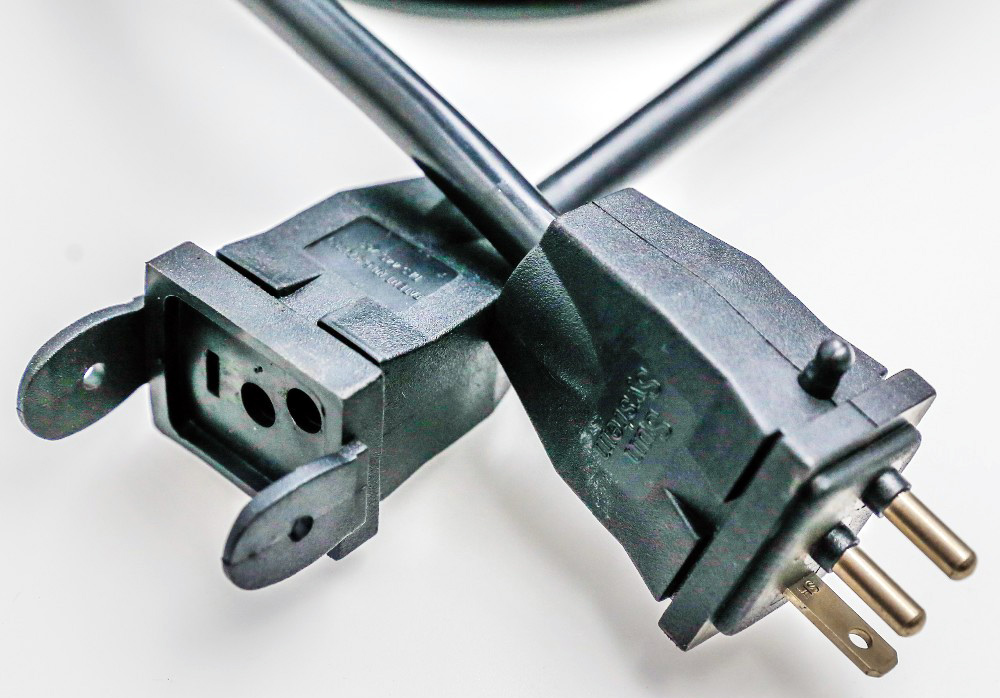

These cords receptacle into the male lamp cord plug on a Sun System ballast coming from the reflector. It allows a user to power your reflectors by custom length cable. Match cord gauge to your existing lamp cord gauge.
Cord and Electrical
| Power-supply Cord Cat. No. |
Cord or Wire AWG Size |
Electrical Rating (Amps/Volts) |
Code |
|---|---|---|---|
| XM02 | 18 | 10/125,250,300, 600 | d |
| 16 | 13/125,250,300,600 | d | |
| 14 | 15/125,250,300,600 | d | |
| 12 | 20/125,250,300,600 | d | |
| 10 | 30/125,250,300,600 | d |
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturer and supplies Hydrofarm BASSP Socket Reflector Power Supply Cord, custom color, the other end can be stripped, ROJ with custom length.
Common Termination
Ballast reflector power cord one end is molded with Sun System Ballast plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylone insulated.
Package

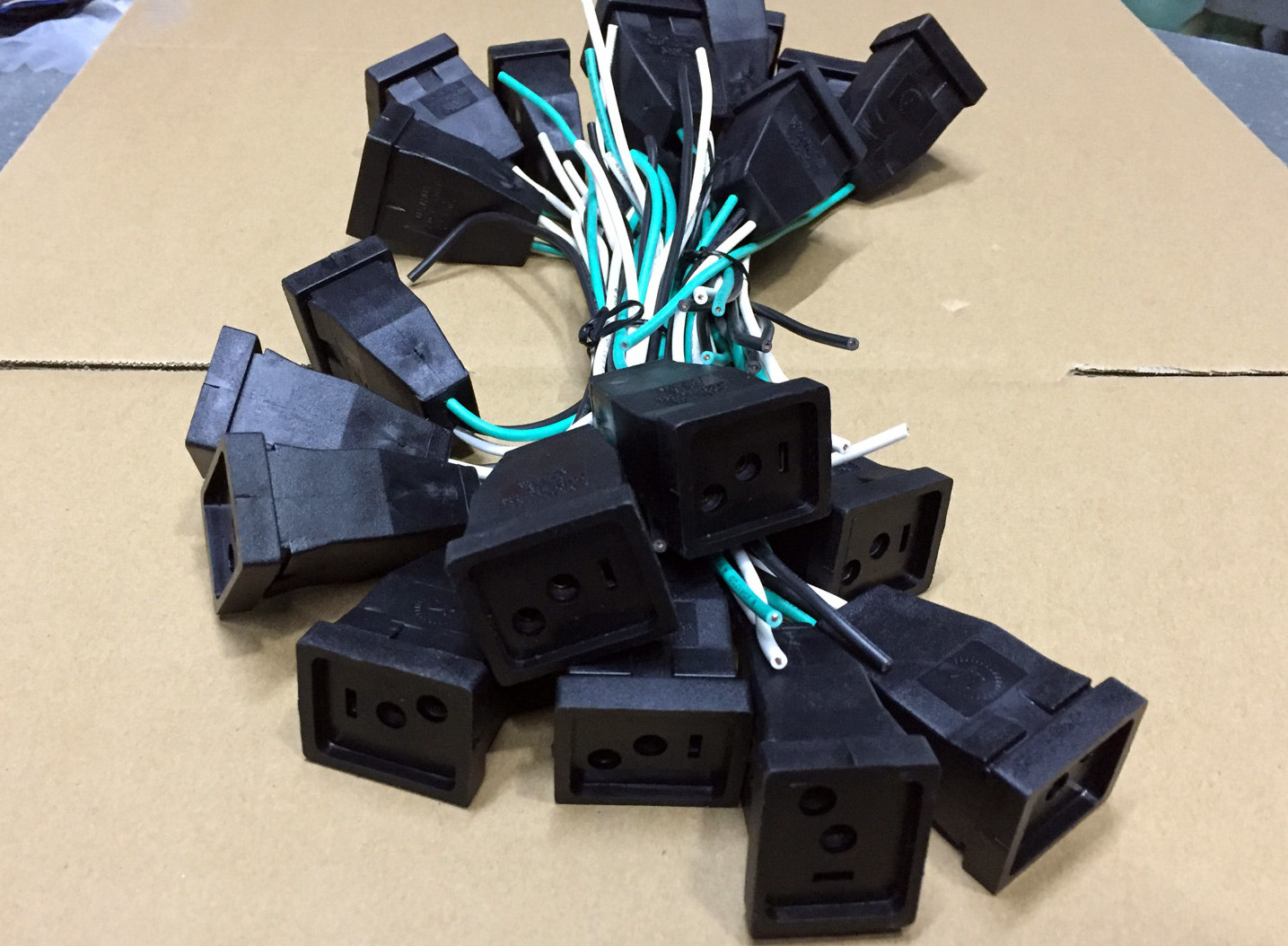

Hydrofarm BASSP Socket Reflector Power Supply Cords bulk packed with export cartons, pallets.
We offer a full range of power supply cords as well as adapters to switch from Hydro farm ballasts to other brands of reflectors, or from Hydro farm reflectors to other brands of ballasts. We also offer extension cords for your convenience, but keep in mind that some high-intensity light systems may not work at long lamp cord lengths due to ignitor range restrictions.
