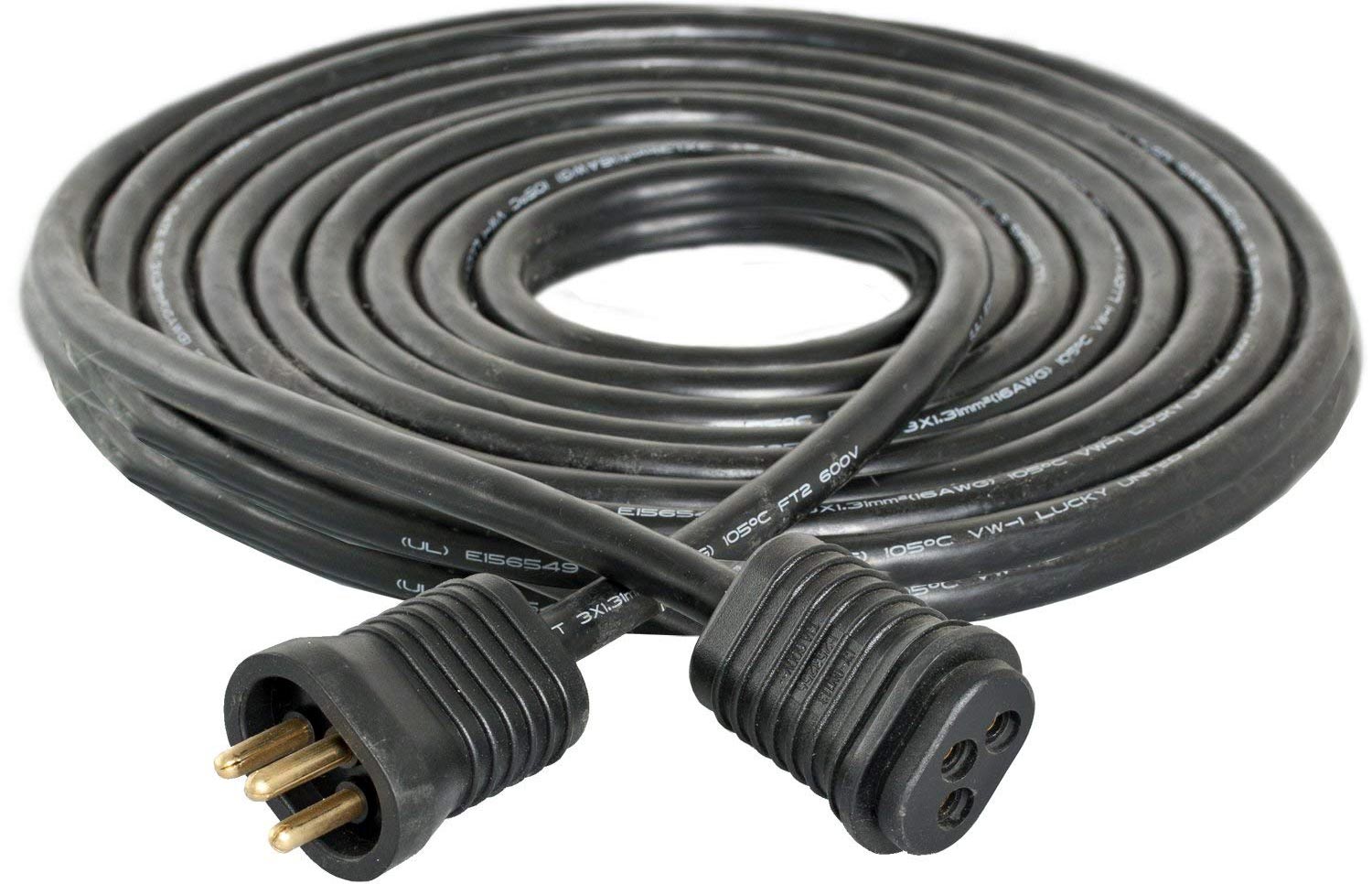

Sun System Ballast Power Supply Cords
Sun System Ballast Power Supply Cords 10A,13/15/20 max 30 Amps 125V, 250V,300, 600 Voltage 3 prong plug molded with custom long, color PVC or rubber.
- Plug type: 3-conductor Sun System Ballast Plug
- Standard: Code D Sun System
- Approvals: UL, cUL
- Electricity:10/13/15/20/30A, 125/250/300/600V
- Number of Poles and Wires:2 poles 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: Sun System Ballast Socket, ROJ, Termination
- Quality System:ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: FT-4, XM03
These cords plug into the female lamp cord receptacle on a Sun System ballast coming from the reflector. Allows a user to power your reflectors by custom length cable. Match cord gauge to your existing lamp cord gauge.
Cord and Electrical
| XM03 | 18 | 10/125,250,300, 600 | d |
| 16 | 13/125,250,300,600 | d | |
| 14 | 15/125,250,300,600 | d | |
| 12 | 20/125,250,300,600 | d | |
| 10 | 30/125,250,300,600 | d |
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies Sun System Ballast, custom color, the other end can be stripped, ROJ with custom length.
Common Termination

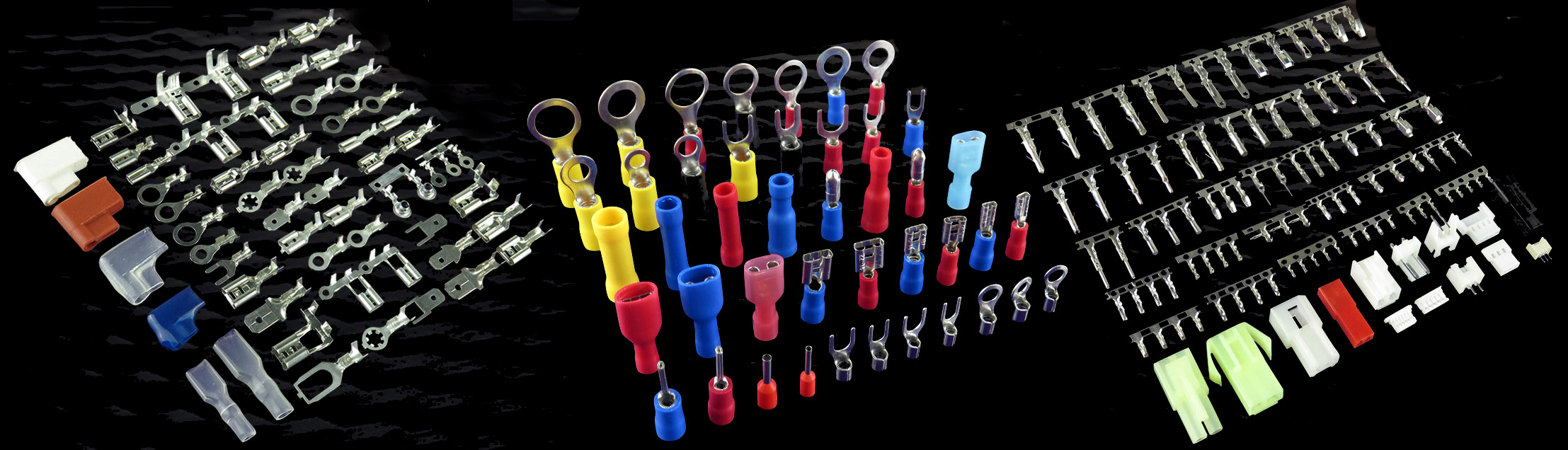

Ballast reflector power cord one end is molded with Sun System Ballast plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.
Package
Ballast reflector power cord bulk packed with export cartons, pallets.
We offer a full range of power supply cords as well as adapters to switch from Hydro farm ballasts to other brands of reflectors, or from Hydro farm reflectors to other brands of ballasts. We also offer extension cords for your convenience, but keep in mind that some high-intensity light systems may not work at long lamp cord lengths due to ignitor range restrictions.
