US IEC C19 Power Supply Cord
US IEC C19 Power Supply Cord 15 Amps 125 Voltage three prong plug molded with custom long ,color PVC or rubber cable and IEC 320 C19 connector.
- Plug type: US NEMA 5-15 Plug
- Standard:NEMA 5-15P Straight
- Oppsite End:IEC 320 C19
- Approvals:UL, cUL
- Electricity:15A, 125V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- Quality System:ISO9001:2008
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:XH202/XH008A
Plug Standard America NEMA 5-15P earthed plug with Maximum Electric Current rating 15A ,Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded, Connector Standards IEC 60320 (320) C-19, C19 locking,C-19 right angle, C19 left angle tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.
US Power Cord with IEC 60320 Receptacles
US IEC C19 Power Supply Cord are black and white as standard color. gray and custome color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

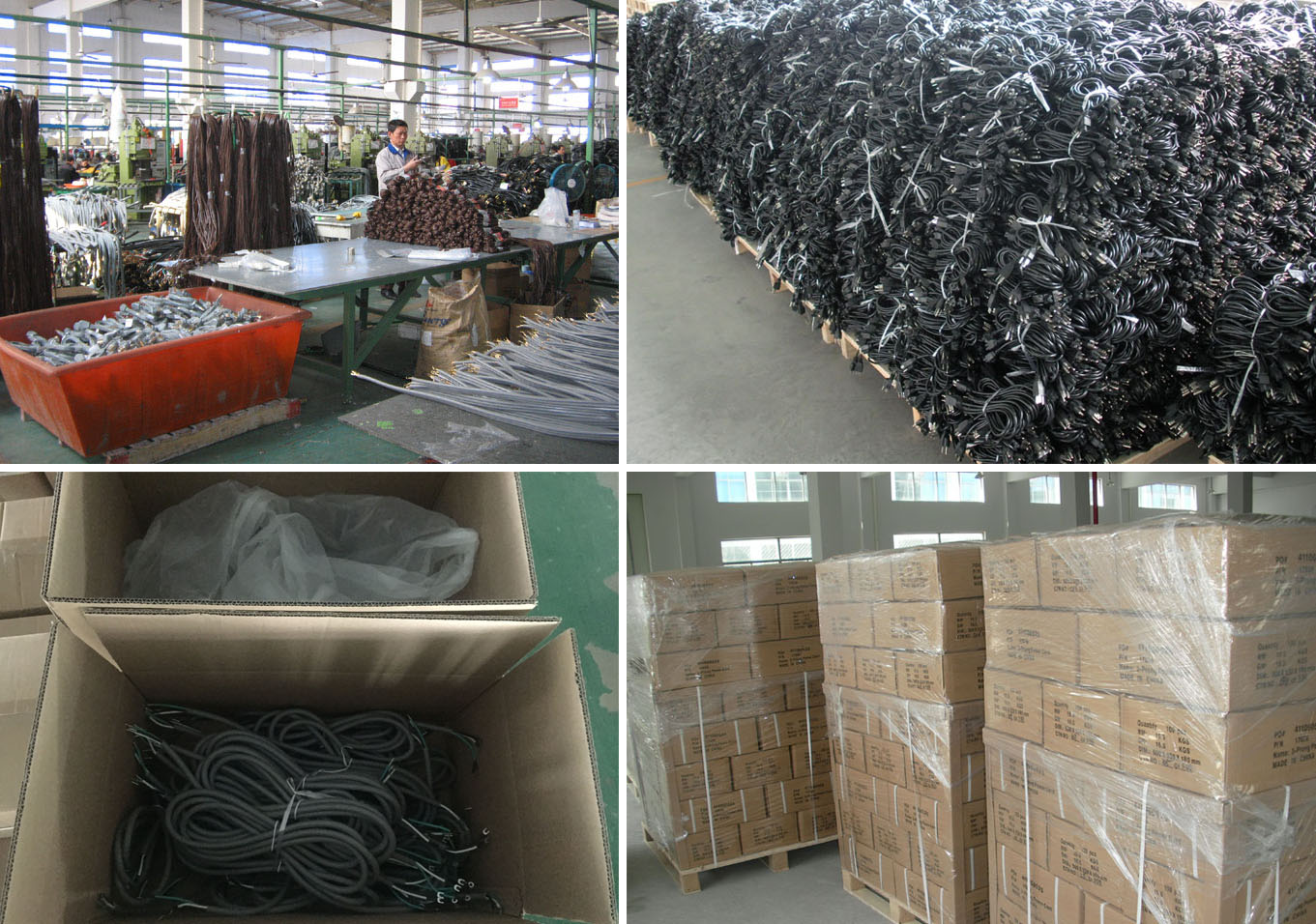

Package
US IEC C19 Power Supply Cord bulk packed with export cartons, pallets.
