Medical Hospital Grade Right Angle Power Cord 5-15P
Manufacturer Base Hospital Grade Right Angle Power Cord 5-15P with Green Dot Custom Length, Custom Color PVC, Rubber Flexible Cable.
- Plug type: US 15A hospital grade plug with a green dot
- Standard: NEMA 5-15P hospital grade
- Approvals: UL, cUL
- Electricity:15A, 125V
- Number of Poles and Wires:2 poles 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination
- Quality System:ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: XH216D

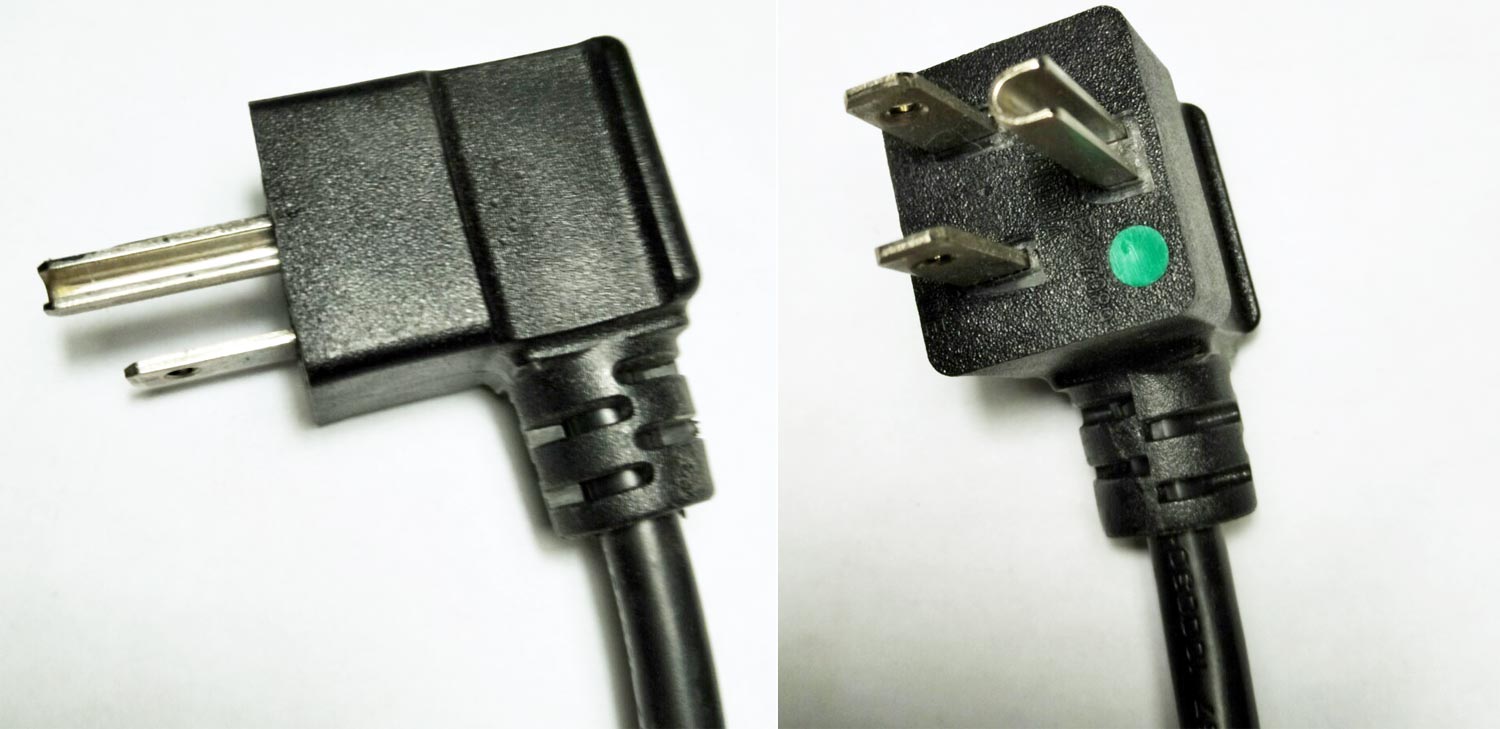

Plug Standard America NEMA 5-15P medical grade plug with green dot Maximum Electric Current rating 15A, Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded,hospital-grade power cord standards- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49.
NEMA 5-15P Hospital Grade Power Cord is black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies 15 Amps Medical grade Power Cord, custom color, the other end can be stipped, ROJ with custom length.

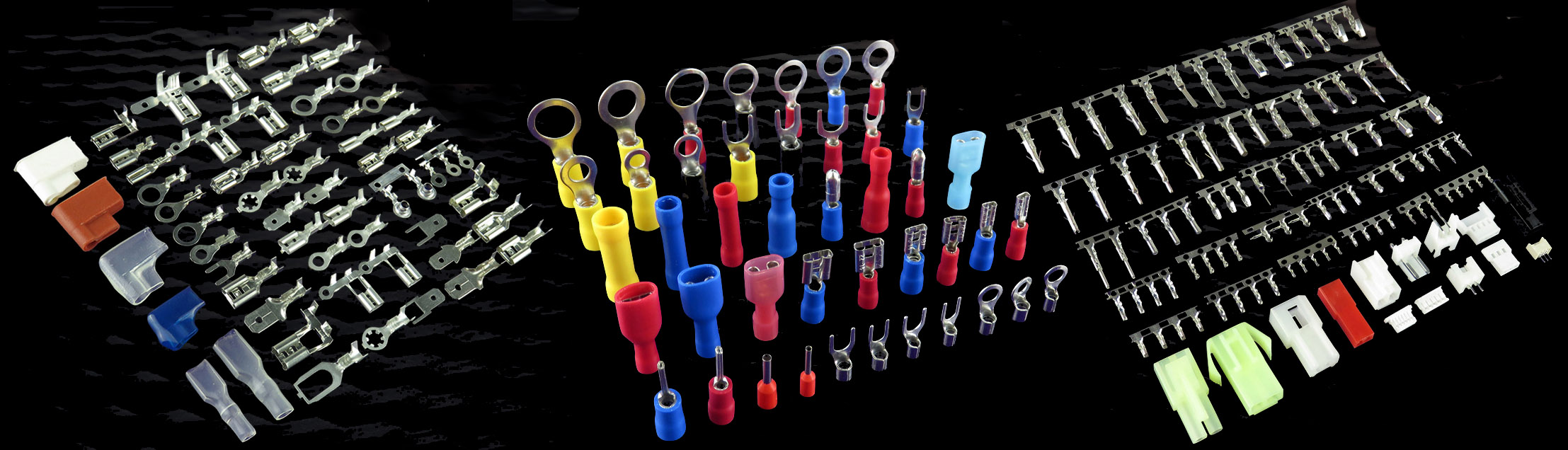

Common Termination
Hospital Grade Right Angle Power Cord 5-15P, one end is molded with NEMA standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.
IEC 60320 Connectors

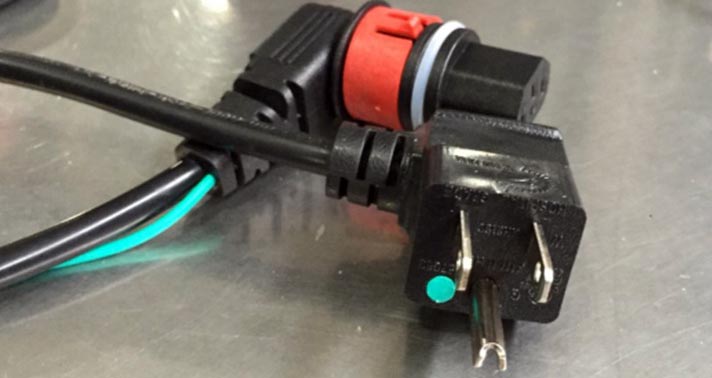

Hospital Grade Right Angle Power Cord 5-15P to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.
IEC 60320 C13 Power Cord Straight
IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Waterproof
IEC 60320 C13 Power Cord Locking
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C19 Power Cord
IEC 60320 C19 Power Cord Right Angle

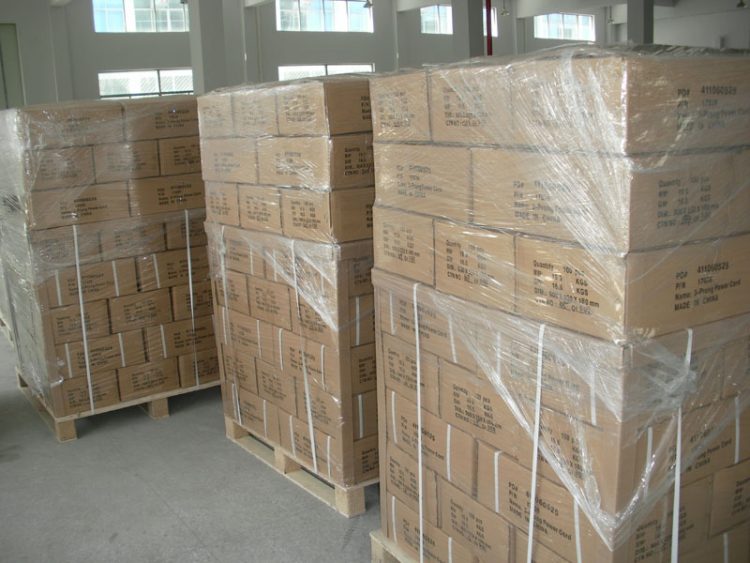

Package
NEMA 5-15P Hospital Grade Power Cord bulk packed with export cartons, pallets.
Power cords used in hospitals or medical environments must conform to strict standards for grounding reliability, assembly integrity, strength, and durability, as well as regulatory standards such as Underwriters Laboratories. Before granting approval, UL applies rigorous tests to ensure that the cable operates at peak levels. Once a product is approved, it is stamped with the green dot, which is the trademark of hospital grade UL cords. These standards are in place to ensure that the hospital-grade power cords are safe and reliable for use in demanding hospital environments. Our hospital-grade NEMA 5-15P power cord is UL/CSA approved and RoHS certified.
