Manufacturer Base Green Dot Medical Hospital Grade Power Cord 5-15P Custom Length Power Supply Cord, UL Listed

  • Samples date: 7 Days,Free with freight collect
  • MOQ:5000 Pcs
  • Production order shipping date:20-25 days
  • Shipping Terms: By Air, Sea
  • Payment Terms: Wire Transfer, Paypal
  • Packing:Export cartons,pallets
Tags:
Share

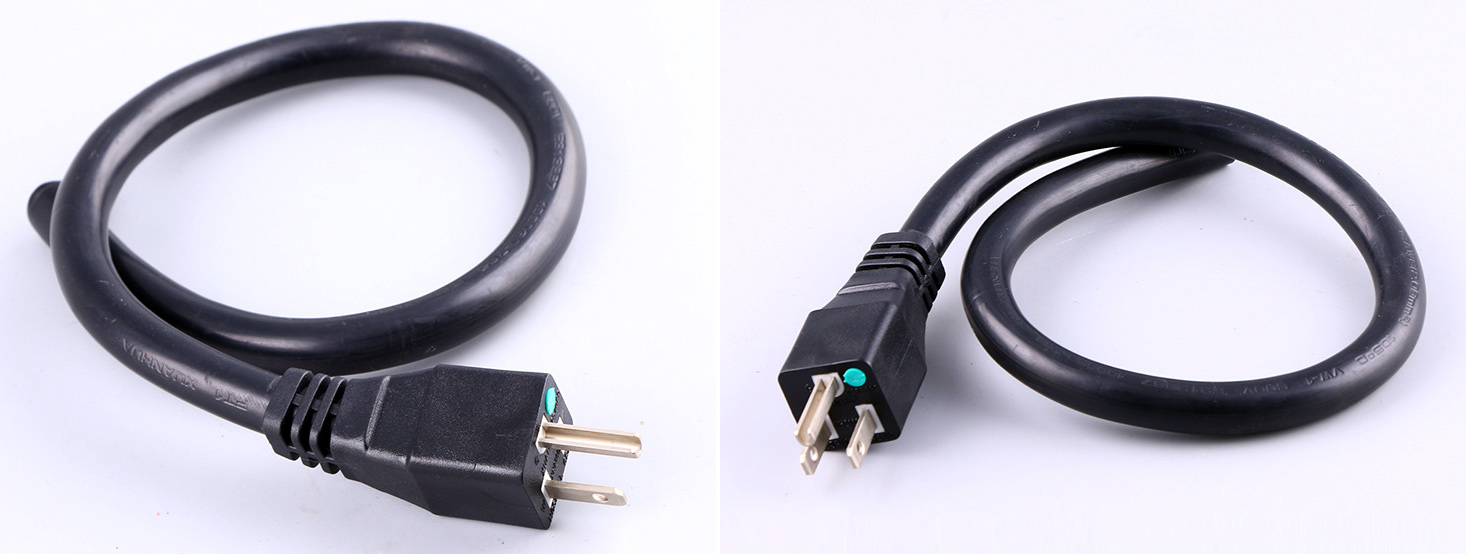

NEMA 5-15P Hospital Grade Power Cord

NEMA 5-15P Hospital Grade Power Cord 15 Amps 125 Voltage medical plug molded with custom long ,color PVC or rubber.

  • Plug type: US 15A hospital grade plug with green dot
  • Standard:NEMA 5-15P hospital grade
  • Approvals:UL, cUL
  • Electricity:15A, 125V
  • Number of Poles and Wires:2 pole 3 wires
  • Cable length:1.0 meter, 1.5m, 1.8m,custom length
  • End Options:ROJ, Termination
  • Quality System:ISO9001:2008
  • Color: White and black are normal, Custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Cable Specifications: Standard and custom made
  • Wire Jacket Material: PVC, Rubber, TPE, Textile
  • Environmental Certifications: RoHS, REACH, PAHS
  • Model Number: XH216D

Plug Standard America NEMA 5-15P medical grade plug with green dot Maximum Electric Current rating 15A , Maximum Voltage 125V, Number of Poles and Wires 2 poles, 3 wires Grounded,hospital-grade power cord standards- tested to ANSI/UL 62 and 817 and can/CSA C22.2 no. 21 and 49

NEMA 5-15P Medical Grade Power Supply Cord

NEMA 5-15P Hospital Grade Power Cord is black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord, America AC power cables available. Terminated, custom stripping.

Available Opposite End

Normal Stripped, Splitter and ROJ

We manufacturers and supplies 15 Amps Medical grade Power Cord, custom color, the other end can be stipped, ROJ with custom length.

end-strippedCable-ROJ

Common Termination

NEMA 5-15P Hospital Grade Power Cord, one end is molded with NEMA  standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.

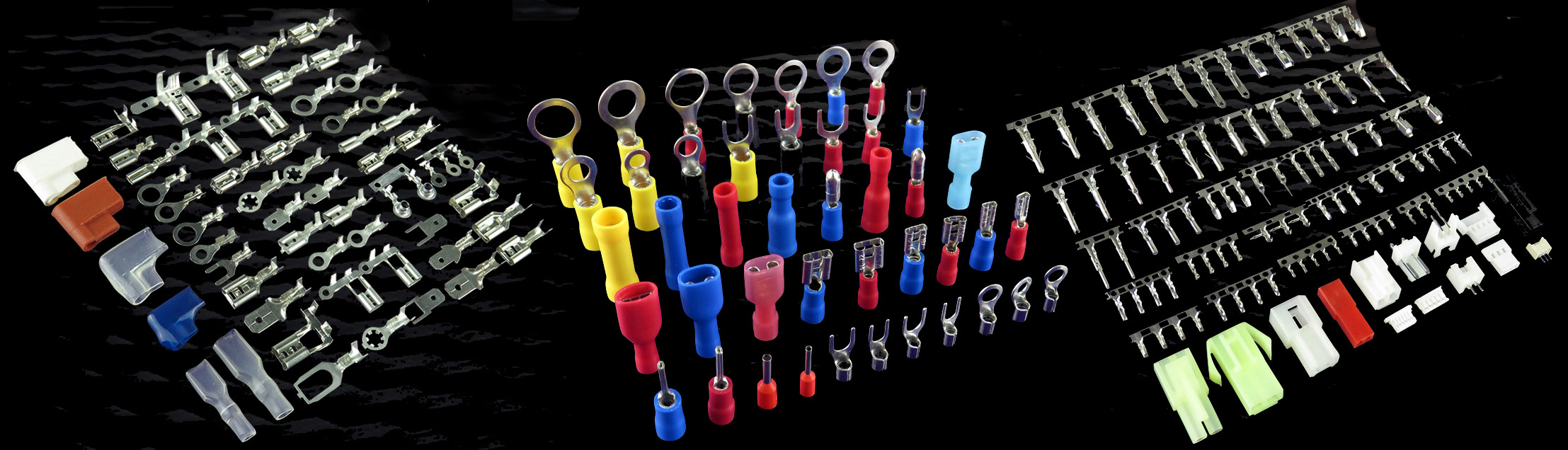

Power Cord Terminals

IEC 60320 Connectors

NEMA 5-15P Hospital Grade Power Cord to IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Straight

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Right Angle

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Waterproof

IEC 60320 C13 Power Cord Locking

IEC 60320 C13 Power Cord Locking

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord

IEC 60320 C15 Power Cord Right Angle

IEC 60320 C15 Power Cord Right Angle

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord

IEC 60320 C19 Power Cord Right Angle

IEC 60320 C19 Power Cord Right Angle

Package

NEMA 5-15P Hospital Grade Power Cord bulk packed with export cartons, pallets.

Power cords used in hospitals or medical environments must conform to strict standards for grounding reliability, assembly integrity, strength, and durability, as well as regulatory standards such as Underwriters Laboratories. Before granting approval, UL applies rigorous tests to ensure that the cable operates at peak levels. Once a product is approved, it is stamped with the green dot, which is the trademark of hospital grade UL cords. These standards are in place to ensure that the hospital-grade power cords are safe and reliable for use in demanding hospital environments. Our hospital-grade NEMA 5-15P power cord is UL/CSA approved and RoHS certified.
