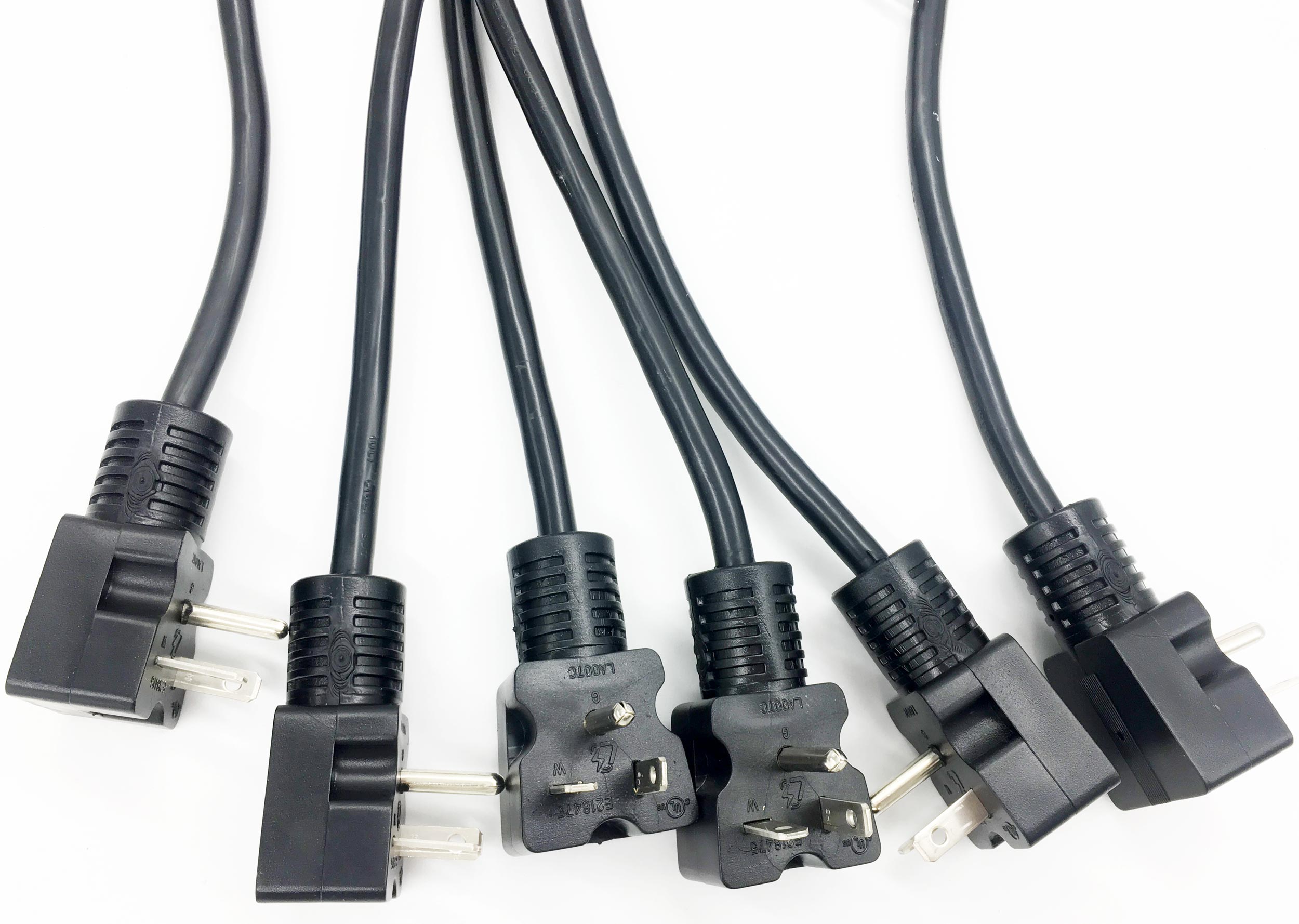

NEMA 5-20P Power Cord
NEMA 5-20 power cord angle plug mold with a custom length, custom color PVC, Rubber or TPE sheathed flexible cables.
- Plug type: 3 Prong 20A heavy duty plug
- Standard: NEMA 5-20
- Approvals: UL, cUL
- Electricity:20A, 125V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination
- Quality System: ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel coated brass
- Cable Specifications: Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: LA007C
Plug Standard America NEMA 5-20P plug Maximum Electric Current rating 20A, Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Plug.
NEMA 5-20 Power Cord Angle Plug are black and white as standard color. gray and custom color are available. Custom length and shielded America power cord heavy duty,America AC power cables available. Terminated, custom stripping. Heavy Duty – Featuring and 5-20P Plug Rated for 20 Amps and 125V can be used for cry to currency mining and other high-power computer needs Manufactured to the highest standards and tested for Voltage Hi-Potential, Continuity, Polarity and are UL listed.
Available Opposite End
Normal Stripped, Splitter and ROJ
We manufacturers and supplies NEMA 5-20P Power Cord, custom color, the other end can be stripped, ROJ with custom length.
Common Termination
NEMA 5-20 Power Cord Angle Plug, one end is molded with NEMA standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
IEC 60320 Connectors
Power supply cord 5-15 angle plug to IEC 320 C5 laptop, IEC C13 computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.
IEC 60320 C13 Power Cord Straight
IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Waterproof
IEC 60320 C13 Power Cord Locking
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C19 Power Cord
IEC 60320 C19 Power Cord Right Angle
Package
NEMA 5-20 Power Cord Angle Plug bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.

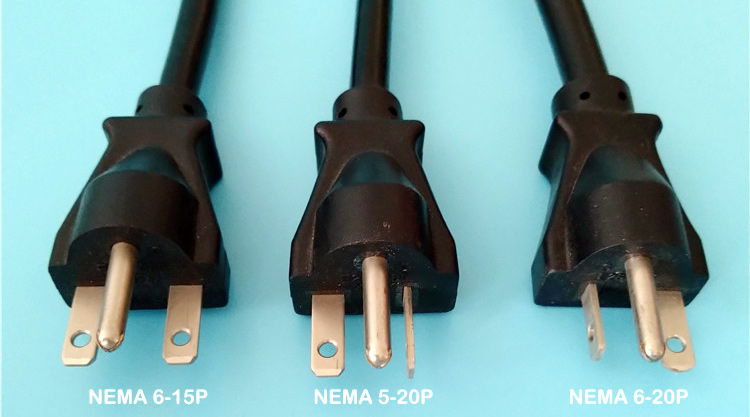

Differences of NEMA 5-20P, NEMA 6-20P, NEMA 6-15P
