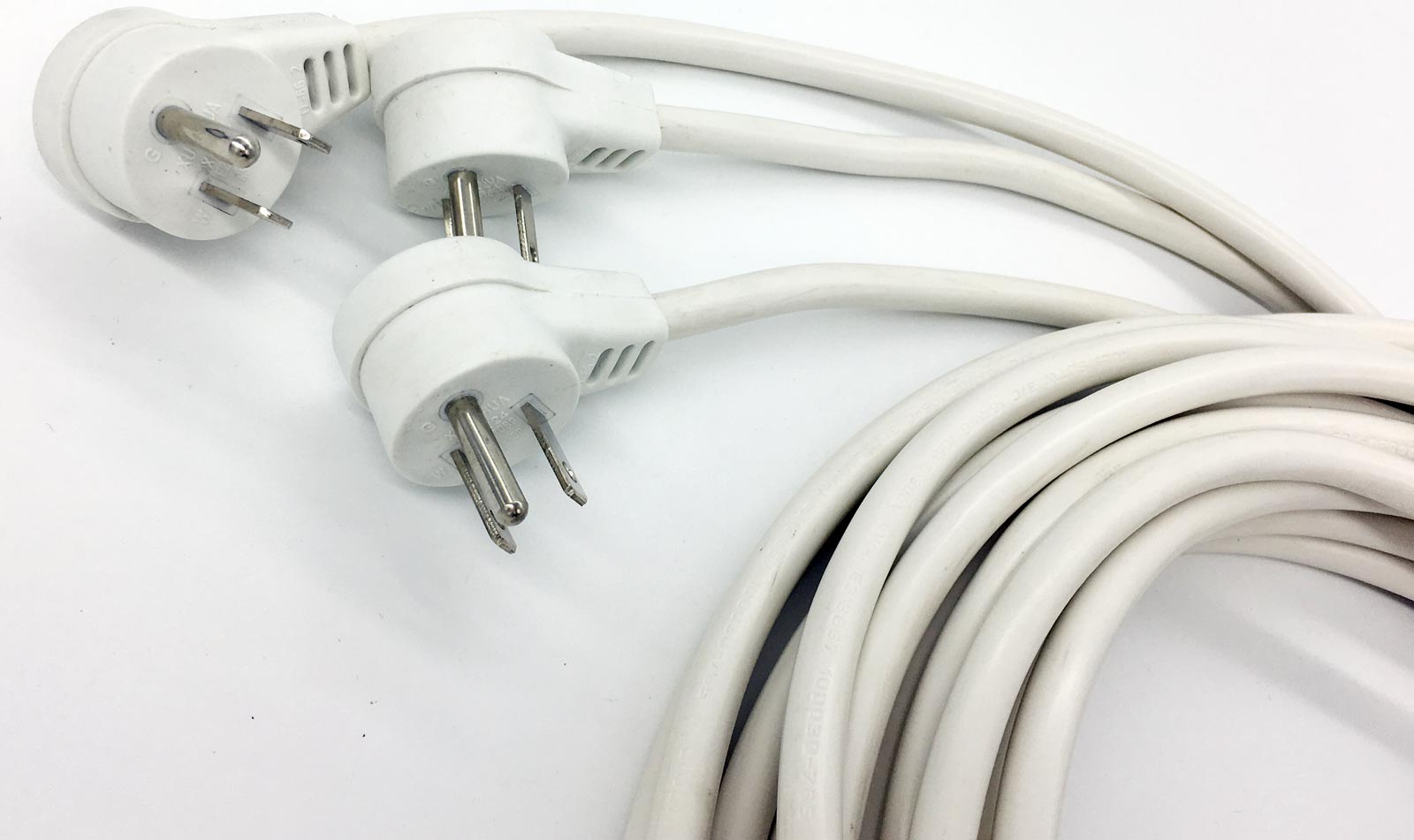

Offset Right Angle Plug / Offset Left Angle Cord Power Supply Cord NEMA 5-15
- Plug type: Offset right angle plug / left angle plug
- Standard: NEMA 5-15P
- Approvals: UL, cUL
- Electricity:15A, 125V
- Number of Poles and Wires:2 poles 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination
- Quality System: ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: XH232
Plug Standard America NEMA 5-15P plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Type B Plug
Directions Angle Power Power Supply Cord 5-15P
Angle power supply cords are black and white as a standard color. gray and custom color are available. Custom length and shielded America power cord heavy duty, America, Canada AC power cables available. Terminated, custom stripping.
Available Opposite End

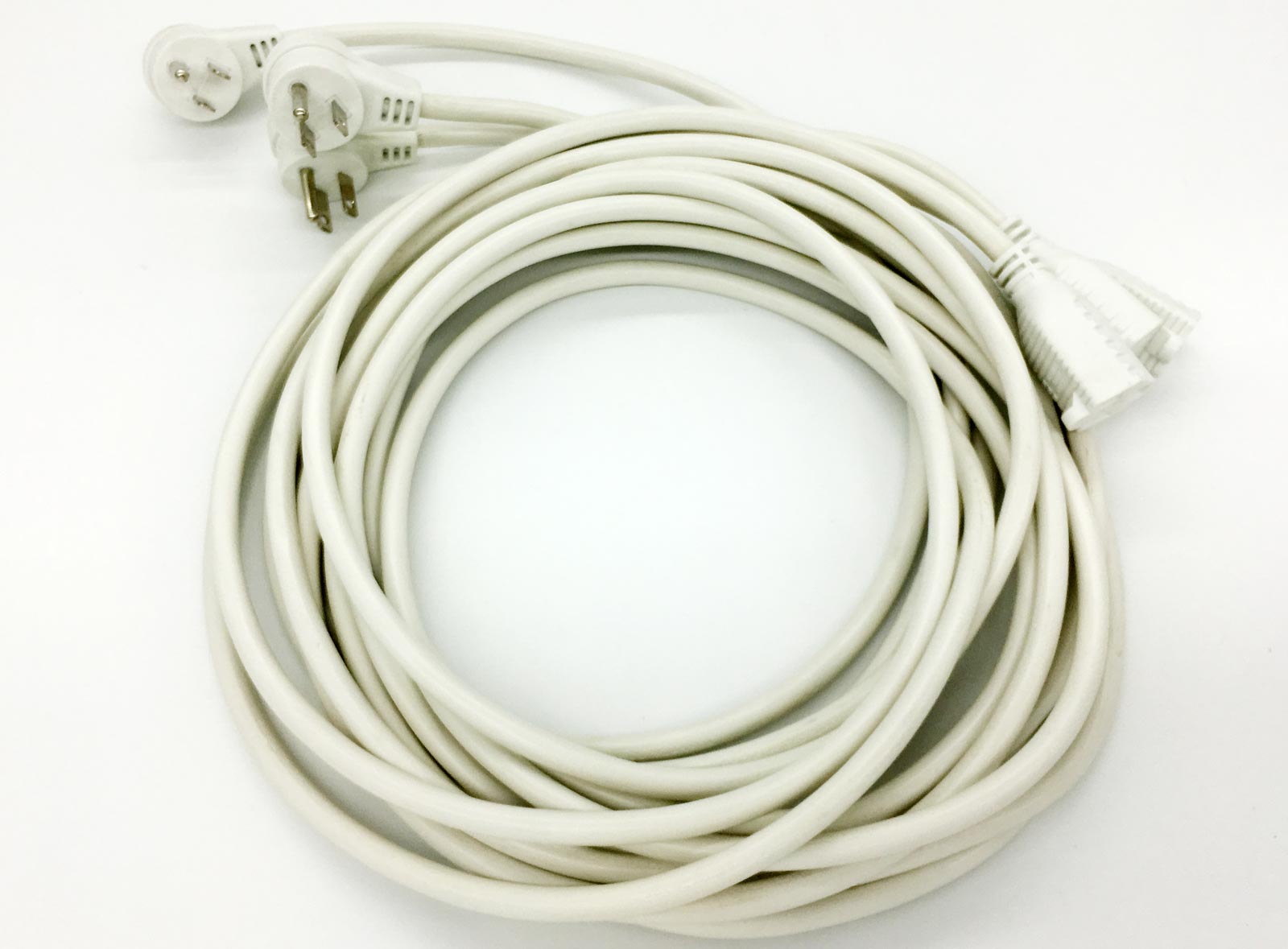

Normal Stripped, Splitter and ROJ
We manufacturers and supplies Angle plug AC power cable, custom color, the other end can be stripped, ROJ with custom length.
Common Termination
Angle power supply cords, one end is molded with NEMA 5-15 standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals, fork with heat shrink or nylon insulated.
IEC 60320 Connectors

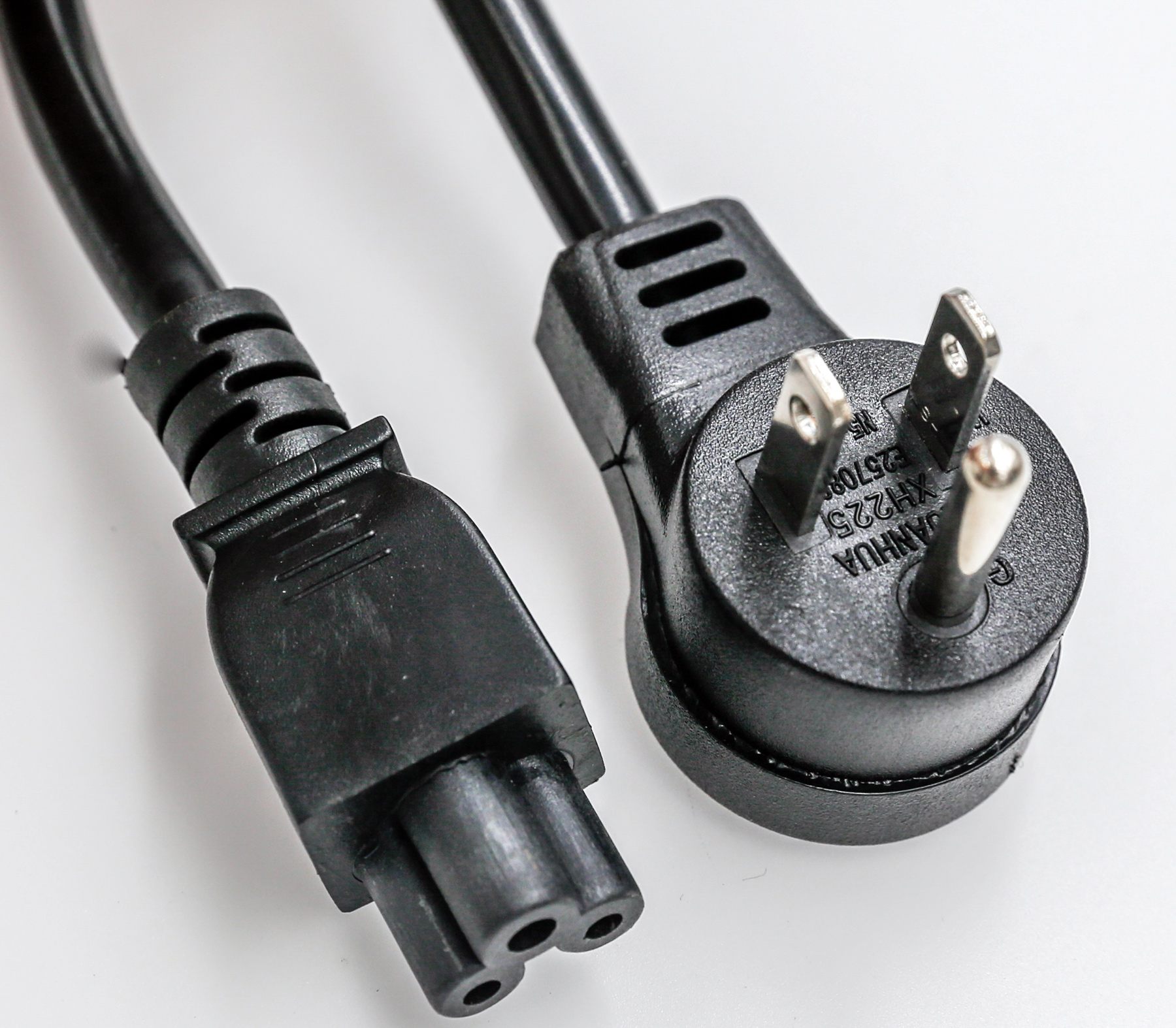

US Angle Power Cord NEMA 5-15P to IEC 320 C5 laptop, IEC C13 straight, computer power cable and molded with IEC C19 as PDU power cords are normal versions of America ac power cords with IEC connectors.

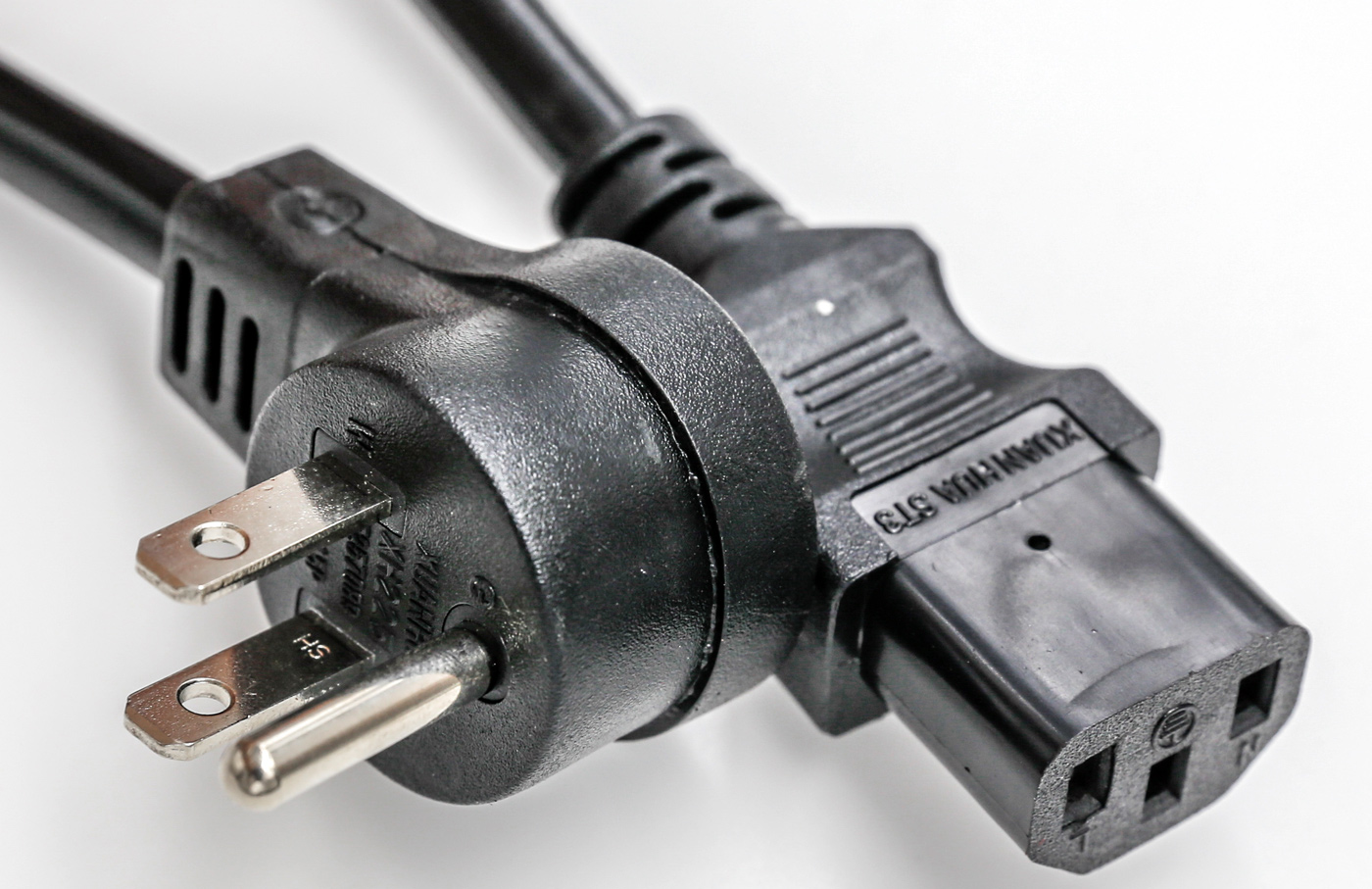

IEC 60320 C13 Power Cord Straight

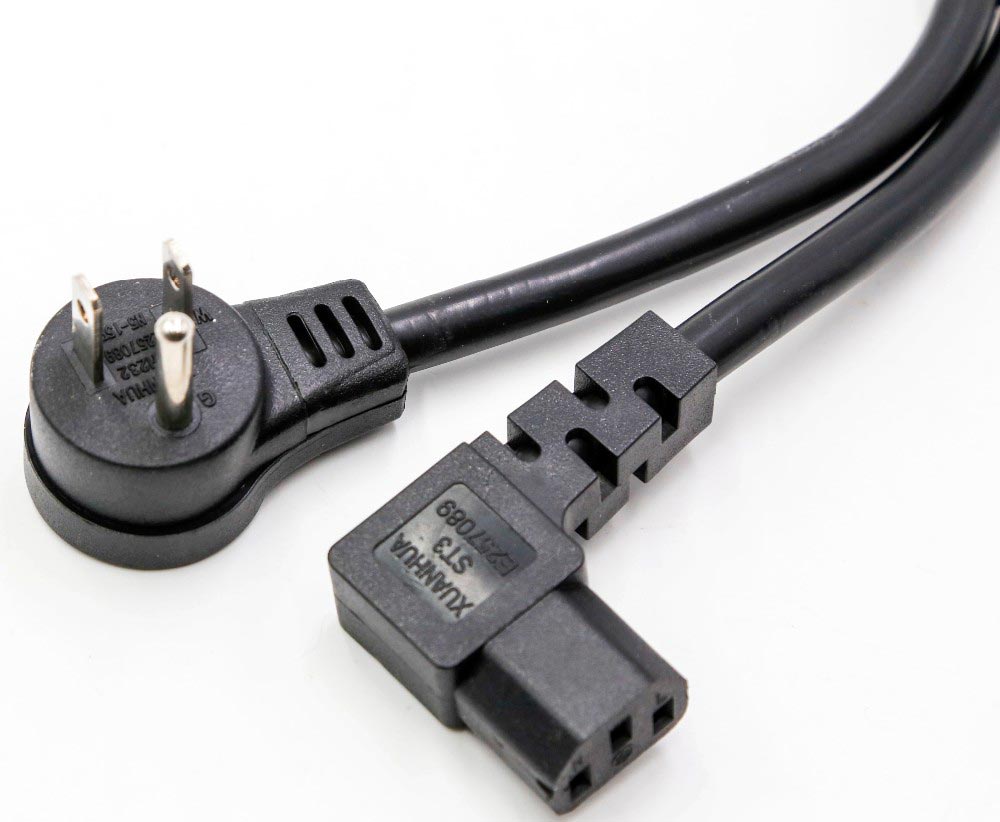

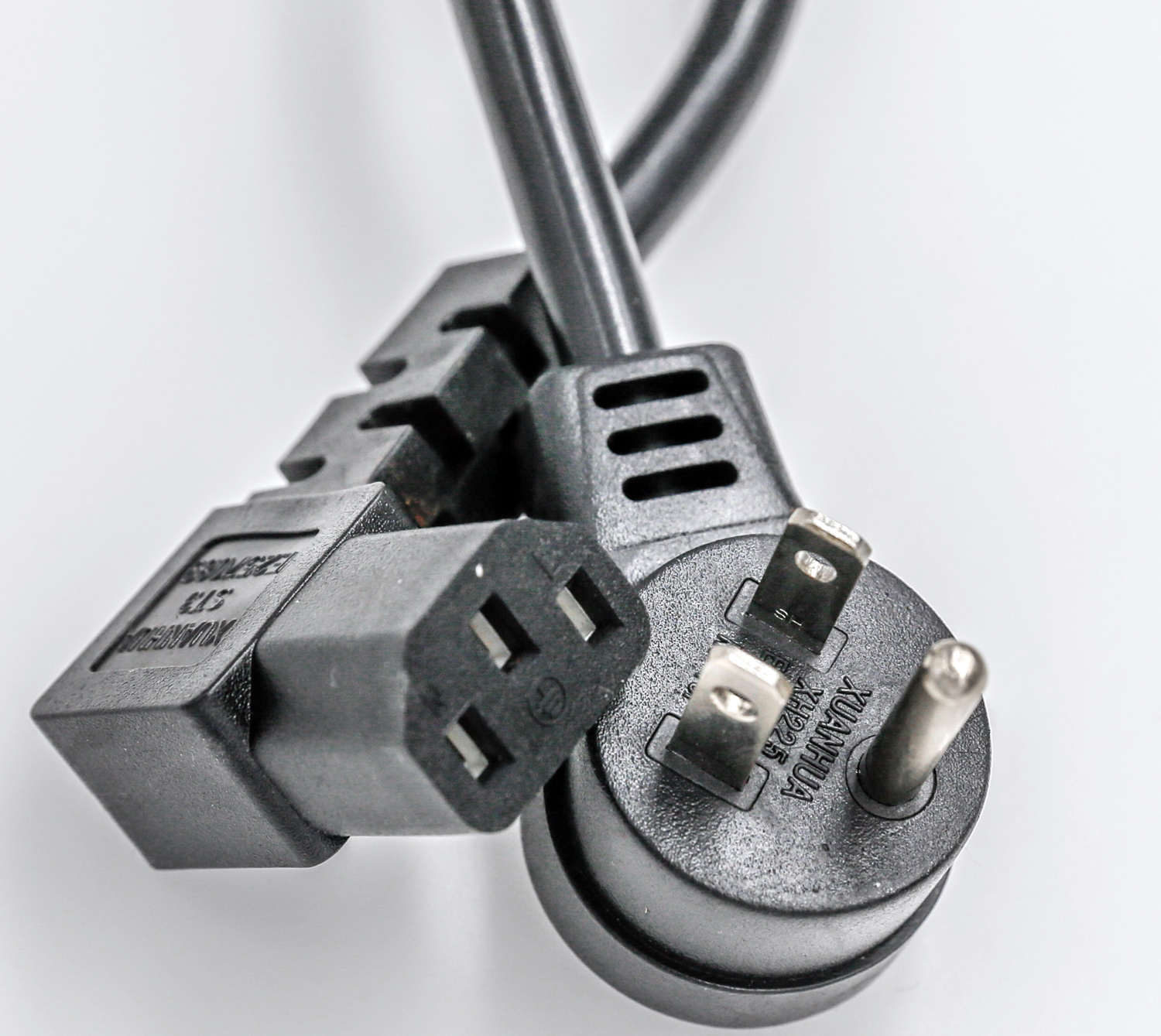

IEC 60320 C13 Power Cord Right Angle
IEC 60320 C13 Power Cord Waterproof

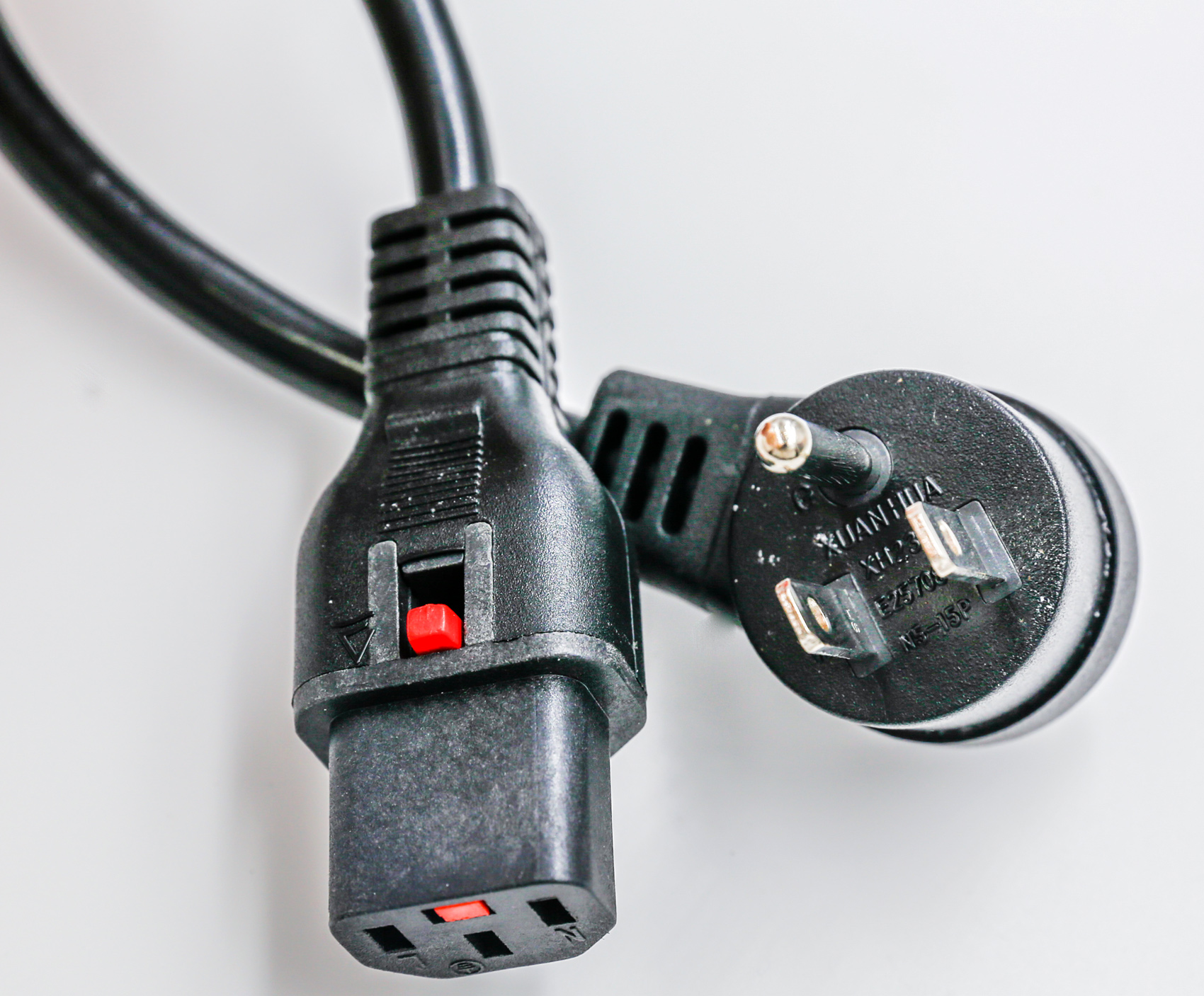

IEC 60320 C13 Power Cord Locking
IEC 60320 C15 Power Cord
IEC 60320 C15 Power Cord Right Angle
IEC 60320 C19 Power Cord
IEC 60320 C19 Power Cord Right Angle
NEMA 5-15R Extension Socket
Package

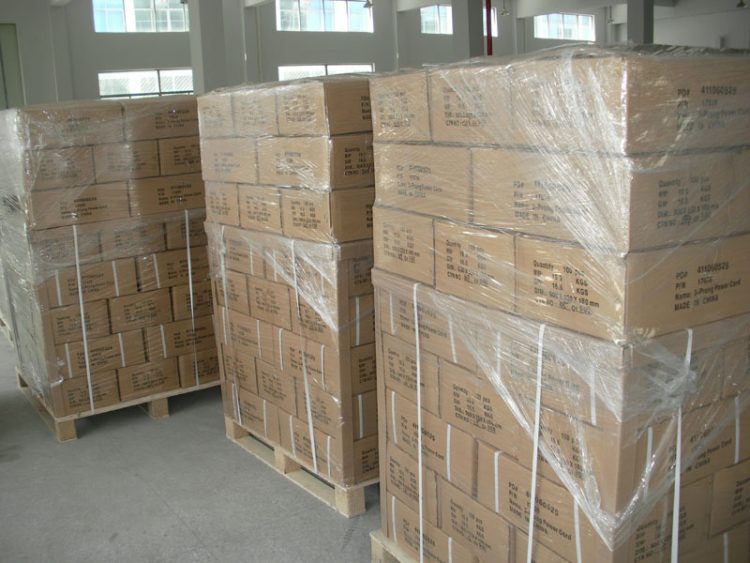

Angle power supply cords bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
