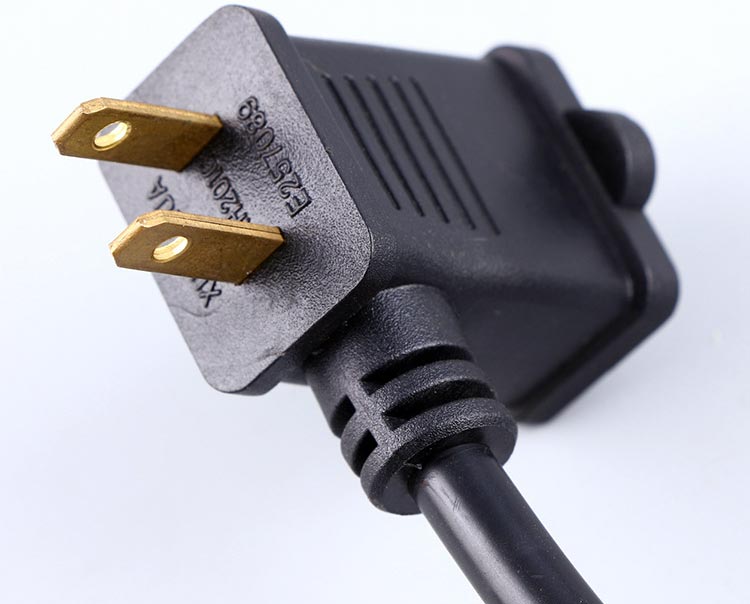

Piggy-back Power Cable Plug with Socket
- Plug type: 2 pole 2 wire plug
- Standard:NEMA 1-15P
- Approvals:UL
- Electricity:15A, 120VPiggyback Power Cable
- Number of Poles and Wires:2 pole 2 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options:ROJ, Termination, IEC 320 C7, C17
- Quality System:ISO9001:2008
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:XH201C
Plug Standard America NEMA 1-15P plug Maximum Current rating 15A Maximum Voltage 120V Number of Poles and Wires 2 poles, 2 wires. custom long Piggyback power cord used for control of pumps or motors Permitted to carry 10 Amp Load @ 120 Volts per NEC,Suitable for indoor and outdoor use, Nema 5-15M / 5-15R to ROJ Connection,Carries RoHS, UL, CSA Certification
Piggyback power cable are black and white as standard color. gray and custome color are available. Custom length and shielded America power cord heavy duty,Australia AC power cables available. Terminated, custom stripping.
This power cord or power cable has connectors for the North American (NA) market. It features a molded NEMA 5-15P series piggyback plug to an ROJ (Remove Outer Jacket),This is a series piggy back cord which means a switch connected to the black and white free leads controls the power to the device plugged into the female end. The cord is composed of custom long and ROJ or terminated
Available Opposite End

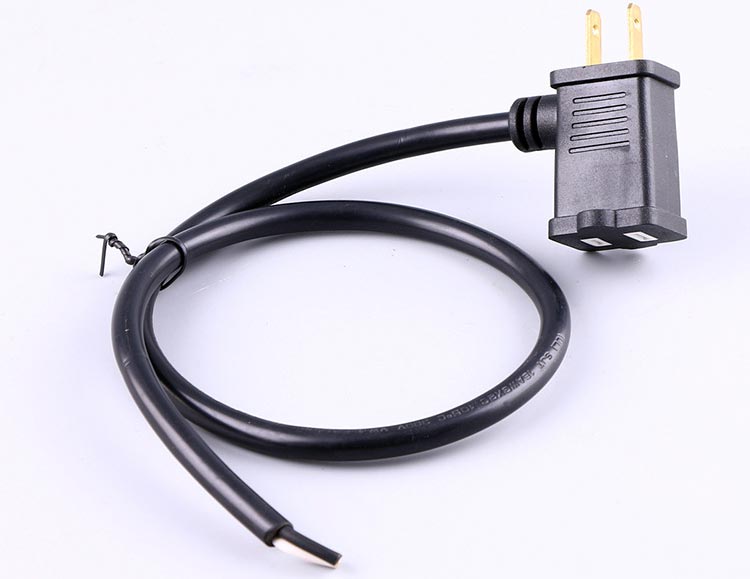

Normal Stripped, Splitter and ROJ
We manufacturers and supplies Piggyback power cable,custom color,the other end can be stipped ,ROJ with custom length.
Common Termination
Piggyback power cable, one end is molded with NEMA standard sheet plugs, the opposite could be terminated with types of terminals such as grounding rings terminals ,fork with heat shrink or nylone insulated.
IEC 60320 Connectors
Piggyback power cable to IEC 320 C7, IEC C17 power supply cords are normal versions of USA power cords, AC power cords with IEC 320 conntors

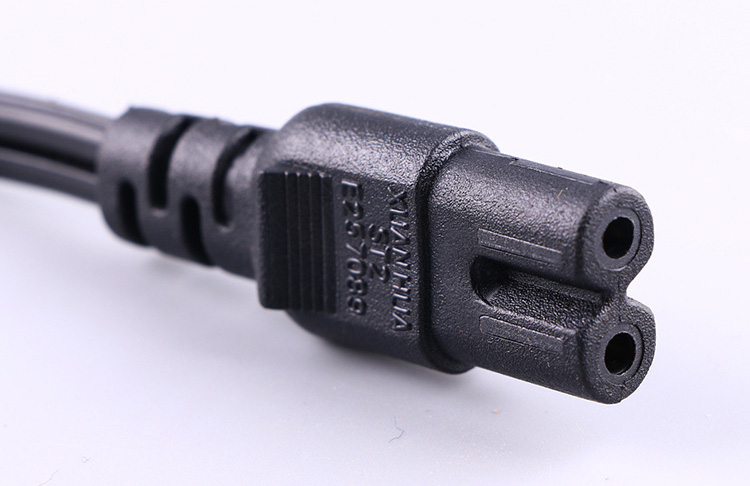

IEC 60320 C7 Connector

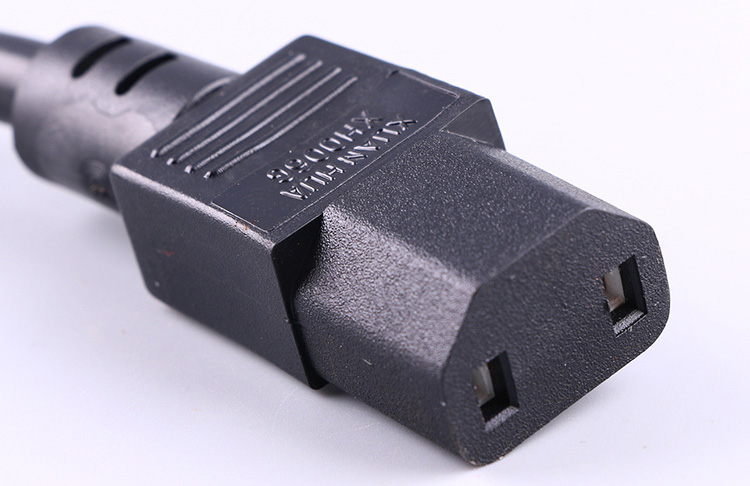

IEC 60320 C17 Connector

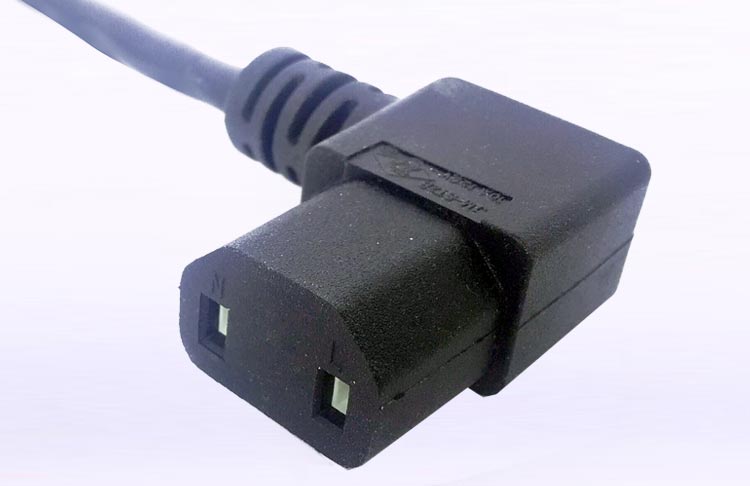

IEC 60320 C17 Connector Right Angle
Power Cord Available Swtiches
US power cord 1-15P are used to molded with online switches for salt lamp power supply cords.
303 Switch
304 Switch
Gear Switch
Dimmer Switch
The color of online swtiches mostly white, black and transparent
Package
Piggyback power cable bulk packed with export cartons, pallets.
HKTC manufacturers and supplies electrical AC power supply cords for use in USA, Canada and all countries in the world. Our extensive and complete USA power cord line includes power receptacle outlets, Plug, weatherproof receptacle outlets, sockets, multiple outlet power strips, power supply cords, power cable wire and plug adapters . Contact us for North America power cords as China leading USA power cord manufacturer and supplier.all of US power cords are approved by UL, cUL with Rohs and Reach compliant.
