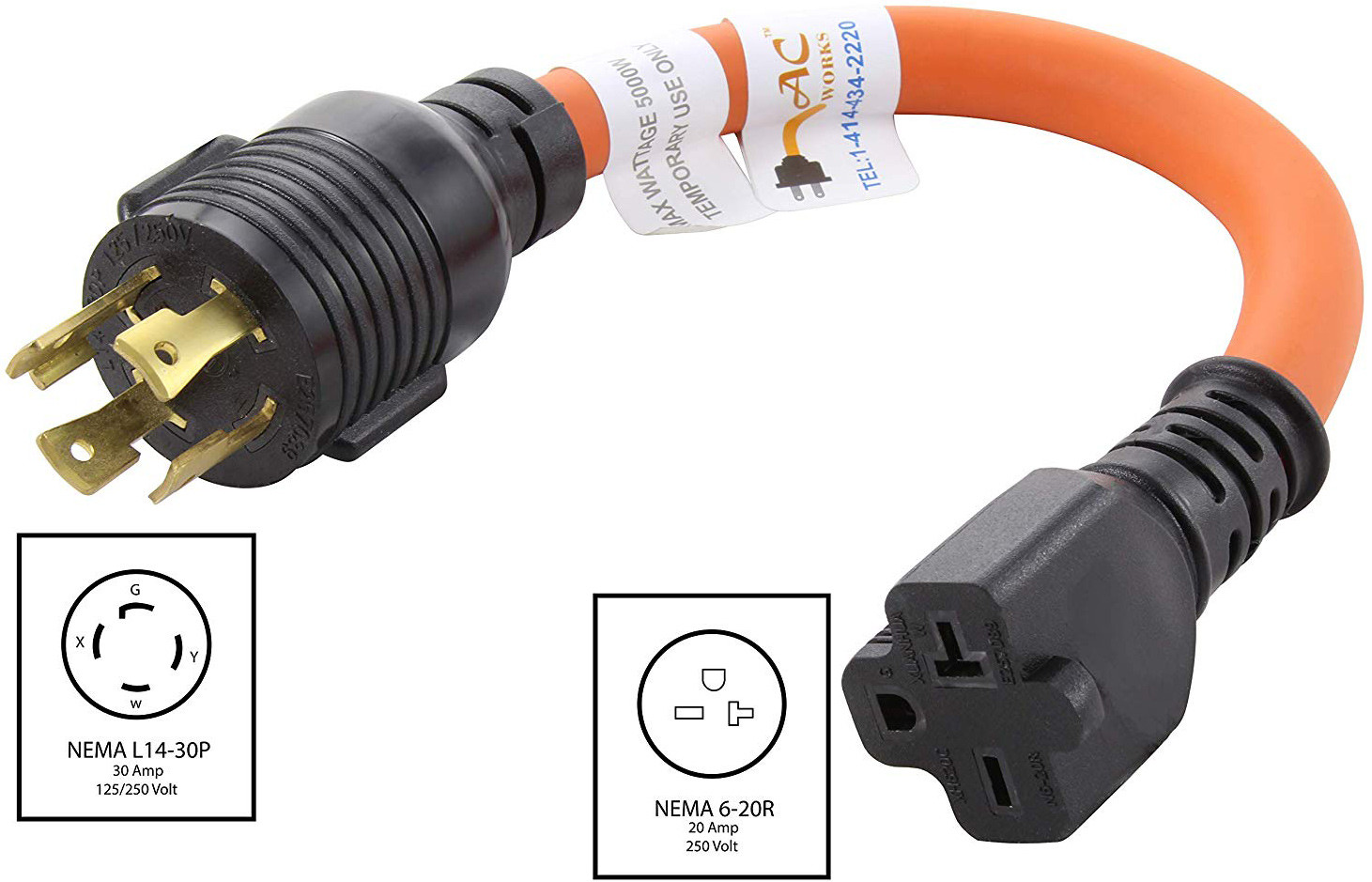

Manufacturer Base L14-30P 30A Locking Plug to 6-15/20R T Blade Connector
L14-30P to 6-20R T Blade Connector Adapter Cord, L14-30P 30 Amp 125/250V Locking Plug to 6-15/20R T Blade 15/20A 250 Volt Connector Custom Length Cable
- Plug type: 4-Conductor NEMA 14-30P
- Receptacle: NEMA 6-15R, 6-20R
- Standard:NEMA standard code
- Approvals:UL, cUL
- Electricity:20 Amp, 125/250 Volt
- Number of Wires:2 pole 3 wires
- Cable length:1FT,3FT, 5FT or custom length
- Quality System:ISO9001:2008
- Color:Custom color,Orange is normal
- Outer Mold Material:PVC, Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard 12, 10 gauge cable
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:XH620C
L14-30P 30 Amp 125/250V Locking Plug to 6-15/20R T Blade 15/20A 250 Volt Connector, Plug Standard America NEMA 14-30P plug Maximum Electric Current rating 20A Maximum Voltage 125/ 250V Number of Poles and Wires 2 poles, 3 wires Grounded Plug, Receptacle Standards Single Outlet Max 20 Amp 125/ 250 Volt AC, 2 Pole 3 Wire Grounding socket NEMA 6-20R T-blade NEMA 6-15R.UL listed,100% copper wire custom length generator adapter cord sets.
NEMA L14-30P to NEMA 6-15/20R T Blade,NEMA L14-30P 30Amp 125/250V 4Prong Locking Plug
NEMA 6-15/20 15/20Amp T Blade 250V Female Connector,Overall 1FT ,3FT,5Ft and Custom length and Gauge Cable SJTW 300 Volt ,STW 10/3 600Volt Jacket with 30Amp wire

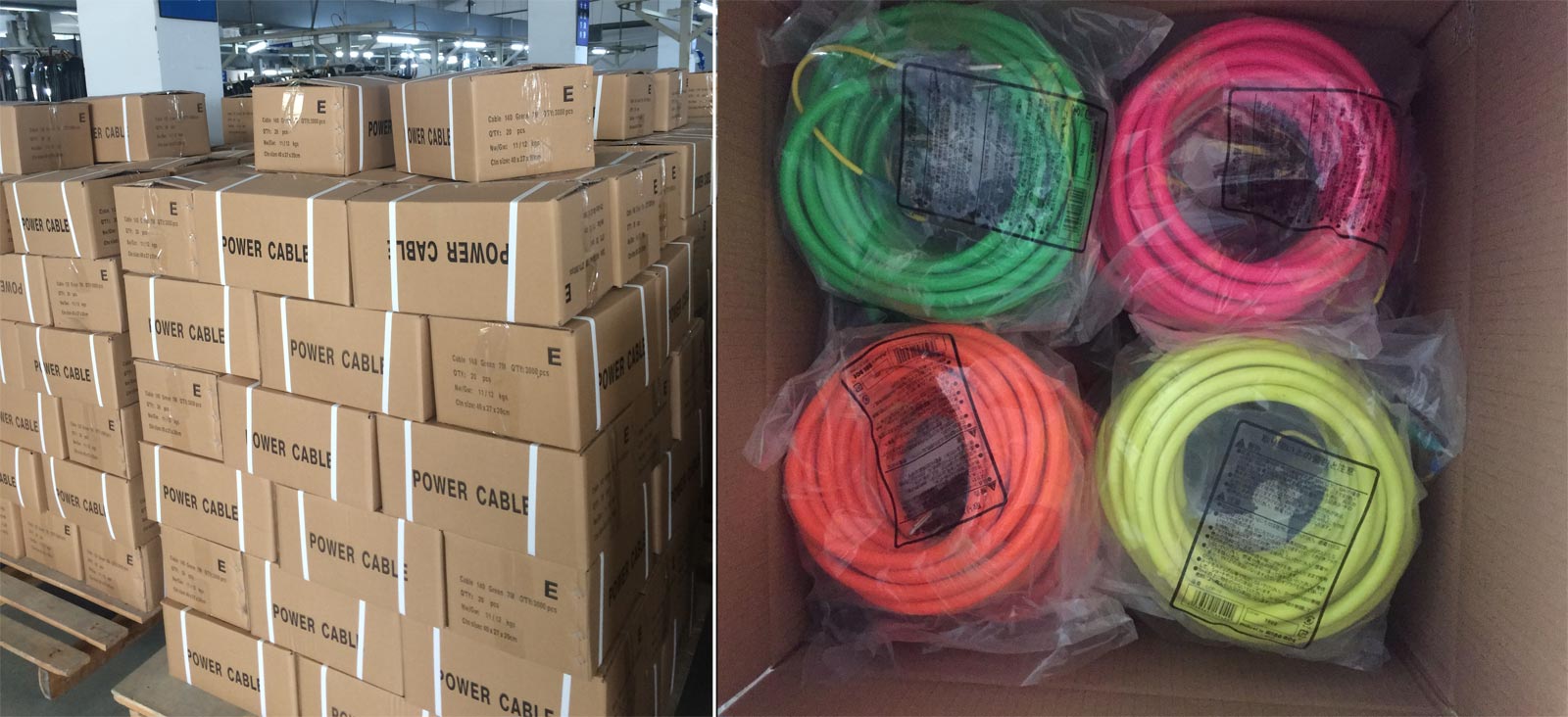

Extension Cord Package
Bulk package and custom artowrks on paper cards ,printing and out cartons are normal packages for L14-30P to 6-20R T Blade Connector Adapter Cord
