Manufacturer Base L14-30P Generator Adapter Power Cord Set,NEMA 5-20R 4 Outlet Custom Length Cable

  • Samples date: 7 Days,Free with freight collect
  • MOQ:500 Pcs
  • Production order shipping date:20-25 days
  • Shipping Terms: By Air, Sea
  • Payment Terms: Wire Transfer, Paypal
  • Packing:Export cartons,pallets
Tags:
Share

L14-30P Generator Adapter Power Cord Set

Manufacturer Base L14-30P Generator Adapter Power Cord Set,NEMA 5-15R, 5-20R 4 Outlet Molded with Custom Length Cable

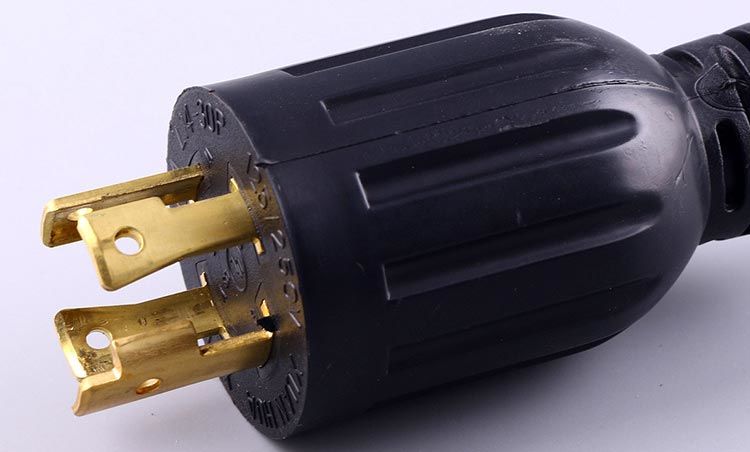

  • Plug type: 4-Conductor NEMA 14-30P

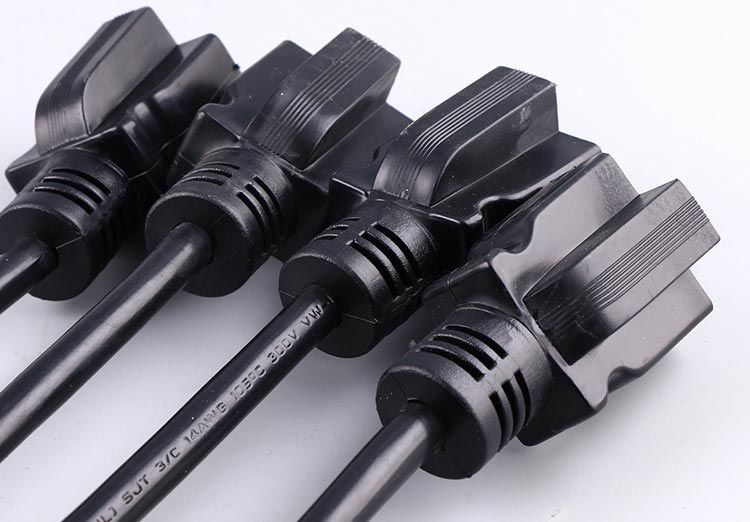

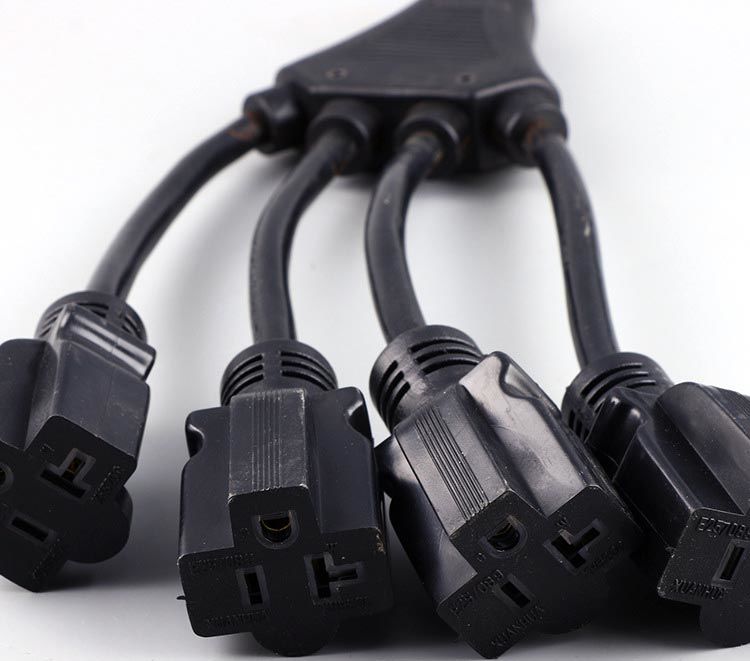

  • Receptacle: NEMA 5-15R, 5-20R

  • Standard:NEMA standard code

  • Approvals:UL, cUL

  • Electricity:20 Amp, 125/250 Volt

  • Number of Wires:3 pole 4 wires

  • Cable length:1FT,3FT, 5FT or custom length

  • Quality System:ISO9001:2008

  • Color:Custom color,Orange is normal

  • Outer Mold Material:PVC, Rubber

  • Plug Insert Material:PBT,ABS

  • Blade Material:Nickel coated Brass

  • Cable Specifications:Standard 12, 10 gauge cable

  • Environmental Certifications:RoHS, REACH, PAHS

  • Model Number:XH103/XH520

L14-30P Generator Adapter Power Cord Set, Plug Standard America NEMA 14-30P plug  Maximum Electric Current rating 20A Maximum Voltage 125/ 250V Number of Poles and Wires 3 poles, 4 wires Grounded Plug, Receptacle Standards Single Outlet Max  20 Amp 125Volt AC, 2 Pole 3 Wire Grounding socket NEMA 5-20R T-blade NEMA 5-15R.UL listed,100% copper wire custom length generator adapter cord sets. Converts a Nema L14-30P 240V 30 Amp. Twist Lock plug into Nema 5-15/20R 120V RV adapter: 20A receptacles.

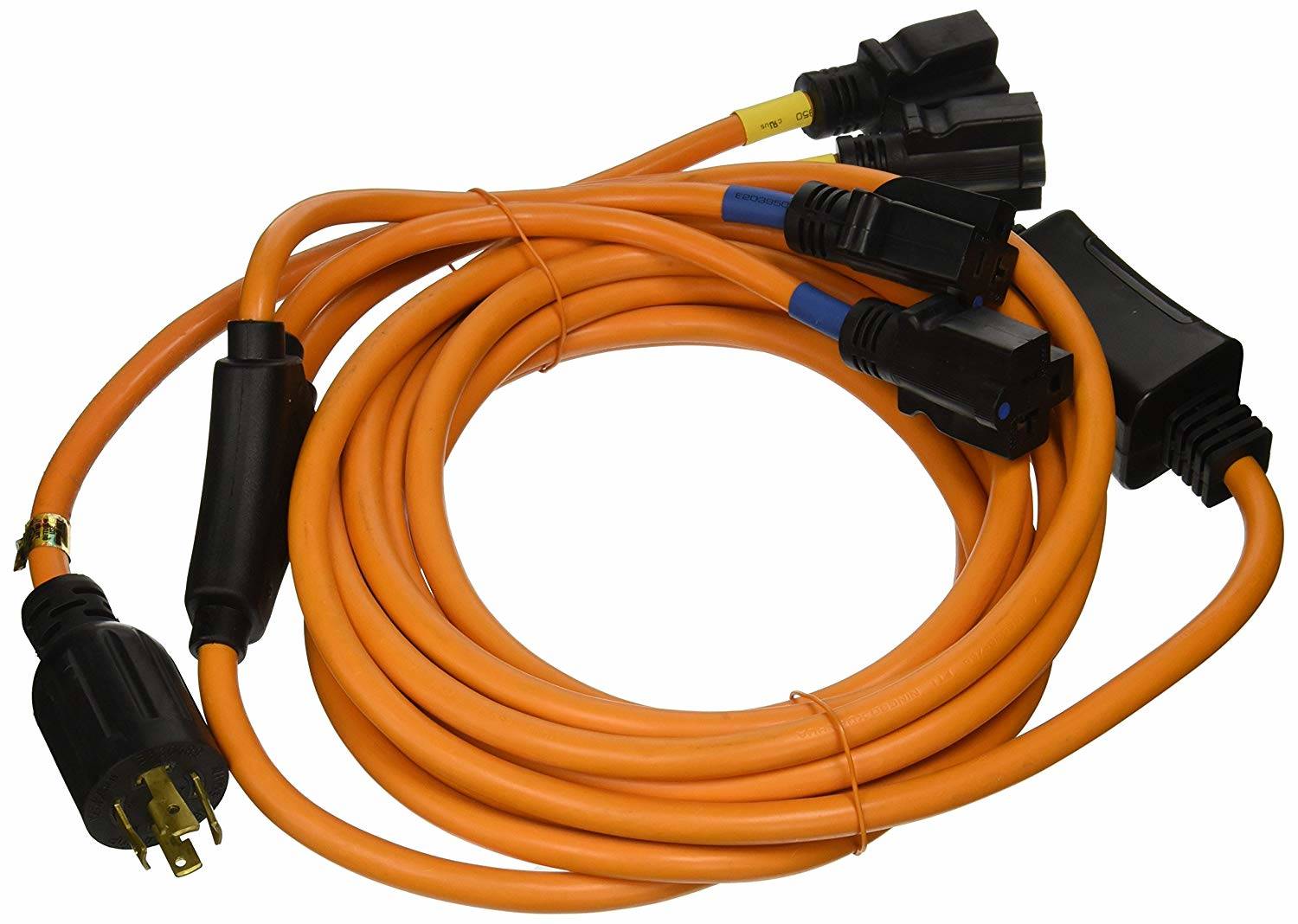

L14-30P-Generator-Adapter-Power-Cord-SetNEMA-5-20R-4-Outlet-with-Inline-Circuit-Breaker.jpg





Generator Distribution Cord Package

Bulk package and custom artowrks on paper cards ,printing and out cartons are normal packages for L14-30P Generator Adapter Power Cord Set


Input: L14-30P 30A 125/250 Locking Plug Output: 4 x 5-15R / 5-20R 15/20A (Standard Wall outlets) 25-Foot 12-Gauge Cord – Heavy Duty UL-Listed Circuit Breaker Protection – reduces appliance damage from voltage drop Versatile Design – fits all generators with a 30-Amp outlet (NEMA L14-30) Maximum Wattage Capacity: 7500 Watt.
