30Amp 4-Prong Locking Generator Distribution Cord L14-30 to 4 * 15/20A
Manufacturer Base L14-30P 30Amp 4-Prong Locking Generator Distribution Cord (1.5FT or Custom Length L14-30 to Four 15/20A Household)
- Plug type: 4-Conductor NEMA 14-30P
- Receptacle: NEMA 5-15R, 5-20R
- Standard: NEMA standard code
- Approvals: UL, cUL
- Electricity:20 Amp, 125/250 Volt
- Number of Wires:3 poles 4 wires
- Cable length:1FT,3FT, 5FT or custom length
- Quality System:ISO9001:2008
- Color: Custom color, Orange is normal
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications:Standard 12, 10 gauge cable
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number:XH103/XH520B, XH103-XH520-B(Overcurrent Protector)
30Amp 4-Prong Locking Generator Distribution Cord, Plug Standard America NEMA 14-30P plug Maximum Electric Current rating 20A Maximum Voltage 125/ 250V Number of Poles and Wires 3 poles, 4 wires Grounded Plug, Receptacle Standards Single Outlet Max 20 Amp 125Volt AC, 2 Pole 3 Wire Grounding socket NEMA 5-20R T-blade NEMA 5-15R.UL listed 100% copper wire custom length generator adapter cord sets.

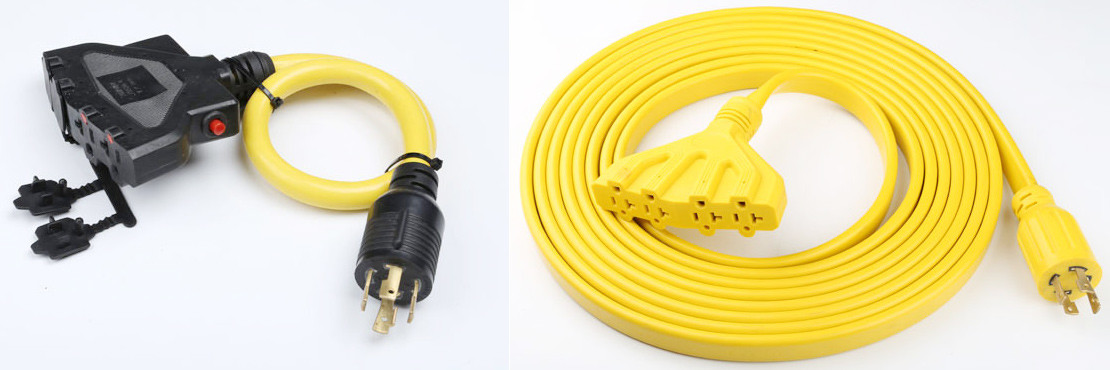

L14-30P Generator Extension Cord Set NEMA 5-20R 3 Outlet with Circuit Breaker
L14-30P Generator Extension Cord Set NEMA 5-20R 3 Outlet with Circuit Breaker and Reset
Extension Cord Package
Bulk package and custom artworks on paper cards, printing and out cartons are normal packages for 30Amp 4-Prong Locking Generator Distribution Cord
Flexible multi-outlet adapter, This locking power strip cord is 1.5FT in length and is a NEMA L14-30P to (4) NEMA 5-15/20R T-Blade Household Female Connectors. NEMA L14-30P, 30 Amp, 125/250 Volt, 4-Prong Locking Male Plug,Four NEMA 5-15/20, 20 Amp, T-blade Household Connectors,Power Distribution Cord,L14-30P to (4) 5-15/20R Adapters,heavy duty orange cable jacket,NEMA L14-30R locking female connector,NEMA L14-30 locking plug,Heavy Duty,STW, 10/4, 600 Volt heavy duty outdoor jacket with 30 Amp copper wire. Fits a locking 30 Amp NEMA L14-30R outlet. These outlets are mainly found in generators.
