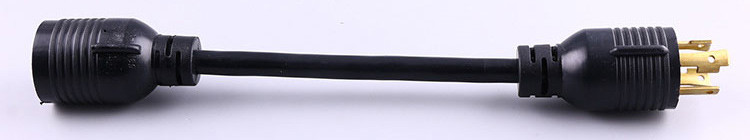

L14-30 Locking Generator Extension Cord Molded with PVC, Rubber TPE Power Cable
L14-30 Locking Generator Extension Cord 30-Amp 125/250 Volt Molded with PVC, Rubber TPE Custom Long Cables, UL Listed
- Plug type: Twist lock type L14-30P
- Receptacle: Single Outlet L14-30R
- Standard:NEMA standard code
- Approvals:UL, cUL
- Electricity:20A,125V / 250V
- Number of Wires:3 pole 4 wires
- Cable length:1 meters, 3 meters,5 meters, custom length
- Quality System:ISO9001:2008
- Color:Custom color,Black is normal
- Outer Mold Material:PVC, Rubber, TPE
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:12,10 gauge
- Environmental Certifications:RoHS, REACH, PAHS
- Model Number:LA047A/LA048A
L14-30 30A 125V/250 Extension Cord, Plug Standard America 14-30P twist lock plug Maximum Electric Current rating 30A Maximum Voltage 250V Number of Poles and Wires 3 poles, 4 wires Grounded Plug, Receptacle Standards Single Outlet Max 30 Amp 125/250 Volt AC, 3 Pole 4 Wire Grounding socket.

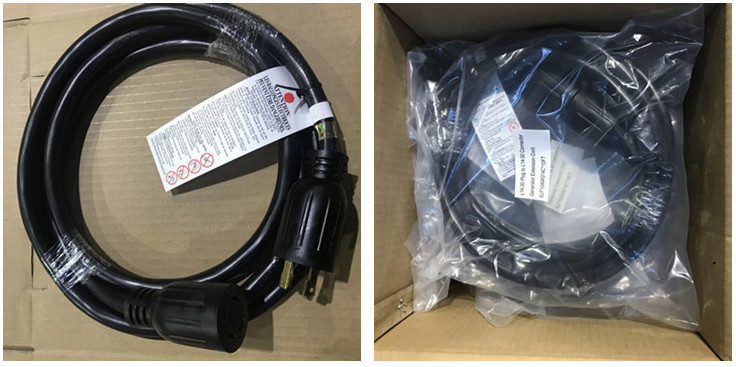

Extension Cord Package
Bulk package and custom artowrks on paper cards ,printing and out cartons are normal packages for L14-20 Extension Cord.

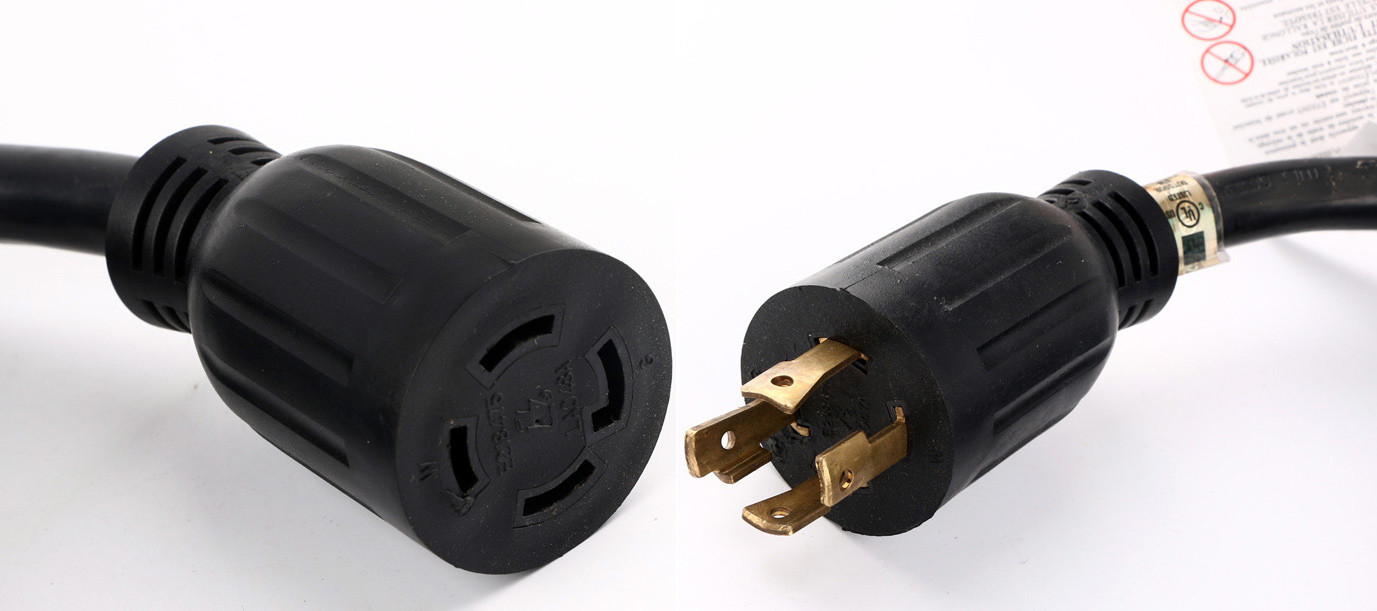

Plug Type: NEMA L14-30P. The NEMA L14-30P is a 4 Wire 4 Blade grounded plug featuring 4 Blades arranged in a tight circular pattern rated up to 250V AC and 30 Amps.The plug locks to the connector by twisting into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection;

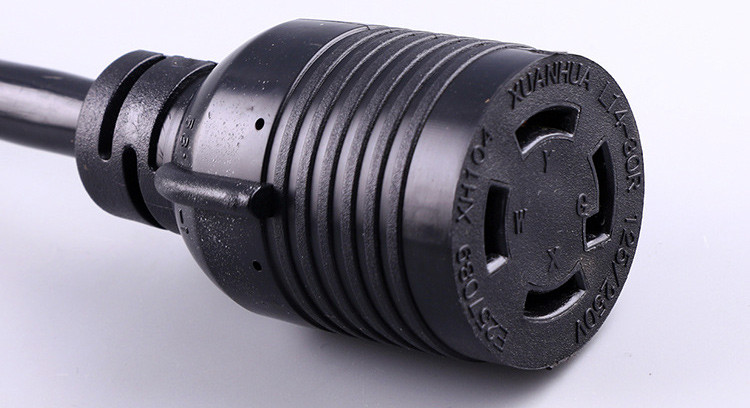

Connector Type: NEMA L14-30R. The NEMA L14-30R (female) is a 4 Wire 4 Blade grounded connector featuring 4 Blades arranged in a tight circular pattern rated up to 250V AC and 30 Amps. The plug locks to the connector by twisting into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection.Cordage Type: 12 /10 awg 4 Conductor cable with Approvals: UL, cUL,HKTC is a leading manufacturer of custom made to order power cables products.
