L5-15 15A 125V Extension Cord – Custom Long Power Supply Cords
L5-15 15A 125V Extension Cord locking type plug and receptacle molded with custom length 16 / 14 / 12 Gauge, Color Power Cords, UL Listed
Plug type: Twist lock type L5-15P
Receptacle: Single Outlet L5-15R
Standard: NEMA standard code
Approvals: UL, cUL
Electricity:15A,125V
Number of Wires:2 poles 3 wires
Cable length:1 meter, 3 meters,5 meters, custom length
Quality System: ISO9001:2008
Color: Custom color, Black is normal
Outer Mold Material: PVC
Plug Insert Material: PBT, ABS
Blade Material: Nickel Coated Brass
Cable Specifications:16WG, 14,12 gauge
Wire Jacket Material: PVC, Rubber, TPE
Environmental Certifications: RoHS, REACH, PAHS
Model Number: LA060A/LA061A
0L5-15 15A 125V Extension Cord, Plug Standard America 5-15P twist lock plug Maximum Electric Current rating 15A Maximum Voltage 125V Number of Poles and Wires 2 poles, 3 wires Grounded Plug, Receptacle Standards Single Outlet Max 15 Amp 125 Volt AC, 2 Pole 3 Wire Grounding socket.

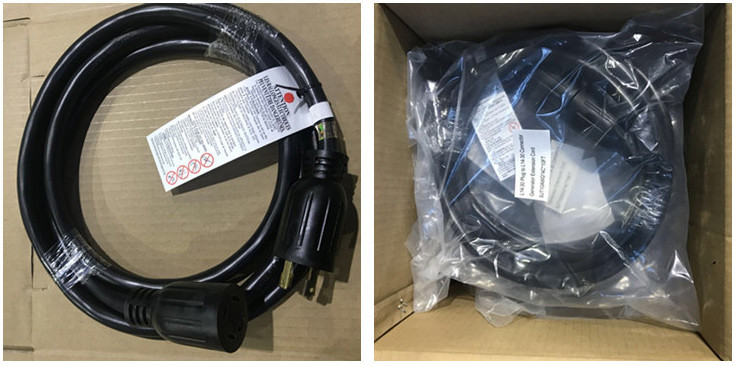

Extension Cord Package
Bulk package and custom artworks on paper cards, printing and out cartons are normal packages for L5-15 Extension Cord.
Plug Type: NEMA L5-15P. The NEMA L5-15P is a 3 Wire 3 Blade grounded plug featuring 3 Blades arranged in a tight circular pattern rated up to 125V AC and 15 Amps. The plug locks to the connector by twisting it into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection;
Connector Type: NEMA L5-15R. The NEMA L5-15R (female) is a 3 Wire 3 Blade grounded connector featuring 3 Blades arranged in a tight circular pattern rated up to 125V AC and 15 Amps. The plug locks to the connector by twisting it into place. Locking cords are typically used in industrial applications to ensure that accidental power loss does not occur due to a loose connection. Cordage Type: 16/14/12 AWG 3 Conductor cable with Approvals: UL, cUL, HKTC is a leading manufacturer of custom made to order power cables products.
