IEC 60320 C7 Power Cords Receptacle
- Plug type: IEC 320 C7 receptacle
- Standard: IEC 60320 C7
- Approvals: VDE, CE,SAA,PSE,UL, cUL
- Electricity:2.5A,250V
- Number of Poles and Wires:2 poles 3 wires earthed
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination, Standard, and IEC plugs
- Quality System: ISO9001:2008
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS
- Model Number: QT8, ST1

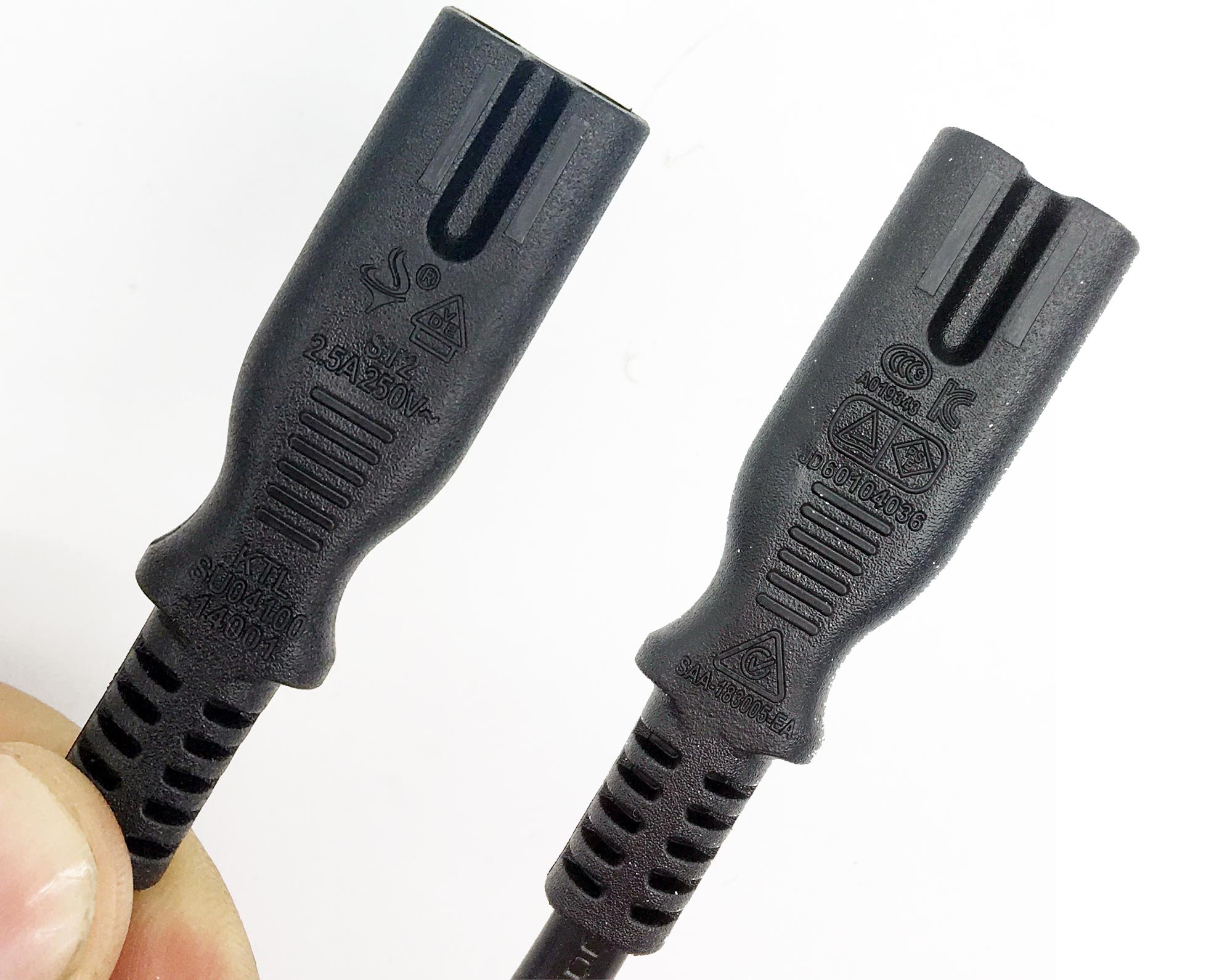

IEC C7 Power Cords for most countries in the world. The IEC 60320-C7 two-prong power cord receptacle is often referred to as the “figure 8” power cord receptacle. These IEC C7 power cords are commonly used in various applications, including electric shavers, portable electronics, notebook computers, CD and DVD players, kitchen appliances, and game systems such as PlayStation II and Wii. Available in both polarized (one side flat) and non-polarized versions with the non-polarized being the far more popular power cord style.
